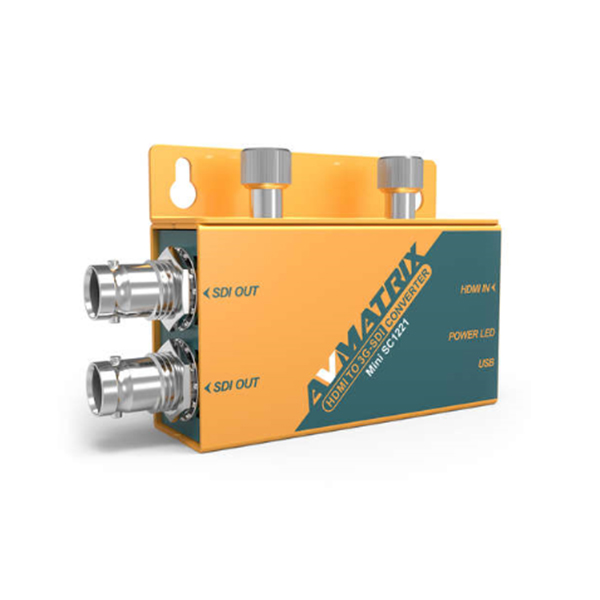

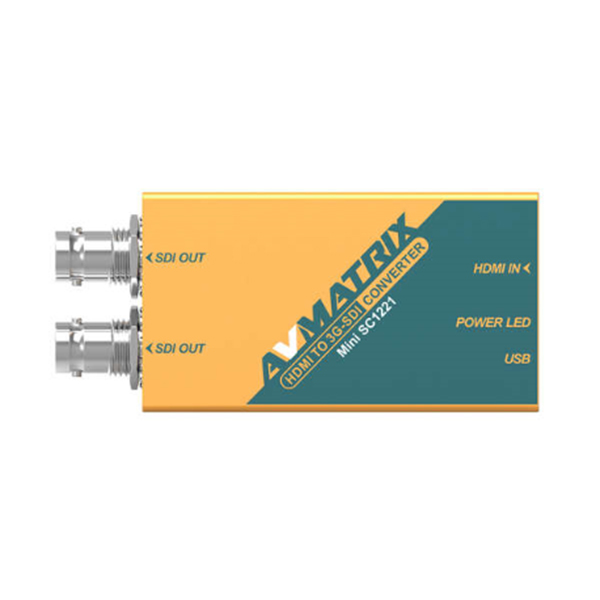

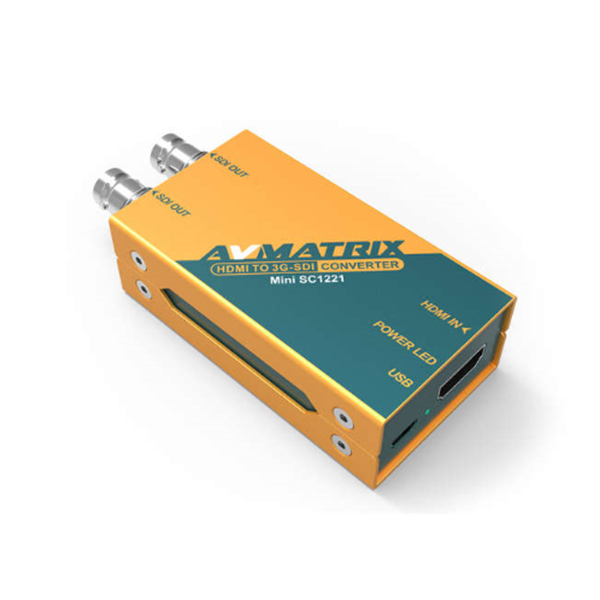

Mini SC1221

HDMI to 3G-SDI Converter

The Mini SC1221 is a Pocket-size broadcast Converter,
it converts HDMI input signal to dual SDI signal.
it is very convenient for users with the full size SDI and HDMI connectors.
- HDMI to 3G-SDI Converter
- Size : 74 x 41 x 23mm

Features



  • 1×HDMI input, 2×3G-SDI output
  • SDI input signal automatic detection and configuration
  • LED indicators for power and state of SDI input signal
  • 3.3-5V Wide voltage



Born for Broadcast


Although it's a pocket-size converter, it is very convenient for users with the full size SDI and HDMI connectors; SD/HD/3G-SDI formats as well as level A and level B are also supported, up to 1080P 60Hz. Complying with EMC test, the steady and reliable performance makes it support 7×24h uninterrupted working without any lag or delay.

Powered Anywhere


Featured with universal USB power solution design, avmatrix mini converter can be powered by Micro USB connection; it can not only connect with DC power plug pack, but also get power from power bank, laptop or computer. The low power consumption is incredible, such as a 10,000mAh power bank can supply a more than 24-hour uninterrupted working time.

Pocket Size and Easy to Mount


Miniature design makes it portable for indoors and outdoors. It's possible to put into pocket and take to anywhere. With a convenient and detachable mounting bracket, it is also available in different application scenarios.

INPUT
 HDMI Video Input
HDMI type A ×1
OUPUT SDI VideoOutput
SD/HD/3G-SDI ×2
SDI FORMATS SD Format Support
525i 59.94
625i 50
HD Format Support
720p 50/59.94/60
1035i 59.94/60
1080i 50/59.94/60
1080p 23.976/23.98/24/25/29.97/30/50/59.94/60
SDI Video Rate
SD/HD/3G-SDI
SDI Compliance
SMPTE292M/SMPTE/259M/SMPTE 424M
SDI Color Space and Precision
YUV 4:2:2
HDMI FORMATS HDMI Format Support
480i 60
576i 50
720p 50/59.94/60
1035i 59.94/60
1080i 50/59.94/60
1080p 23.976/23.98/24/25/29.97/30/50/59.94/60
HDMI Color Space and Precision
 RGB 4:4:4, YUV 4:4:4 & YUV 4:2:2
SIZE(W×D×H) 74mm × 41mm × 23mm
POWER Power
Micro USB
Power Consumption
2W
Voltage Range
3.3V~5V
ENVIRONMENT Operating Temperature
-20℃~60℃
Storage Temperature
-30℃~70℃
Relative Humidity
0%~90% non-condensing
WARRANTY 3 year limited warranty
