FA1046-NP/C/T

10.4˝ LED Touch Screen Monitor

4 or 5 wire resistive touch panel;
HDMI/DVI input;
With VGA input;
With AV input;
With touch screen operation.

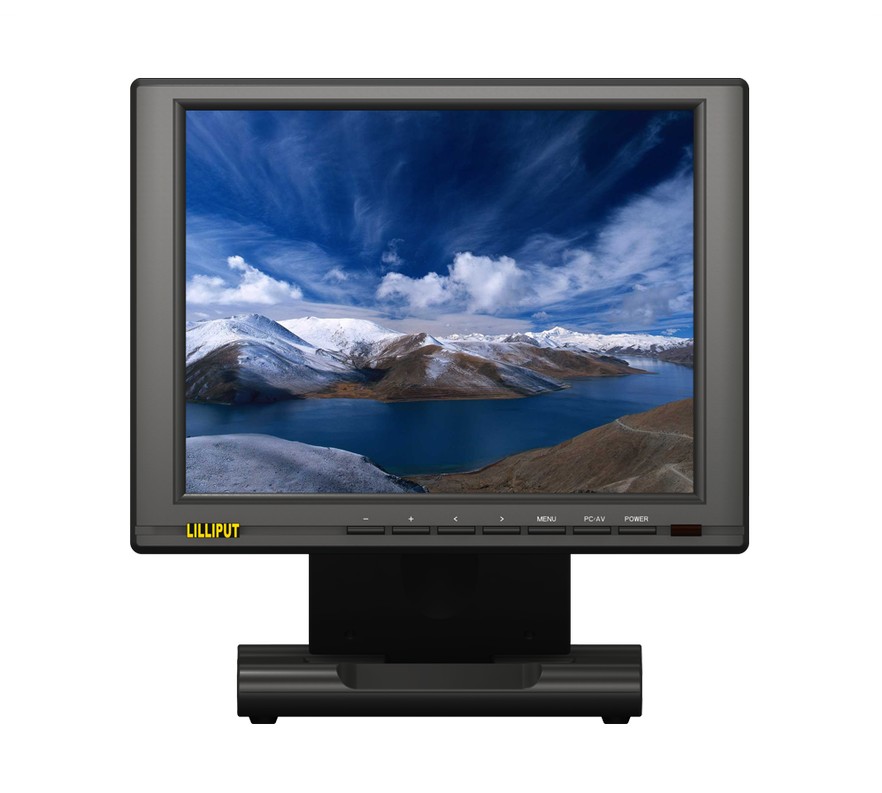

The Lilliput FA1046-NP/C/T is a 10.4 inch 4:3 LED touch screen monitor with HDMI, DVI, VGA and video-in.

Note: FA1046-NP/C without touch function,
? ? ? ? ? ?FA1046-NP/C/T with touch function.

10 inch 4:3 LCD

10.4 inch monitor with standard aspect ratio

The FA1046-NP/C/T is a 10.4 inch monitor with a 4:3 aspect ratio, similar to the regular 17" or 19" monitor you use with your? desktop computer. The standard 4:3 aspect ratio is well suited to applications that require a non-wide screen aspect ratio, such as CCTV monitoring and certain broadcast applications.

HDMI, VGA, composite

Connection friendly: HDMI, DVI, VGA, YPbPr, Composite and S-Video

Unique to the FA1046-NP/C/T, it also features a YPbPr video input (which is used for receiving analogue component signals) and an S-Video input (popular with legacy AV equipment). We recommend the FA1046-NP/C/T to customers who plan to use their monitor with a range of AV equipment, as this 10.4 inch monitor is certain to support it.

10 inch touch screen model available

Touch screen model available

The FA1046-NP/C/T is available with a 4-wire resistive touch screen. Lilliput continually stocks both non-touch screen and touch screen models, so customers can make a choice that best suits their application.

Ideal for CCTV monitor applications

Perfect CCTV monitor

You won't find a more suitable CCTV monitor than the FA1046-NP/C/T. The 4:3 aspect ratio and wide selection of video inputs means this 10.4 inch monitor will work with any CCTV equipment, including DVRs.

  Display Screen   10.4" LED backlit (4:3)
  Resolution   800×600, suport up to 1920 x 1080
  Color System   PAL-4.43, NTSC-3.58
  Touch Panel   4-wire resistive touch panel (5-wire for optional)
  Contrast Ratio   400:1
  Brightness   250cd/㎡
  Viewing Angle   130°/ 110°(H/V)
  Input Signal   AV1, AV2, YPbPr, S-video, VGA, HDMI, DVI
  Audio Output   ≤1.2W
  Input Voltage   DC 12V
  Power Consumption   ≤8W
  Dimension(LWD)   226 × 200 × 39 mm

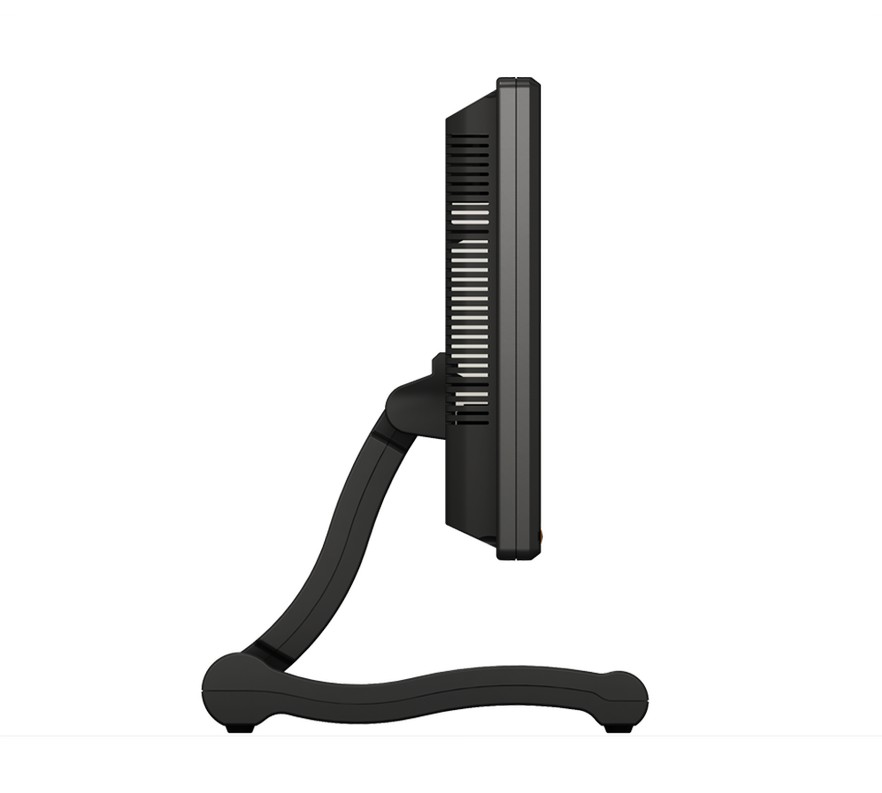

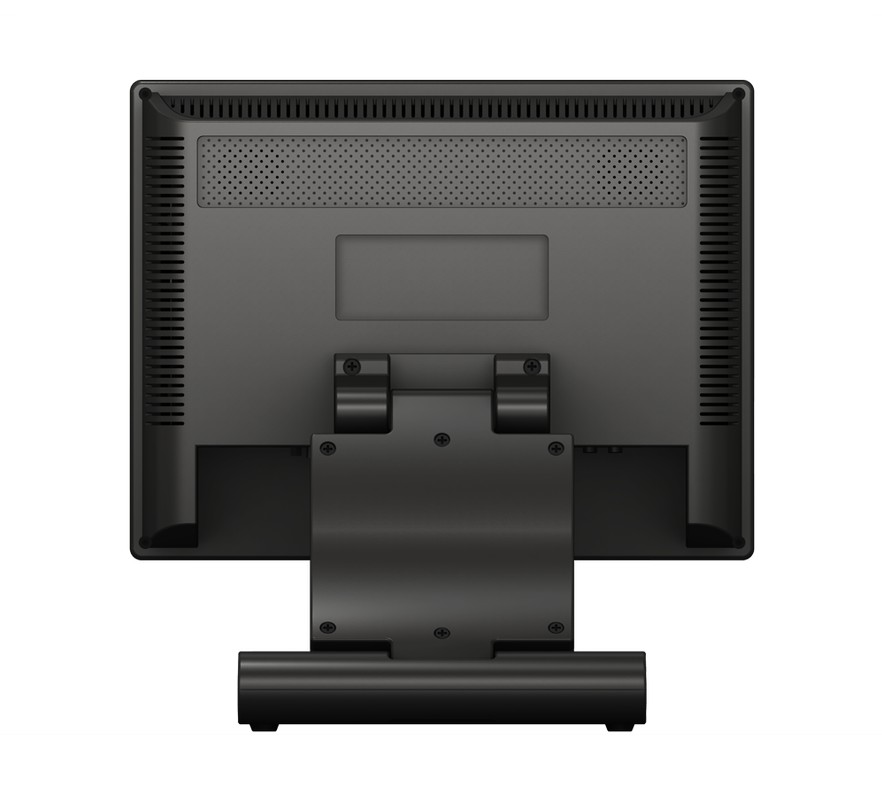

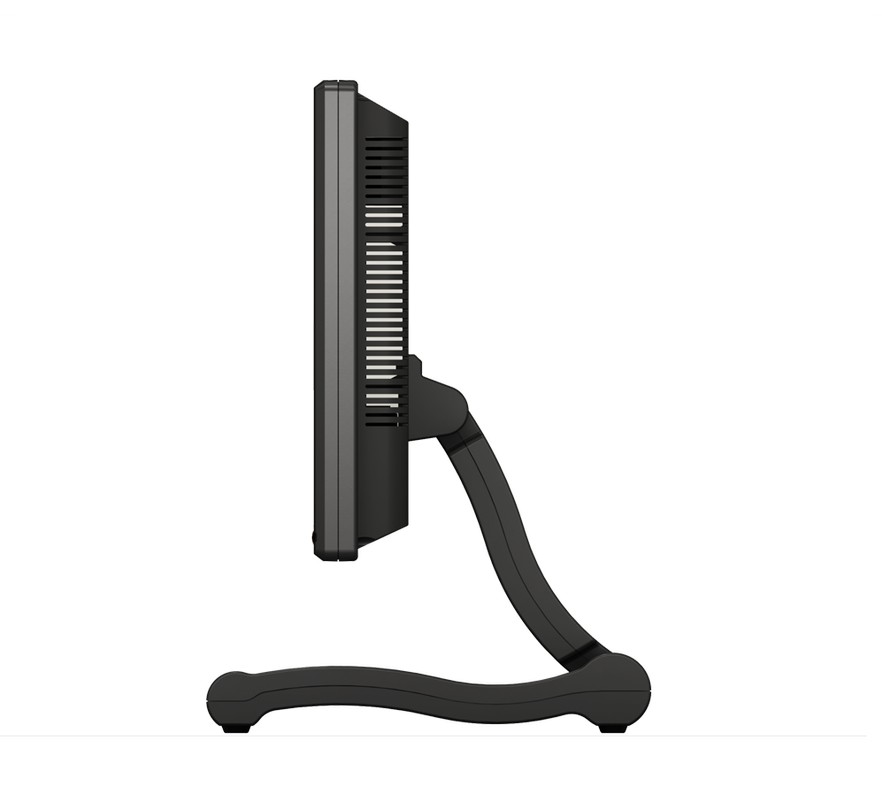

  260 × 200 × 70 mm (with bracket)
  Weight   1554g (with bracket)
