809-80NP/C/T

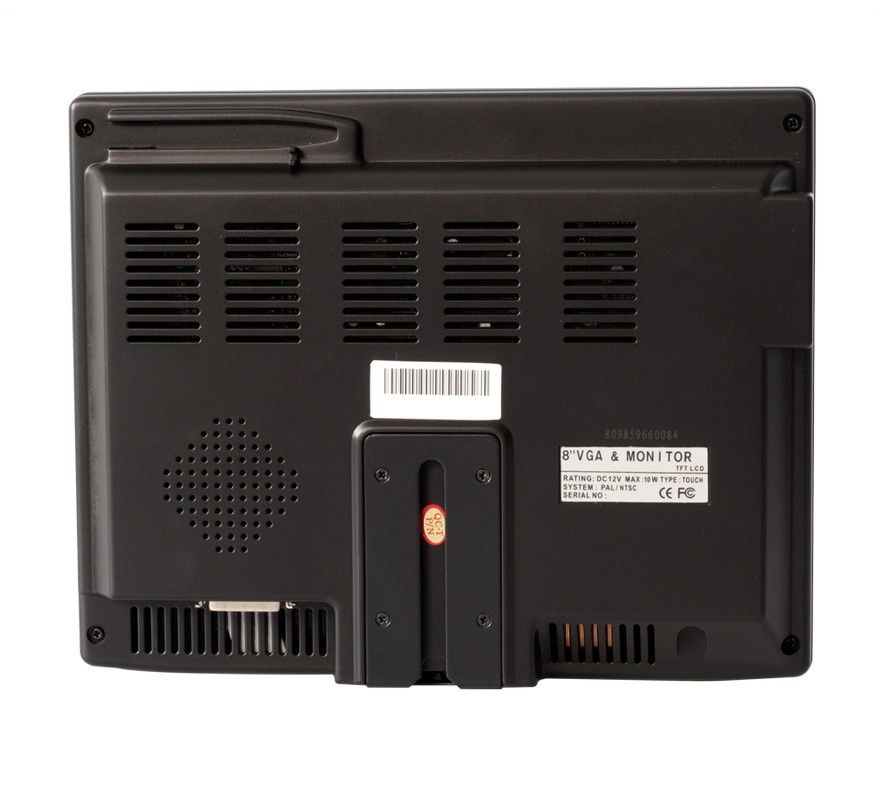

8˝ Touchscreen VGA Monitor

Touch screen control;
With VGA interface, connect with computer;
AV input: 1 audio, 2 video input;
High contrast: 500:1 ;
Built-in speaker;
Built-in multi-language OSD;

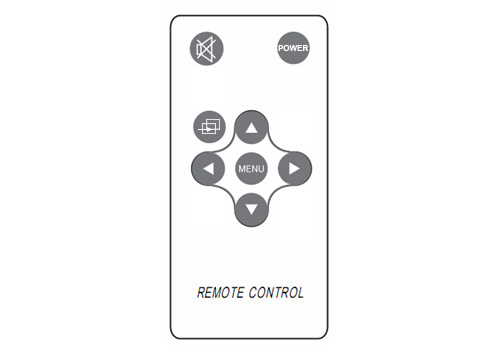

Remote control.

Touch screen control;
With VGA interface, connect with computer;
AV input: 1 audio, 2 video input;
High contrast: 500:1 ;
Built-in speaker;
Built-in multi-language OSD;
Remote control.

Note: 809-80NP/C without touch function.
        809-80NP/C/T with touch function.

??Display Screen ??8" LED backlit (4:3)
??Resolution ??800×600, surport up to 1920×1080
??Color System ??PAL-4.43, NTSC-3.58?
??Touch Panel ??4-wire resistive touch panel (5-wire for optional)
??Contrast Ratio ??500:1
??Brightness ??250cd/㎡
??Viewing Angle ??140°/120°(H/V)

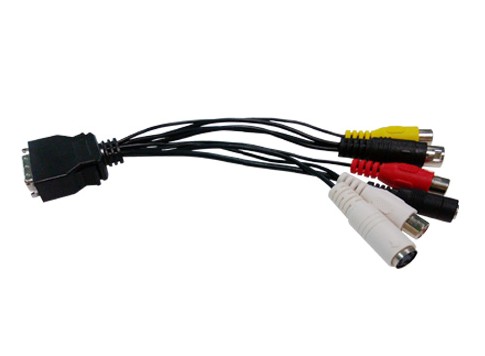

??Input Signal ??AV1, AV2, VGA
??Audio Output ??≥100mW

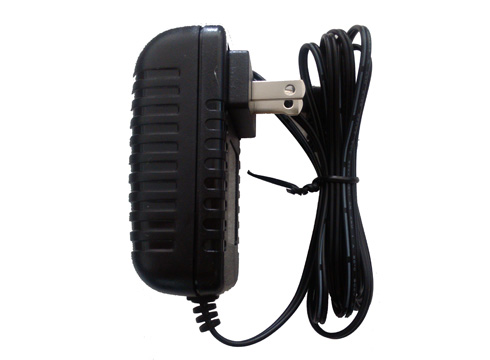

??Input Voltage ??DC 11-13V
??Power Consumption ??≤13W
??Dimension(LWD) ??206 × 163 ×?39.5 mm
??Weight ??646g
