HR702-NP/C/T

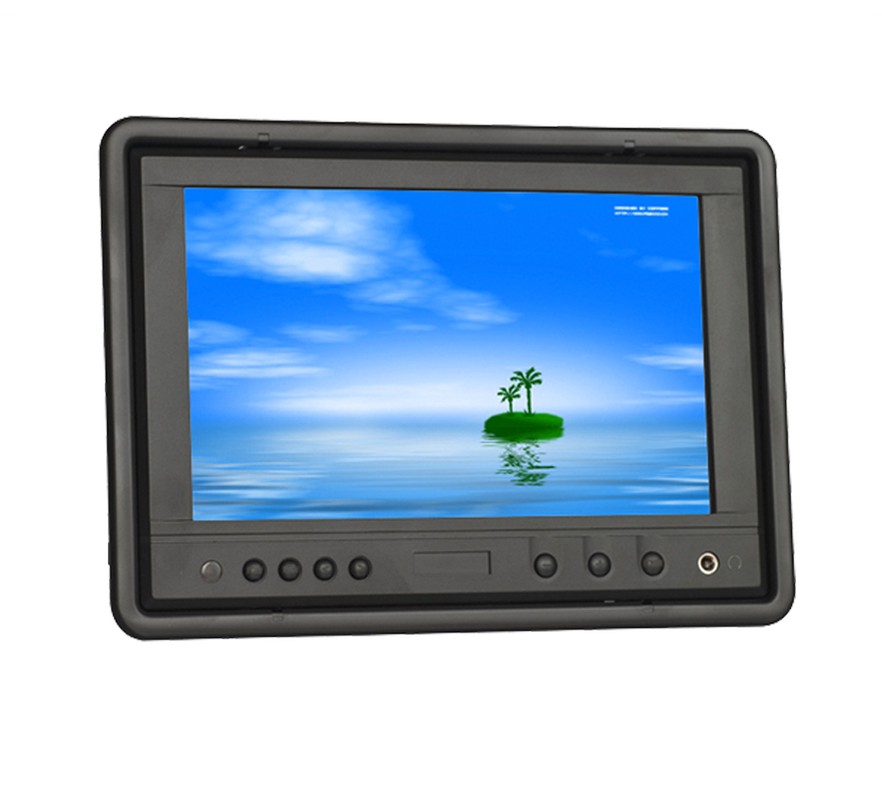

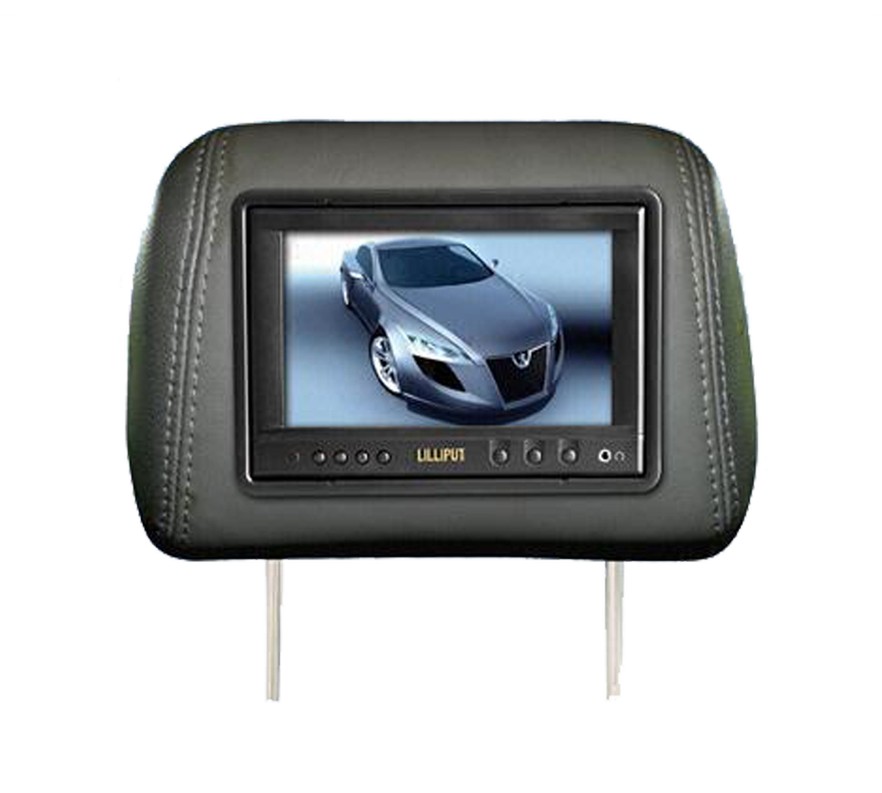

7˝ Headrest Touchscreen VGA Monitor

Headrest touch screen control;

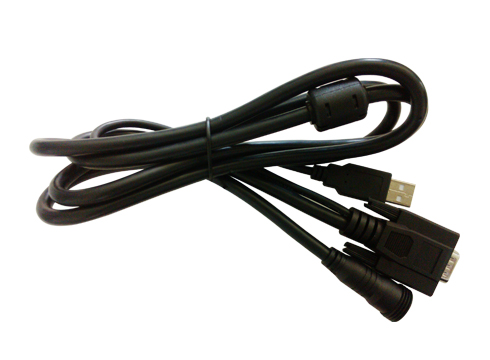

With VGA interface, connect with computer;

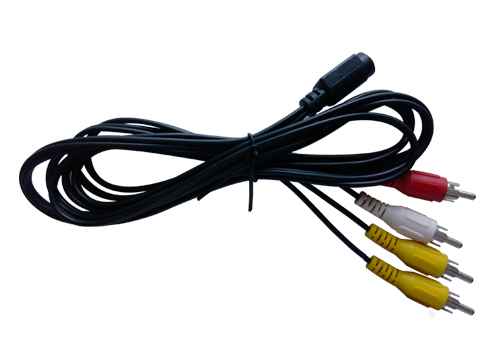

AV input: 1 audio, 2 video input;
High contrast: 500:1 ;
Built-in speaker;
Built-in multi-language OSD;

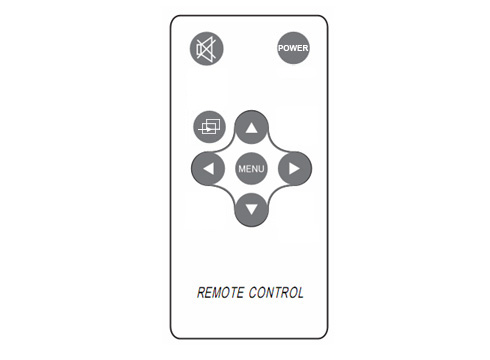

Remote control.

Headrest touch screen control;
With VGA interface, connect with computer;
AV input: 1 audio, 2 video input;
High  contrast: 500:1 ;
Built-in speaker;
Built-in multi-language OSD;
Remote control.

Note: HR702-NP/C without touch function.
           HR702-NP/C/T with touch function.

  Display Screen   7" LED backlit (16:9)
  Resolution   800 x 480, suport up to 1920 x 1080

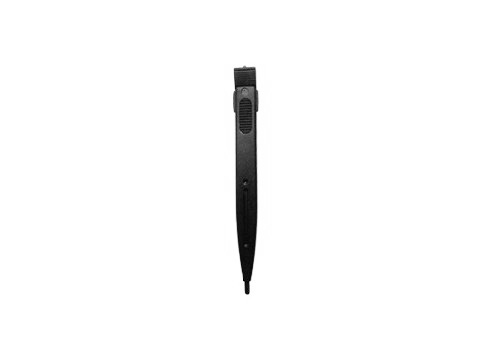

  Touch Panel   4-wire resistive
  Contrast Ratio   500:1
  Brightness   300cd/㎡
  Viewing Angle   140°/120°(H/V)
  Input Signal   VGA, AV1, AV2

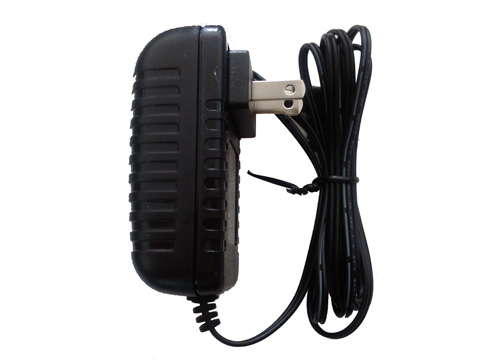

  Input Voltage   DC 11-13V
  Power Consumption   ≤8W
  Audio Output   ≥100mW
  Dimension(LWD)   200 × 143 × 29 mm
  Weight   500g
