779GL-70NP/C/T

7 inch Capacitive Touch Monitor

- Multi-touch capacitive screen,
- Lux auto brightness,
I- ntegrated dustproof front panel,
I- /O control interface,
- HDMI, DVI, VGA & AV inputs,
- High contrast: 500:1,
- High brightness: 400cd/m².
Features:
  • 10-point touch capacitive screen(OS: Windows 7 or above, Android).
  • Lux auto brightness,
  • Integrated dustproof front panel,
  • I/O control interface,
  • High contrast: 500:1,
  • High brightness: 400cd/m².

Capacitive Touch Panel (779-70NP/C/T only)

Support 10-point allows people flip and zoom in/out picture via fingers, High precision fast response, and have a longer life, Better transmittance.



zoom out                                                                              zoom in

Lux Auto Brightness (optional)
A light sensor designed to detect ambient lighting conditions adjusts the panel's brightness automatically, which makes viewing more conveniently & saves more power.





under hard light                                                               under weak light

I/O control interface

The interface has functions such as connecting with reverse trigger line in car reversing system, and control computer host to switch on/off, etc. Functions also can be customized to meet different demands.





                      car reversing                                                           trigger reversing image

  Display Screen   7" LED backlit, 16:9
  Resolution   800 x 480, 8bit, suport up to 1920 x 1080
  Touch Panel   Capacitive Touch (optional)
  Contrast Ratio   500:1
  Brightness   400cd/㎡
  Viewing Angle   140°/120°(H/V)

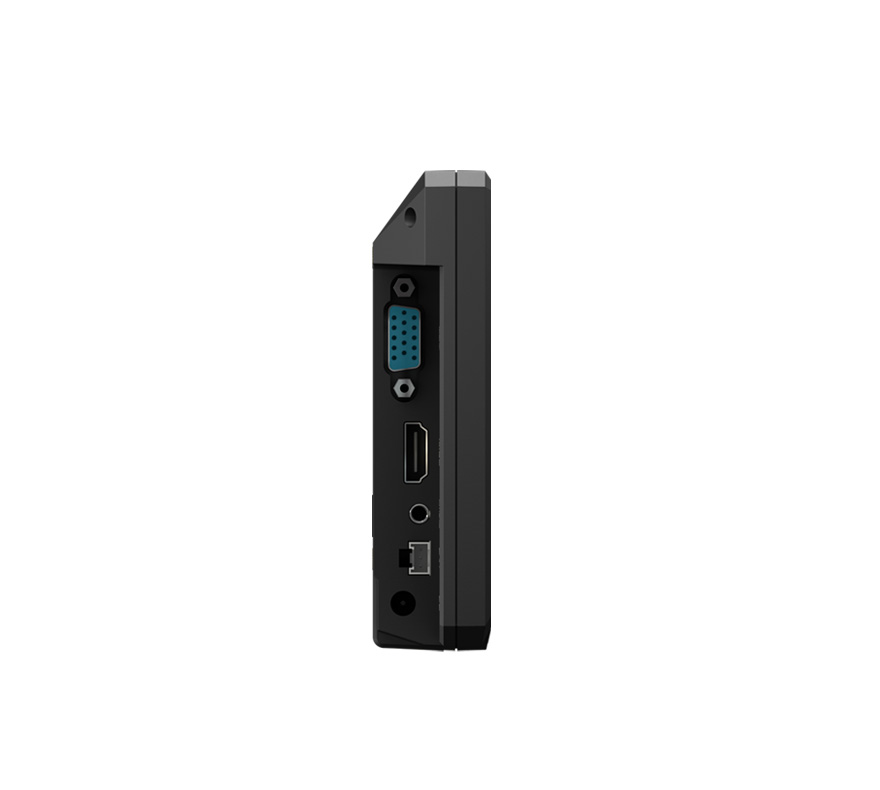

  Input Signal   HDMI, VGA, AV, DVI(optional)
  I/O port   1
  Speaker   1
  Input Voltage   DC 7-36V
  Battery   External (optional)
  Current   450mA
  Power Consumption   ≤4.5W
  Audio Output   ≤1W
  Operating Temperature   -20℃~60℃
  Storage Temperature   -30℃~70℃
  Dimension(LWD)   185×118.5×29.5 mm
  Weight   415g



Tips: Recommend using original Lilliput accessories to prevent device from damage.

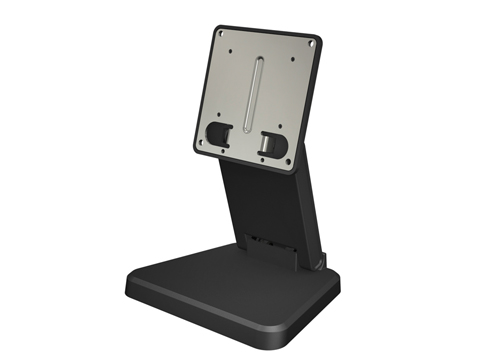

  • 589 Bracket
  • VGA cable for touch
  • HDMI connect HDMI cable with touch
  • Composite cable
  • I/O control line
  • 12V DC adapter
  • 7 keys Remote Control
  • Manual
  • Car power adapter
  • HDMI to DVI cable with touch (optional)
  • VESA folding bracket(optional)
  • VESA battery bracket(optional)
  • Battery Plate(optional)
  • Model No.:  *
  • Name: *
  • Country:
  • E-mail: *
  • Website:
  • Tel:
  • Fax:
  • Message:
  Display Screen   7" LED backlit, 16:9
  Resolution   800 x 480, 8bit, suport up to 1920 x 1080
  Touch Panel   Capacitive Touch (optional)
  Contrast Ratio   500:1
  Brightness   400cd/㎡
  Viewing Angle   140°/120°(H/V)
  Input Signal   HDMI, VGA, AV, DVI(optional)
  I/O port   1
  Speaker   1
  Input Voltage   DC 7-36V
  Battery   External (optional)
  Current   450mA
  Power Consumption   ≤4.5W
  Audio Output   ≤1W
  Operating Temperature   -20℃~60℃
  Storage Temperature   -30℃~70℃
  Dimension(LWD)   185×118.5×29.5 mm
  Weight   415g
