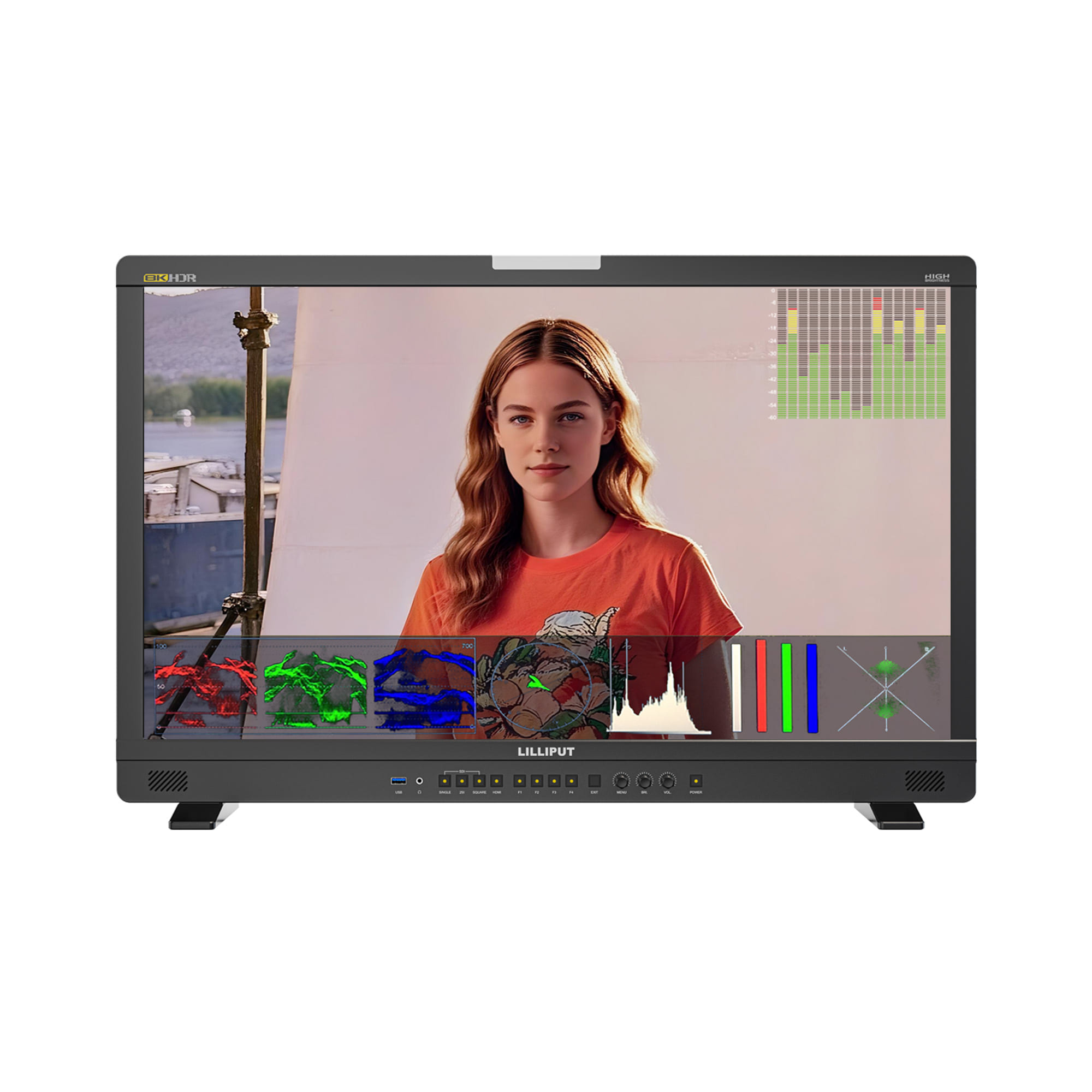

UQ31

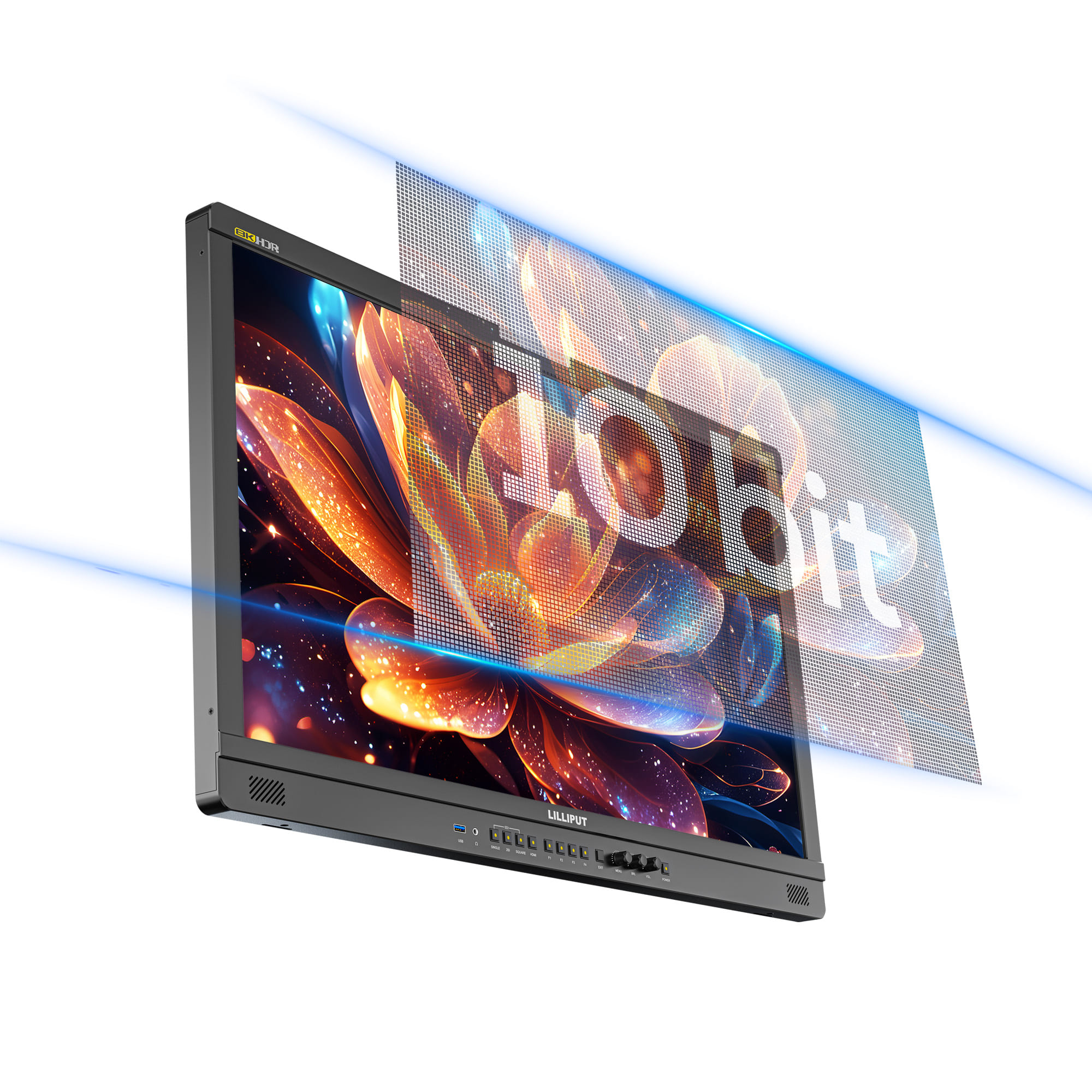

31.5 inch 1200 nits high brightness studio production monitor with 8K 12G-SDI

DISPLAY Panel 31.5″
Physical Resolution 3840*2160
Aspect Ratio 16:9
Brightness 1000 cd/m²
Contrast 1000：1
Viewing Angle 178°/178°（H/V)
HDR ST2084 300/1000/10000/HLG
Supported Log Formats SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User…
Look up Table(LUT)support 3D LUT (.cube format)
Calibration Calibrate color space to Rec.709, DCI-P3, NTSC, BT.2020
VIDEO INPUT SDI 4×12G (Supported 8K-SDI Formats Quad Link)

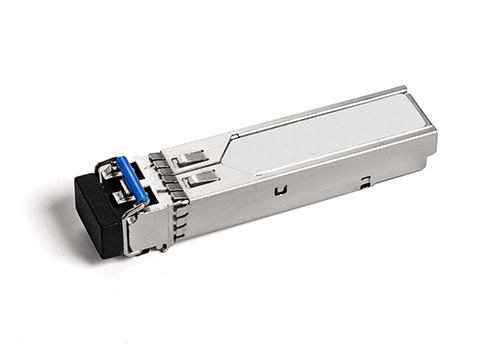

SFP 1×12G SFP+(Fiber module for optional)
HDMI 1×HDMI 2.1 (Supported 8K-HDMI Formats)
VIDEO LOOP OUTPUT SDI 4×12G (Supported 8K-SDI Formats Quad Link)
HDMI 1×HDMI 2.1 (Supported 8K-HDMI Formats)
SUPPORTED FORMATS SDI 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
SFP 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
HDMI 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
AUDIO IN/OUT (48kHz PCM AUDIO) SDI 16ch 48kHz 24-bit
HDMI 8ch 24-bit
Ear Jack 3.5mm
Built-in Speakers 2
REMOTE CONTROL RS422 In/out
GPI 1
LAN 1

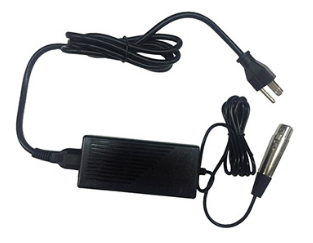

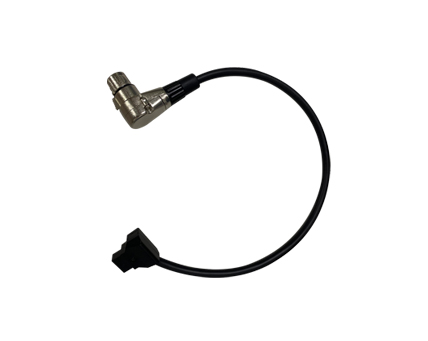

POWER Input Voltage DC 15-32V
Power Consumption ≤94W (24V)
ENVIRONMENT Operating Temperature 0℃~50℃
Storage Temperature -20℃~60℃

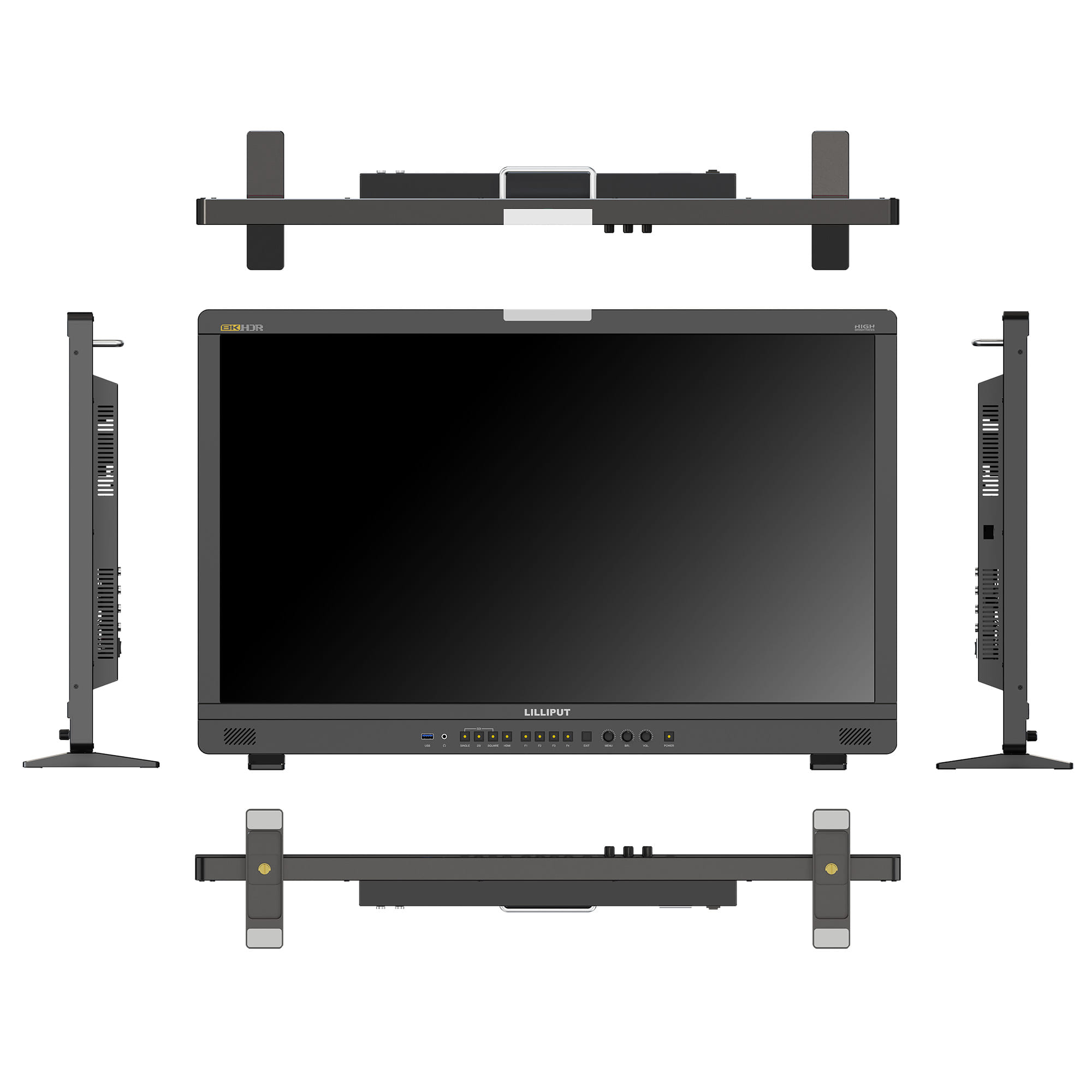

OTHER Dimension(LWD) 747mm × 475.1mm × 55mm
Weight 12.5kg
