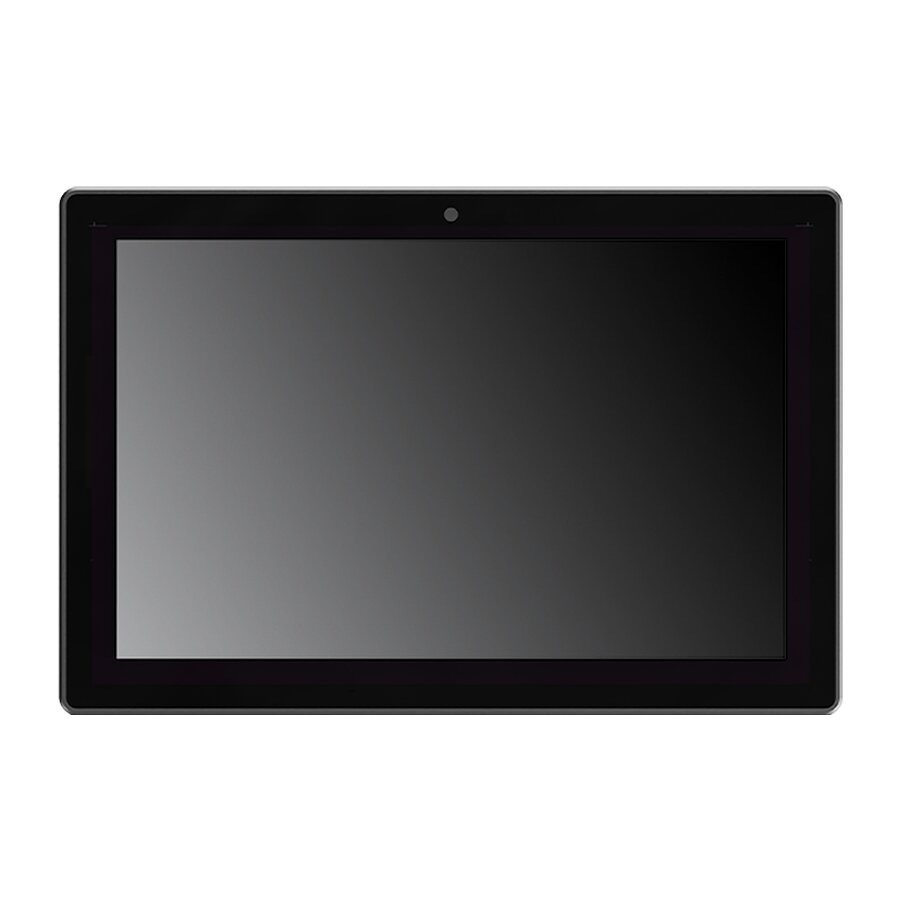

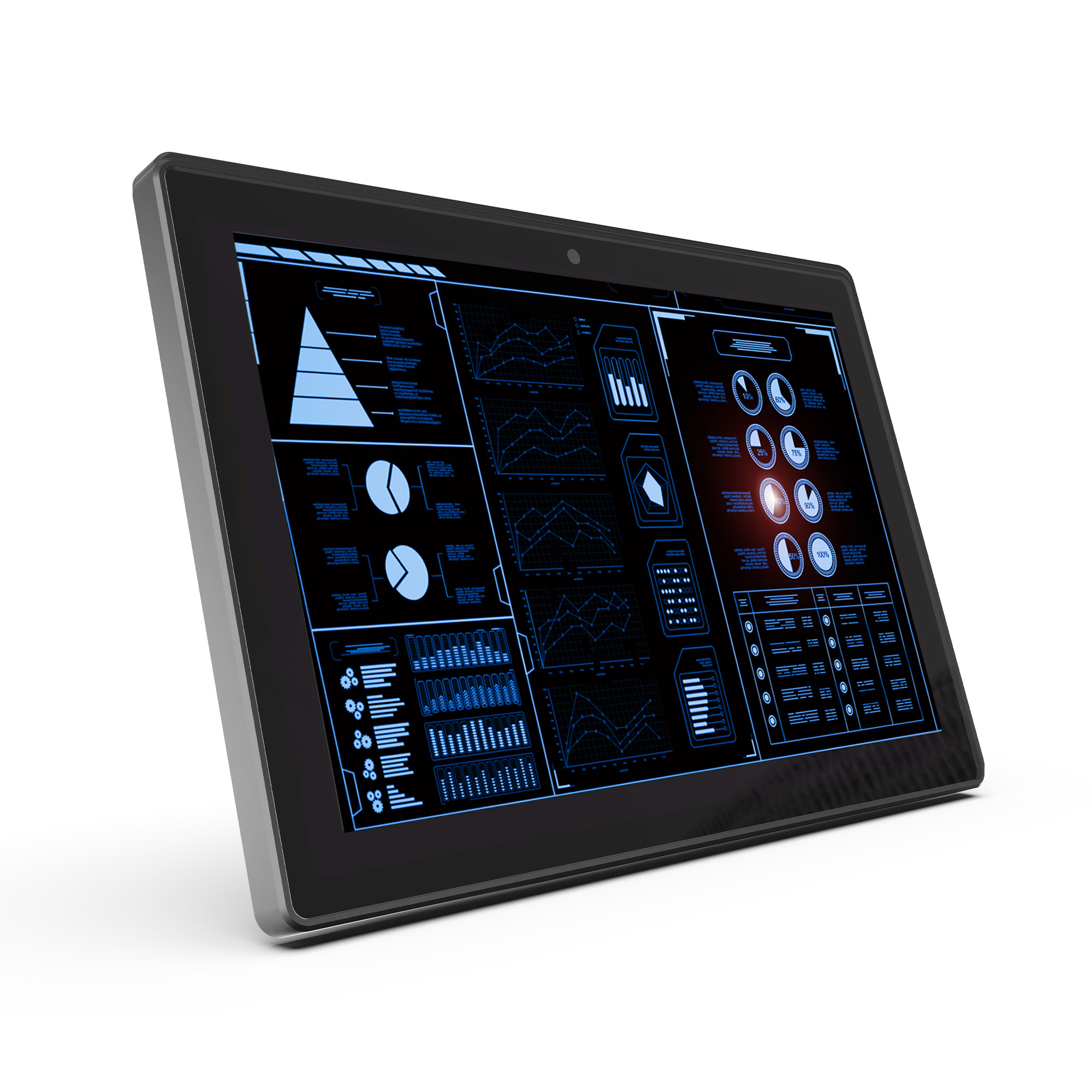

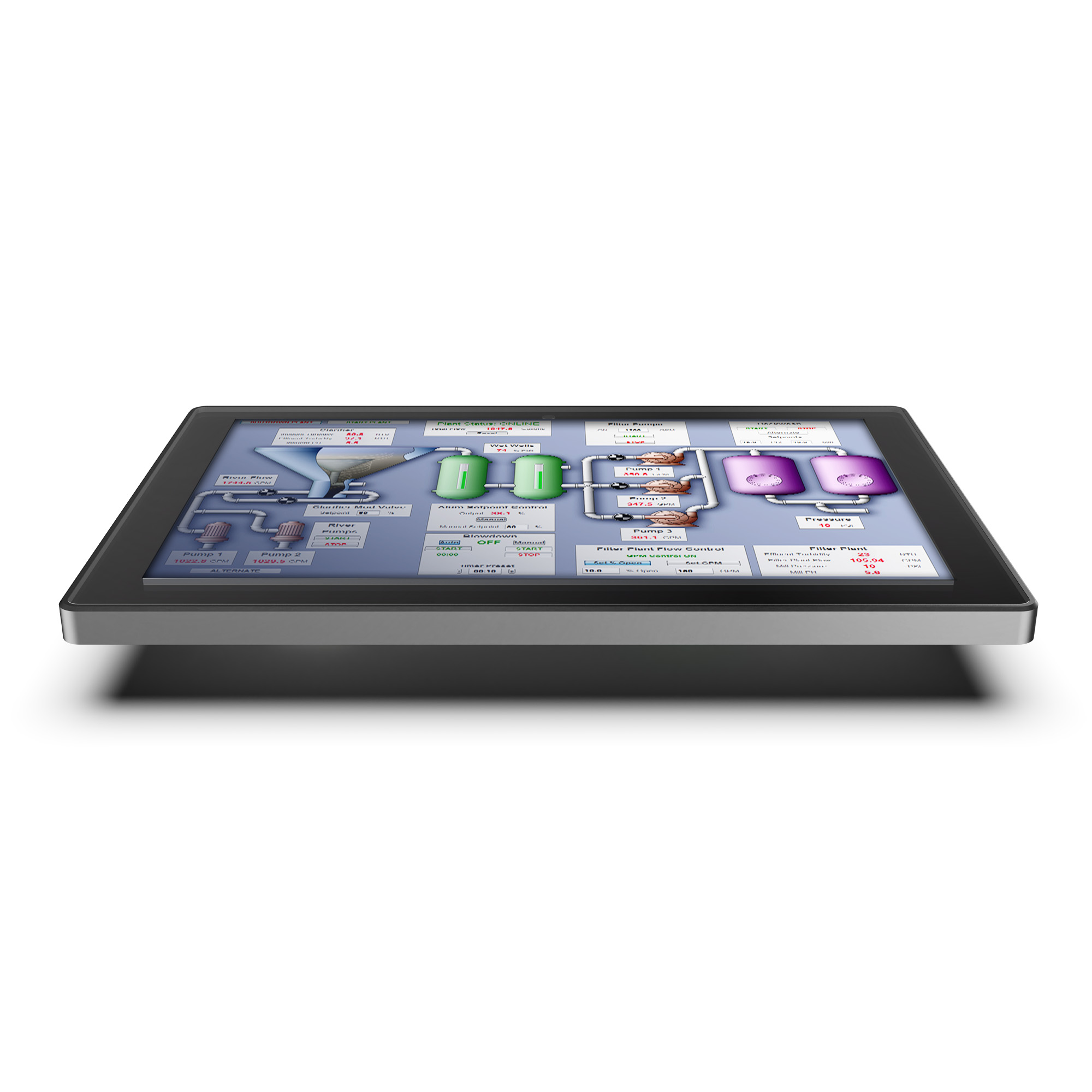

PC-1011

10.1 INCH HIGH BRIGHTNESS IP65 ANDROID INDUSTRIAL TOUCH PANEL PC

. Qualcomm Cortex-A53 64bit Octa-core processor 1.8GHz
.10.1 ” multi-point capacitive touch screen, with 1280*800 resolution
.1000cd/m² brightness, 7H hardness, IK06 test
.Android 9.0 operating system
.2GB RAM and 16GB ROM (4GB RAM and 64GB ROM for optional)
.PoE + power supply
.With Wifi and Bluetooth
.Optional Functions : 3G/4G Network Cellular ,GNSS,Front Camera









SYSTEMCPUQualcomm Cortex®-A53 64-bit Octa-core 1.8GHz processor
OS Android 9.0
RAM + ROM 2GB LPDDR3 + 16GB eMMC, 4GB + 64GB are optional
GPU Adreno 506
PANELSensors Light Sensor (Auto Dimming)
LCD 10.1” IPS, 1280×800, 1000 nit, 170°/170° viewing angle
Touch Screen Multi-point capacitive touch screen

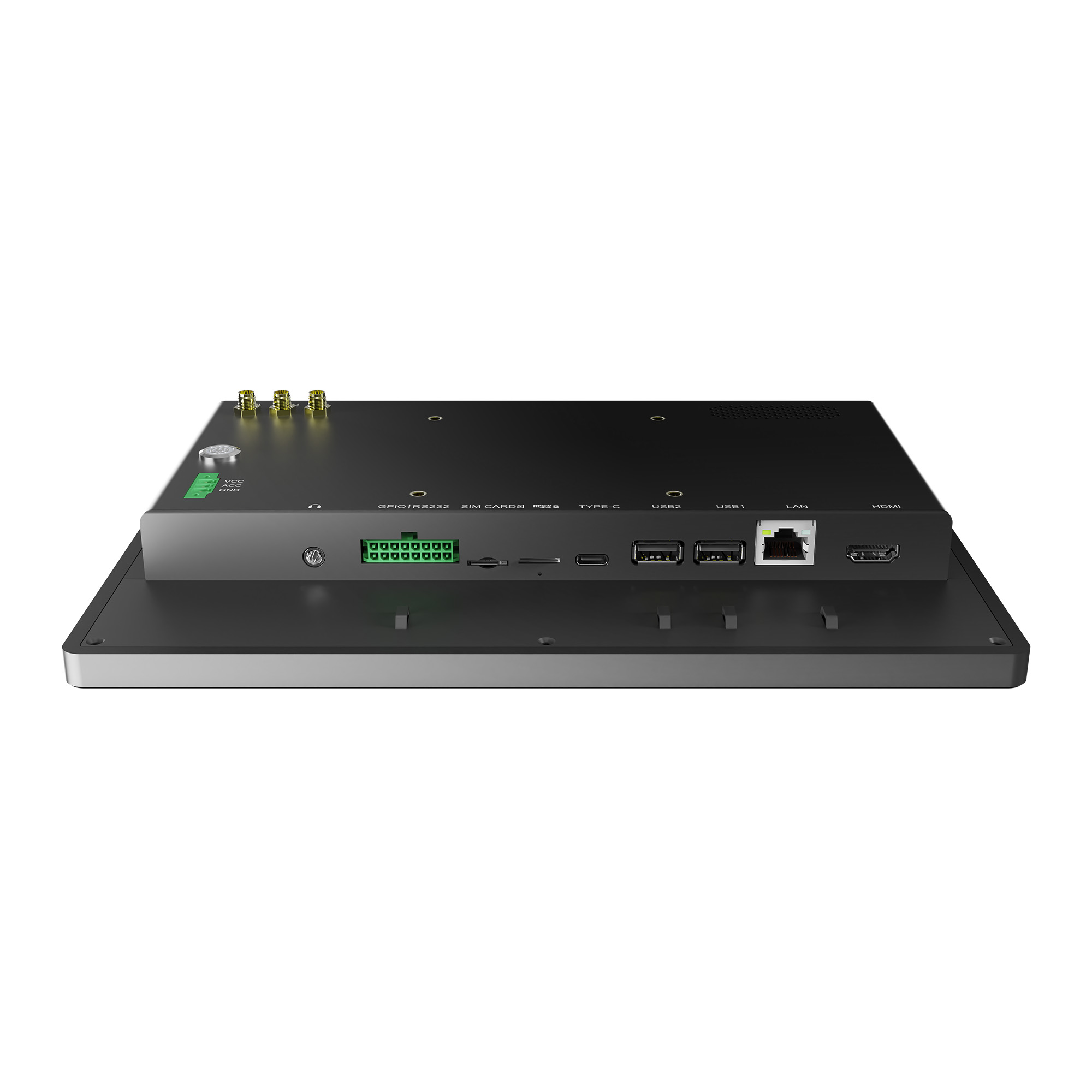

INTERFACELAN 100M×1 (Optional PoE/PoE+: IEEE802.3 af/at)
GPIO ×4 (Input×2, output×2)
COM RS232×3
HDMI ×1 Output
SIM ×1
Micro SD Card ×1, support up to 1TB
USB USB host×2, USB Type-C OTG×1
Earphone Jack 3.5mm
WIRELESSWi-Fi 802.11a/b/g/n/ac, 2.4GHZ/5GHZ
Bluetooth 2402MHz~2480MHz
Cellular Network Optional 3G/4G (LTE, DC-HSPA+, UMTS, EDGE, GPRS, GSM)

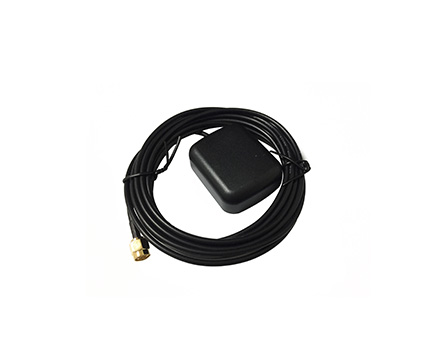

GNSS Optional (GPS, GLONASS)
BUILT-INFront Camera Optional, 5.0MP
Speaker ×1
POWERPower Supply DC 9~36V (ISO7637-2 compliant)
Power Consumption ≤12W
OTHERDimension 265mm×172mm×32mm
Weight 1.3kg
Protection Rating Front IP65 (IEC60529), Front NEMA4
Vibration 1.5Gms, 5~500Hz, 1hr/axis (IEC 60068-2-64)
Shock 10G, half-sine wave, last 11ms (IEC 60068-2-27)
Environment Operating Temp: -10°C~60°C (14°F~140°F)
 Storage Temp: -20°C~65°C (-4°F~149°F)
