PVM220S-E

21.5 inch 1000 Nits High Brightness Live Stream & Recording Monitor

Display::21.5 inch, 1920 X 1080, 1000 nits
Input::3G-SDI, HDMI 2.0
Output::3G-SDI, HDMI 2.0
Push / Pull Stream::3 push stream / 1 pull stream
Recording::Support up to 1080p60
Feature::3D-LUT, HDR, Gammas, Waveform, Vector...

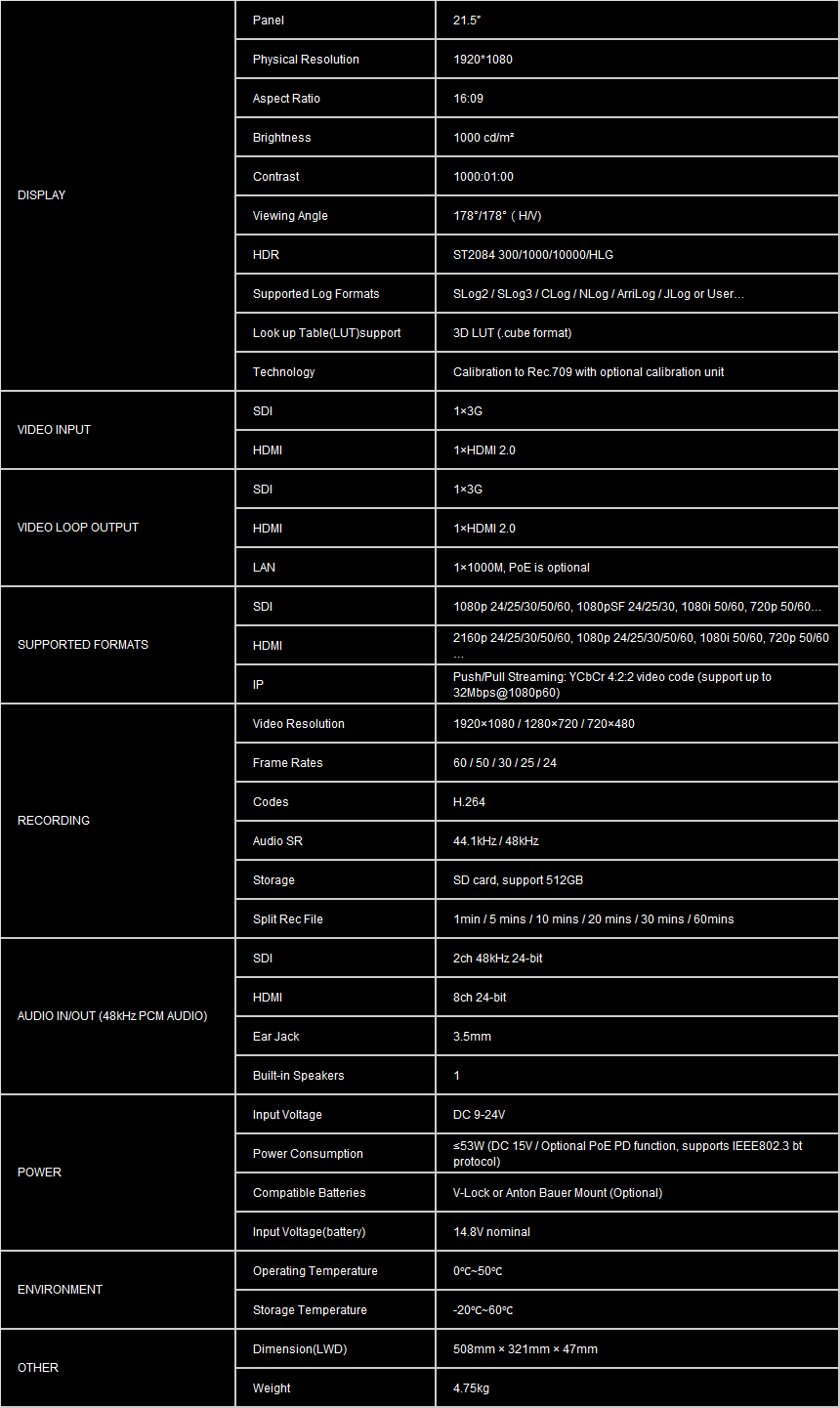

DISPLAYPanel21.5″
Physical Resolution1920*1080
Aspect Ratio16:9
Brightness1000 cd/m²
Contrast1000：1
Viewing Angle178°/178°（H/V)
HDRST2084 300/1000/10000/HLG
Supported Log FormatsSLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User…
Look up Table(LUT)support3D LUT (.cube format)
TechnologyCalibration to Rec.709 with optional calibration unit
VIDEO INPUTSDI1×3G
HDMI1×HDMI 2.0
VIDEO LOOP OUTPUTSDI1×3G
HDMI1×HDMI 2.0
LAN1×1000M, PoE is optional
SUPPORTED FORMATSSDI1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
HDMI2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
IPPush/Pull Streaming: YCbCr 4:2:2 video code (support up to 32Mbps@1080p60)
RECORDINGVideo Resolution1920×1080 / 1280×720 / 720×480
Frame Rates60 / 50 / 30 / 25 / 24
CodesH.264
Audio SR44.1kHz / 48kHz
StorageSD card, support 512GB
Split Rec File1min / 5 mins / 10 mins / 20 mins / 30 mins / 60mins
AUDIO IN/OUT (48kHz PCM AUDIO)SDI2ch 48kHz 24-bit
HDMI8ch 24-bit
Ear Jack3.5mm
Built-in Speakers1
POWERInput VoltageDC 9-24V
Power Consumption≤53W (DC 15V / Optional PoE PD function, supports IEEE802.3 bt protocol)
Compatible BatteriesV-Lock or Anton Bauer Mount (Optional)
Input Voltage(battery)14.8V nominal
ENVIRONMENTOperating Temperature0℃~50℃
Storage Temperature-20℃~60℃
OTHERDimension(LWD)508mm × 321mm × 47mm
Weight4.75kg
