339

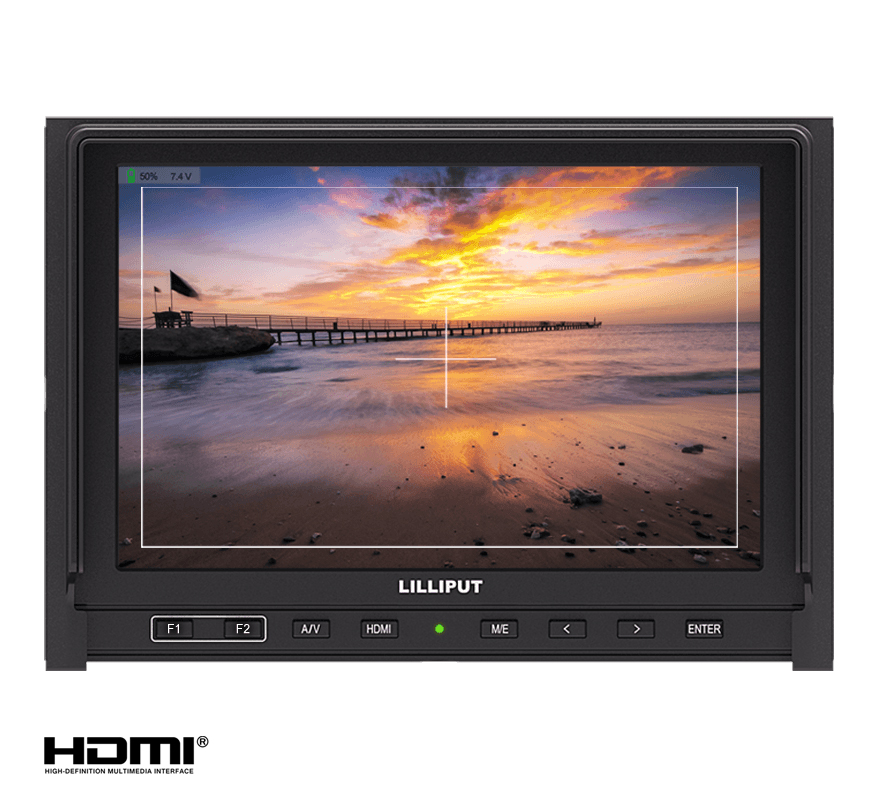

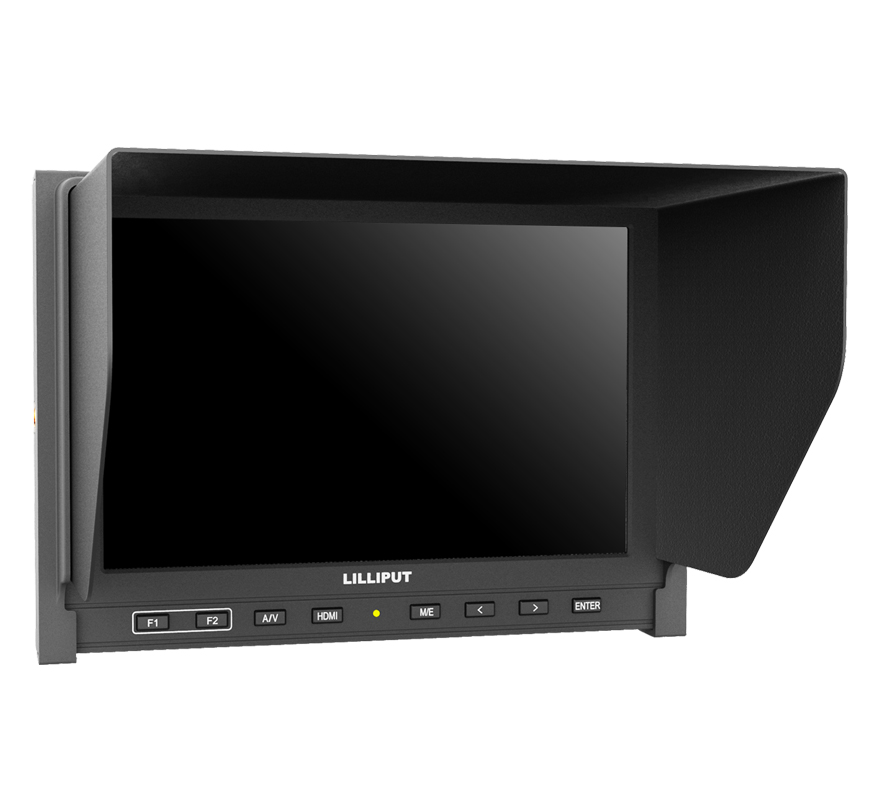

7 inch Camera-top Monitor

- High resolution: 1280×800,
- High contrast: 800:1,
- High brightness: 400cd/m2,

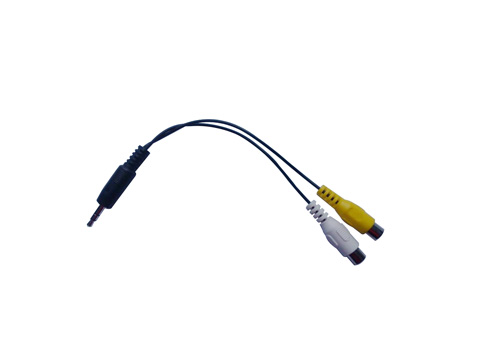

- HDMI & AV inputs,
- Built-in battery & battery level,

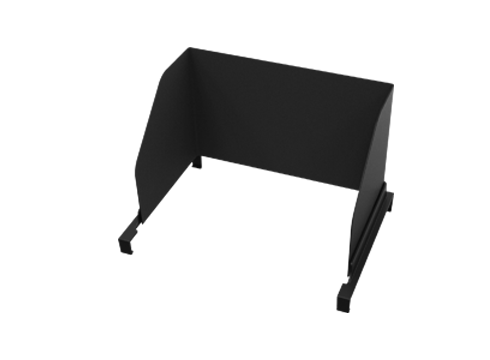

- Foldable sun shade.



Camera Auxiliary Functions:

  • Camera Mode
  • Center Marker
  • Pixel-to-Pixel
  • Safety Marker
  • Aspect Ratio
  • Check Field
  • Color Bar
  • Underscan
  • Overscan
  • Freeze Input
  • H/V Delay
  • 8x Zoom
  • Image Flip



Excellent Display & Design

it features attractive, which with 1280x800 high resolution, 400cd/m² high brightness & 800:1 high contrast produces colours that are vivid, rich - and importantly - accurate.





Wide Viewing Angles (IPS Panel)

178° horizontal & 178° vertical wide viewing angles, it's available for people viewing from different angles with the same visual effect.




Pro HD display solution for DSLR

7" broadcasting quality field monitor with HDMI & AV inputs, Recommend for all Filmmakers, Photographers, Enthusists & DSLR camera users.



Built-in Battery & Battery Level

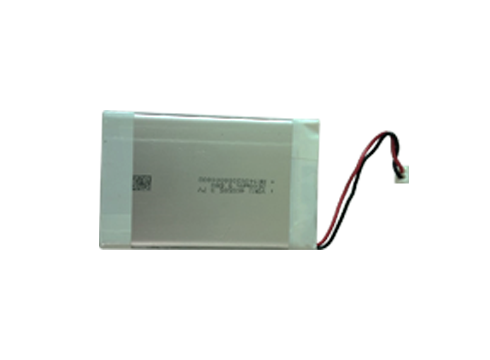

Built-in 2600mAh battery, support up to 3-4 hours working time, and providing battery level indicator.



DISPLAY
   Panel   7" IPS, LED backlit
  Physical Resolution   1280×800
  Aspect Ratio   16:9
  Brightness   400cd/㎡
  Contrast   800:1
  Viewing Angle   178°/178°(H/V)
INPUT
   HDMI   1
  AV   1
OUTPUT
   AV   1
AUDIO
   Speaker   1
  Earphone   1
HDMI FORMAT
   Full HD   1080p(60/59.94/50/30/29.97/25/24/23.98/23.976/24sF)
  HD

   1080i(60/59.94/50), 1035i(60/59.94)
   720p(60/59.94/50/30/29.97/25)

  SD    576p(50), 576i (50)
   480p (60/59.94), 486i (60/59.94)
POWER
   Current   580mA
  Input Voltage   DC 7-24V
  Battery   Built-in 2600mAh battery

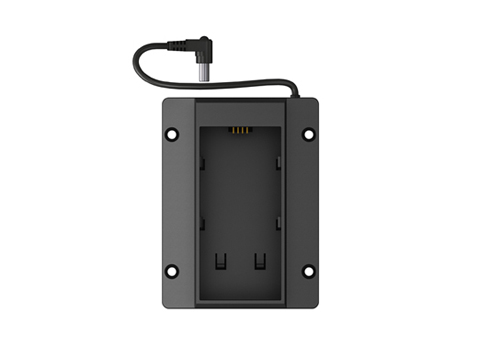

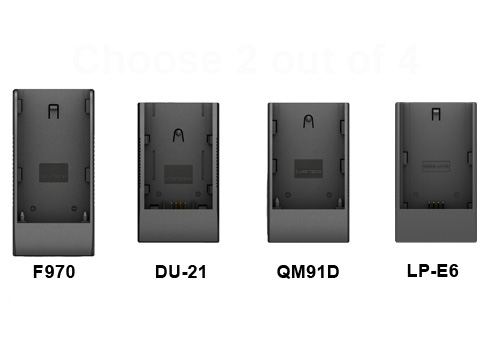

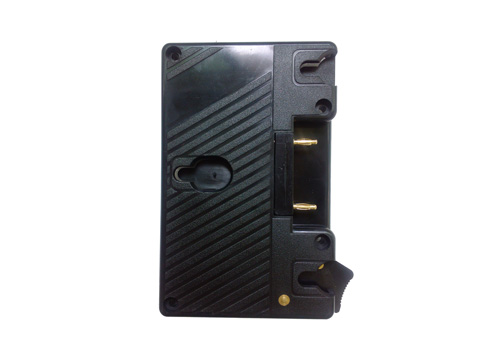

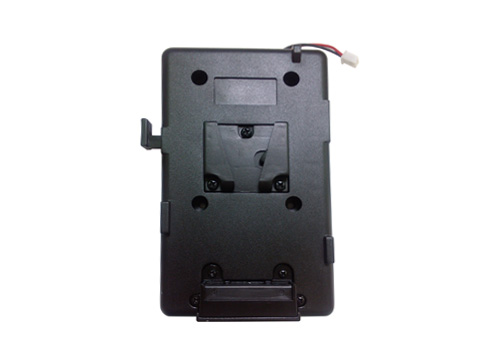

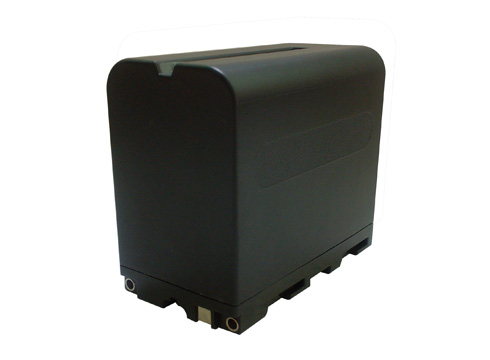

  Battery Plate (optiional)   V-mount / Anton Bauer mount /
  F970 / QM91D / DU21 / LP-E6
  Power Consumption   ≤7W
ENVIRONMENT
   Operating Temperature   -20℃～60℃
  Storage Temperature   -30℃～70℃
DIMENSION
   Dimension (LWD)   185×126×30 mm
  Color   Black
  Weight   360g
