664/P

7 inch Camera-top monitor

- IPS panel 178° wide viewing angles,
- High resolution: 1280×800,
- High brightness: 400cd/㎡,
- High contrast: 800:1,
- Faster response time,
- Wide voltage: DC 7-24V,
- Firm & portable design,
- POP-UP shortcut menu,
- Shutter shortcut button.

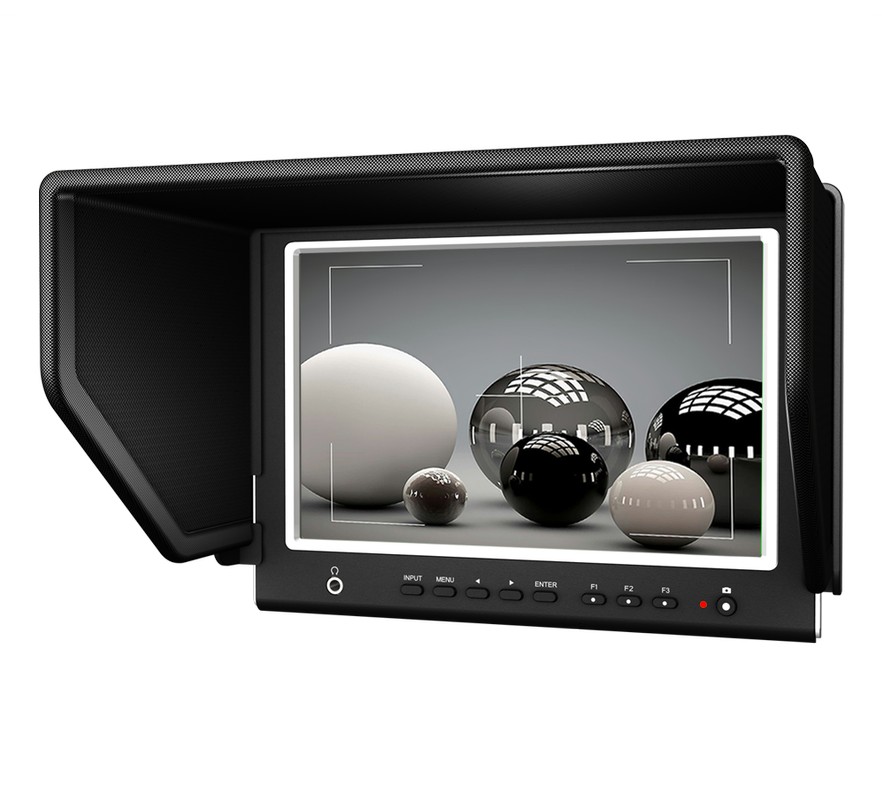

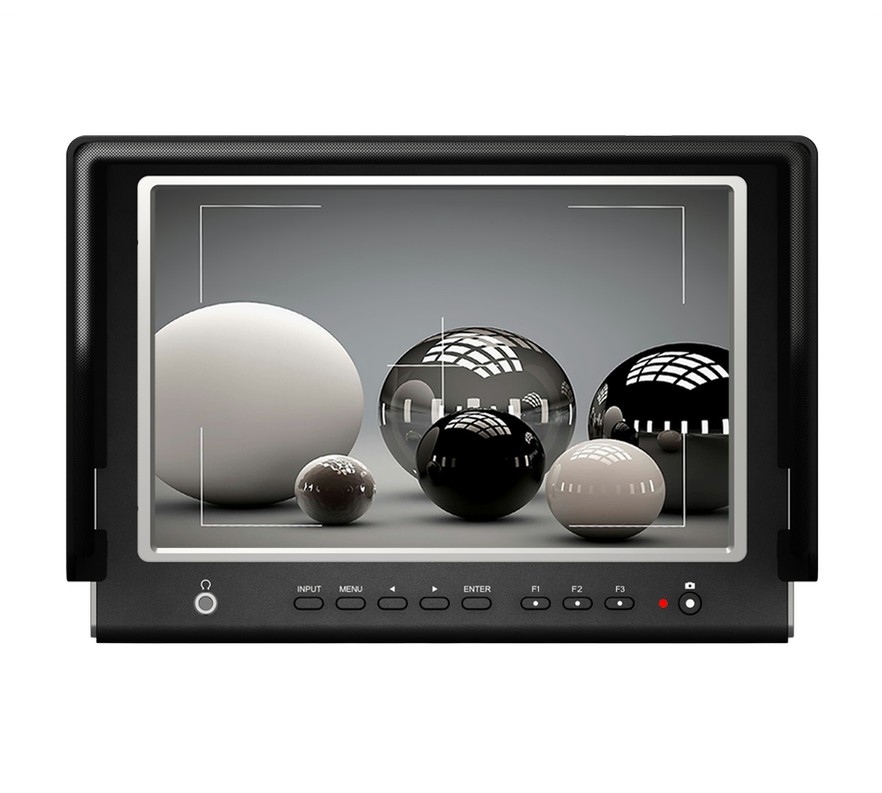

The Lilliput 664/P monitor is a 7 inch 16:9 LED field monitor with HDMI, Composite video and collapsible sun hood. Optimised for DSLR cameras.



Note: 664/P     (with HDMI input, Advanced Functions)
           664/O/P (with HDMI input & output, Advanced Functions)

7 inch 16:9 LCD

7 inch monitor with wide screen aspect ratio

The Lilliput 664/P monitor has a 1280×800 resolution, 7" IPS panel, perfect combination for DSLR use and the ideal size to fit neatly in a camera bag.

Field monitor for the pro video market

Optimised for DSLR cameras

Compact size and peaking functionality are the perfect complements to your DSLR camera's features.

HDMI output

Better Advanced Functions

Providing advanced camera auxiliary functions. Peaking, False Color, Level Meter, Histogram & Exposure,etc., are major concerns with DSLR users. Lilliput's field monitors are great at displaying accurate images, 664/P makes photoing & recording even easier with its functionality. Values can be adjust under Level Meter, Peaking & Exposure functions, etc.

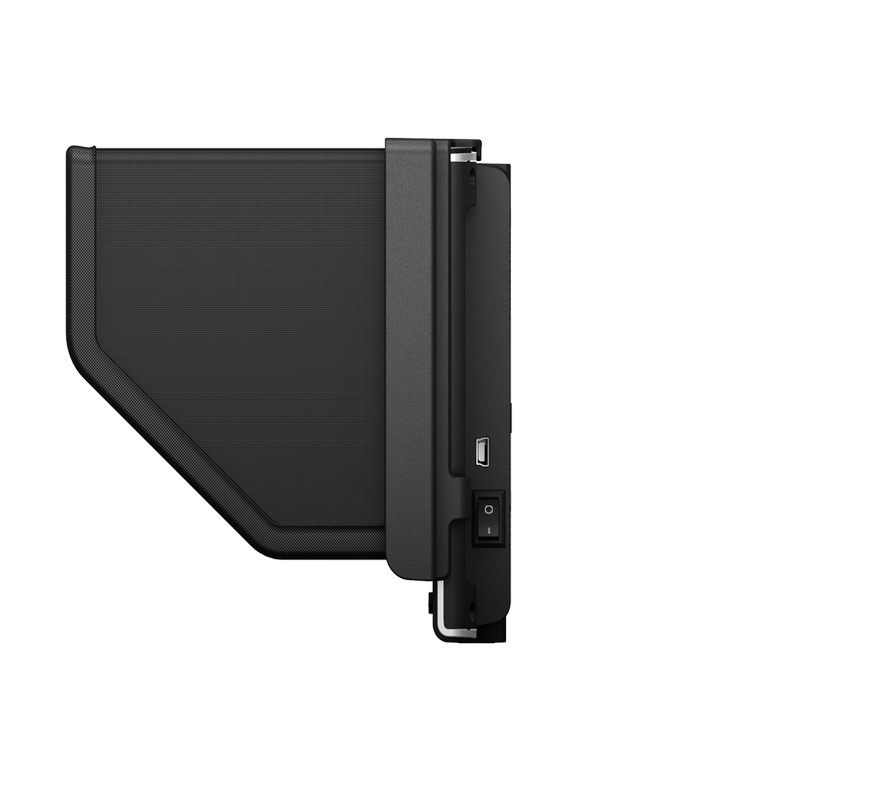

Screen protection

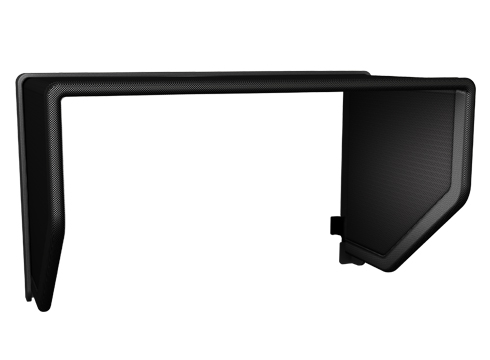

Foldable sunhood becomes screen protector

Customers frequently asked Lilliput how to prevent their monitor's LCD from getting scratched, especially in transit. Lilliput responded by designing the 664/P's smart screen protector that folds out to become a sun hood. This solution provides protection for the LCD and saves space in the customers camera bag.

HDMI output

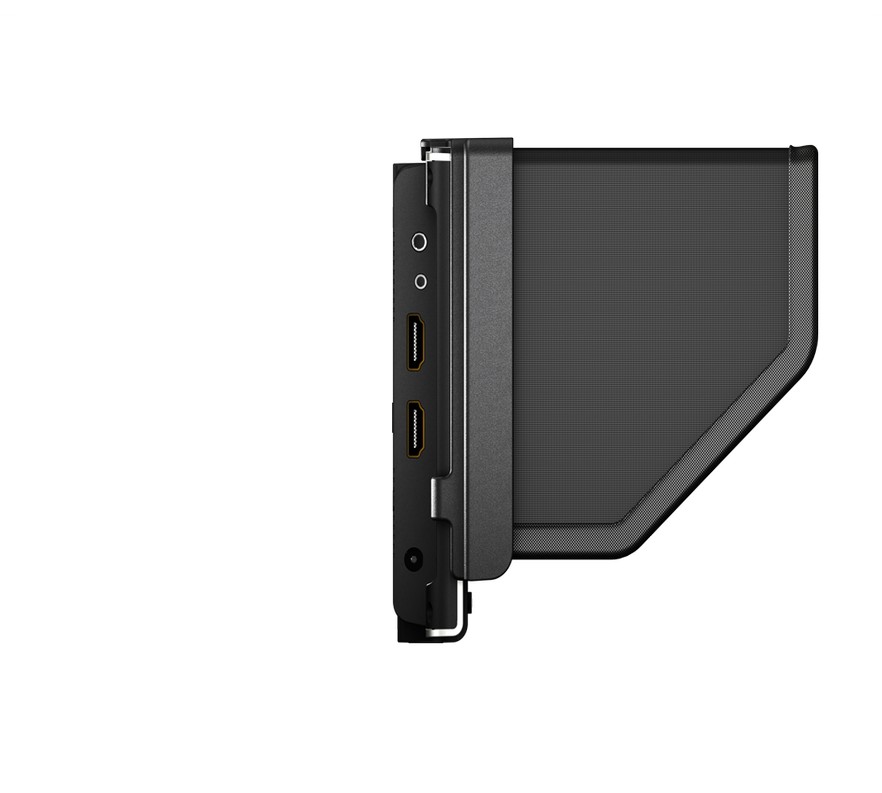

HDMI video output - no annoying splitters - 664/O/P

Most DSLRs only have one HDMI video output, so customers need to buy expensive and cumbersome HDMI splitters to connect more than one monitor to the camera.

664/O/P includes an HDMI-output feature which allows customers to duplicate the video content onto a second monitor - no annoying HDMI splitters required. The second monitor can be any size and picture quality will not be affected.

High resolution LCD

High resolution

Lilliput's intelligent HD scaling technology used on the 668 has worked wonders for our customers. But some customers need higher physical resolutions. The Lilliput 664/P monitor uses the latest IPS LED-backlit display panels that feature 25% higher physical resolutions. This provides higher levels of detail and image accuracy.

High contrast LCD

High contrast ratio

The Lilliput 664/P monitor provides even more innovations to pro-video customers with its super-high contrast LCD. The 800:1 contrast ratio produces colours that are vivid, rich - and importantly - accurate.

IP67 10 inch monitor

Wide viewing angles

664/P has a stunning 178 degrees viewing angle both vertically and horizontally, you can get the same vivid picture from wherever you are standing - great for sharing the video from your DSLR with the whole film crew.



DISPLAY
   Panel   7" IPS
  Physical Resolution   1280×800, support up to 1920×1080
  Aspect Ratio   16:9
  Brightness   400cd/㎡
  Contrast   800:1
  Viewing Angle   178°/178°(H/V)
INPUT
   HDMI   1

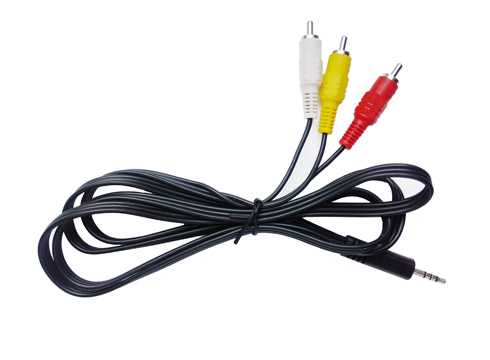

  AV   1
OUTPUT
   HDMI   1(optional)
AUDIO
   Speaker   1(built-in)
  Ear Phone Slot   1
POWER
   Current   960mA
  Input Voltage   DC 7-24V

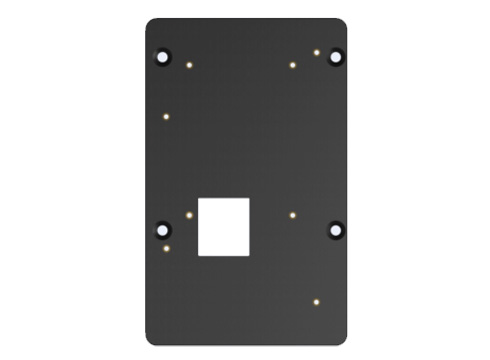

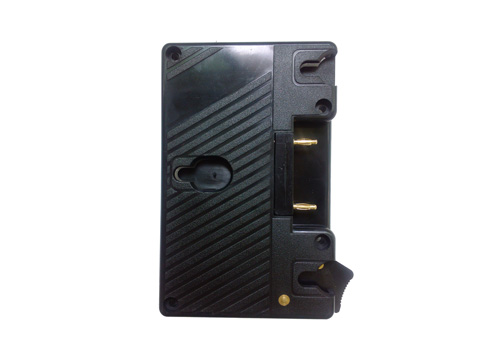

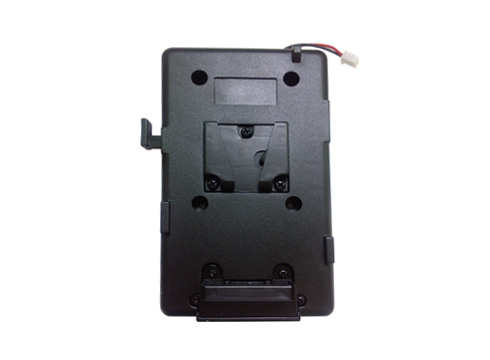

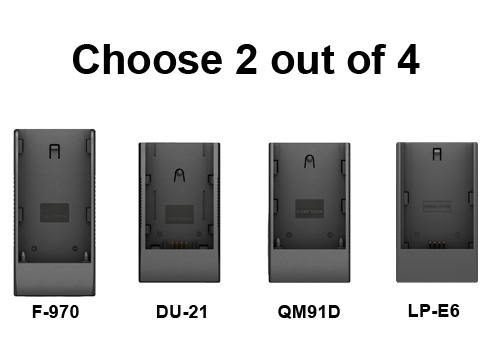

  Battery Plate   V-mount / Anton Bauer mount /
  F970 / QM91D / DU21 / LP-E6
  Power Consumption   ≤12W
ENVIRONMENT
   Operating Temperature   -20℃～60℃
  Storage Temperature   -30℃～70℃
DIMENSION
   Dimension(LWD)   184.5×131×23mm
  Weight   365g
