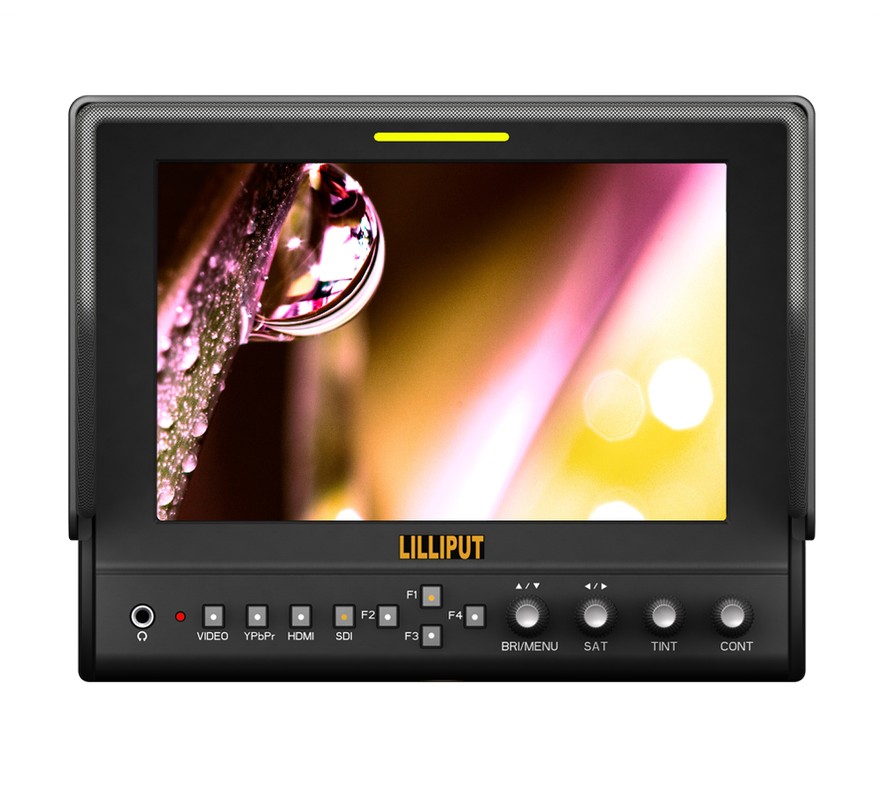

663/P

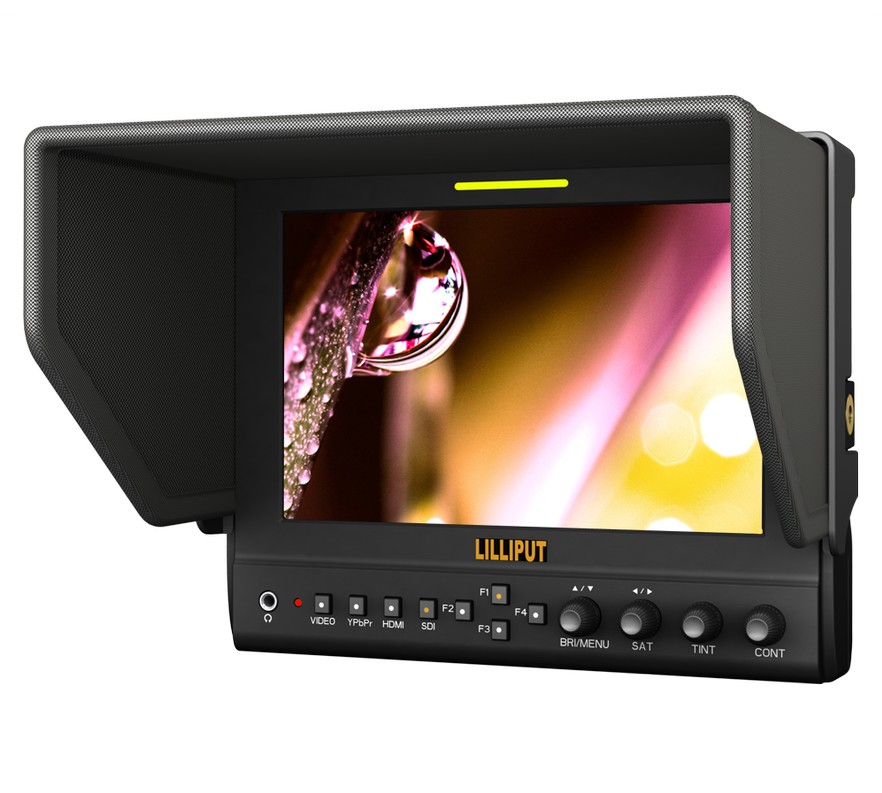

7 inch Field Monitor

- IPS panel 178° wide viewing angles,
- High resolution: 1280×800,
- High brightness: 400cd/㎡,
- High contrast: 800:1,
- Faster response time,
- Metal housing,
- TALLY interface with indicating light,
- POP-UP shortcut menu.



The Lilliput 663/P monitor is a 7 inch 16:9 metal framed LED field monitor with HDMI, YPbPr (via BNC), Composite video and collapsible sun hood. Optimised for DSLR cameras.



Note: 663/P     (with advanced Functions, with HDMI input)--Sold Out Soon！
           663/O/P (with advanced Functions, with HDMI input & output)--Sold Out Soon！

 663/P2 & 663/O/P2 arrival, for more information please click here

7 inch 16:9 LCD

7 inch monitor with wide screen aspect ratio

The Lilliput 663/P monitor has a 1280×800 resolution, 7" IPS panel, perfect combination for  use and the ideal size to fit neatly in a camera bag.

Field monitor for the pro video market

Optimised for DSLR cameras

Compact size and peaking functionality are the perfect complements to your DSLR camera's features.

HDMI output

Better Advanced Functions

Providing advanced camera auxiliary functions. Peaking, False Color,  Histogram & Exposure, etc., are major concerns with DSLR users. Lilliput's field monitors are great at displaying accurate images, 663/P makes photoing & recording even easier with its functionality.

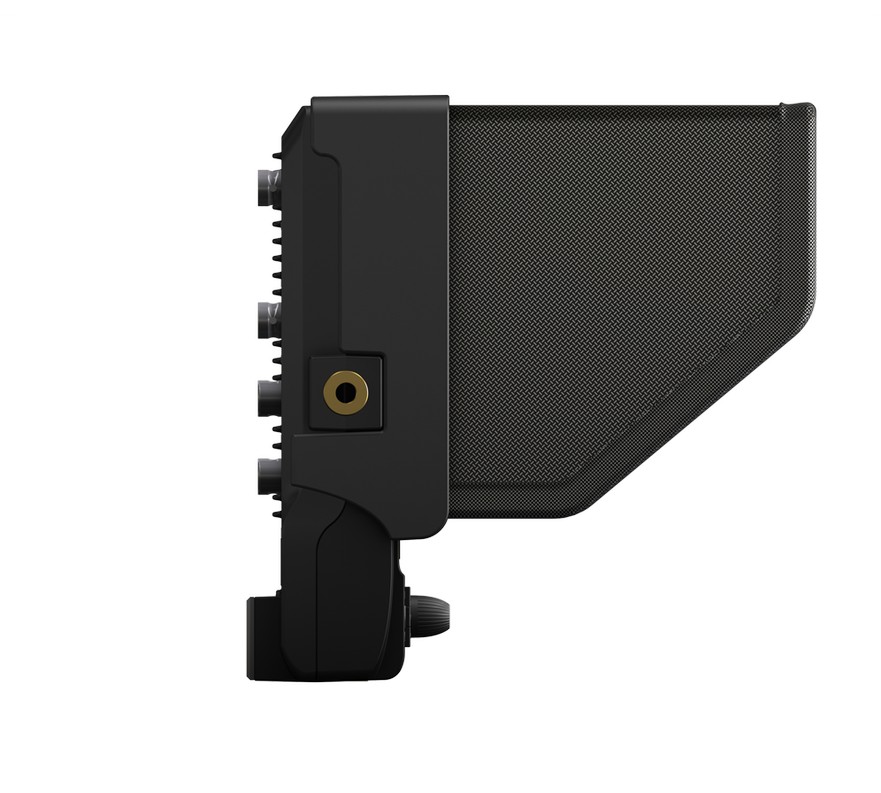

Screen protection

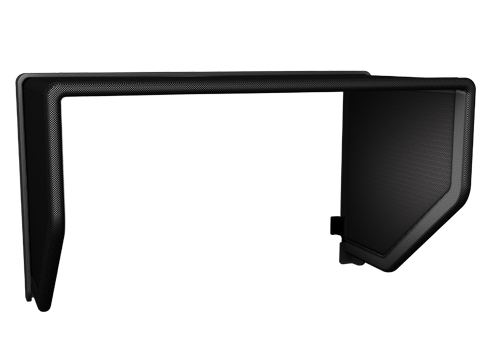

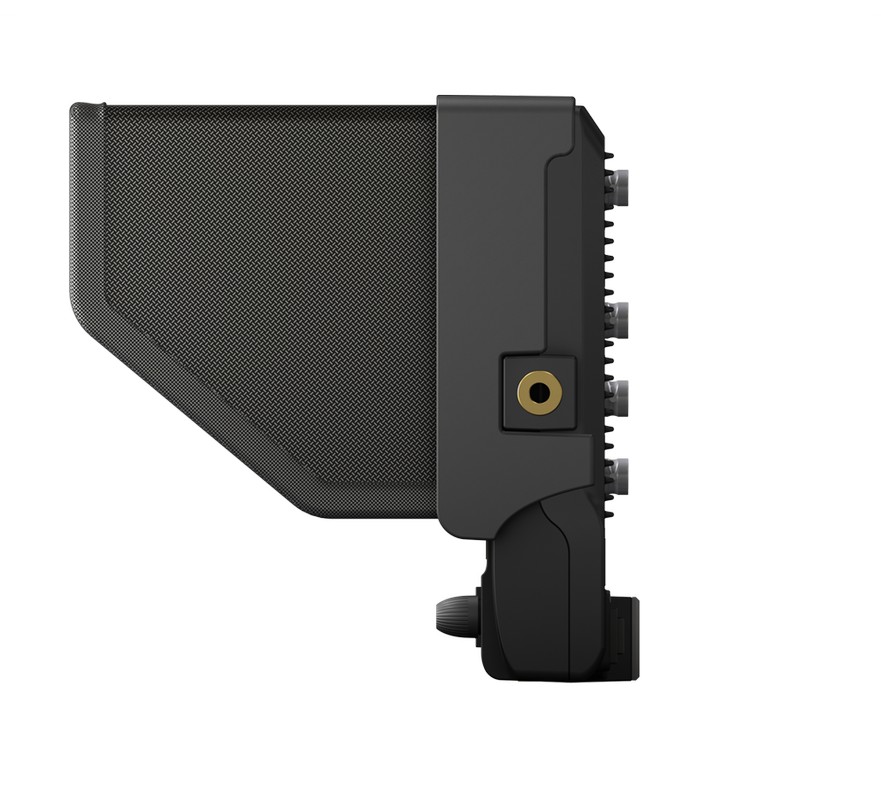

Foldable sunhood becomes screen protector

Customers frequently asked Lilliput how to prevent their monitor's LCD from getting scratched, especially in transit. Lilliput responded by designing the 663/P 's smart screen protector that folds out to become a sun hood. This solution provides protection for the LCD and saves space in the customers camera bag.

HDMI output

HDMI video output - no annoying splitters（just for model: 663/O/P）

Most DSLRs only have one HDMI video output, so customers need to buy expensive and cumbersome HDMI splitters to connect more than one monitor to the camera.

663/O/P includes an HDMI-output feature which allows customers to duplicate the video content onto a second monitor - no annoying HDMI splitters required. The second monitor can be any size and picture quality will not be affected.

High resolution LCD

High resolution

The Lilliput 663/P monitor uses the latest LED-backlit display IPS panels that feature higher physical resolutions. This provides higher levels of detail and image accuracy.

High contrast LCD

High contrast ratio

The Lilliput 663/P monitor provides even more innovations to pro-video customers with its super-high contrast LCD. The 800:1 contrast ratio produces colours that are vivid, rich - and importantly - accurate.

Configurable to suit your style

Since Lilliput introduced the complete range of HDMI monitors, we have had countless requests from our customers to make changes to improve our offering. Some features have been included as standard on 663/P. Users can customize the 4 programmable function buttons (namely F1, F2, F3, F4)  for shortcut operation according to different needs.

Wide viewing angles

Lilliput's monitor with the widest viewing angle has arrived! With a stunning 178 degrees viewing angle both vertically and horizontally, you can get the same vivid picture from wherever you are standing.



DISPLAY
   Panel   7" IPS
  Physical Resolution   1280×800, support up to 1920×1080
  Aspect Ratio   16:9
  Brightness   400cd/㎡
  Contrast   800:1
  Viewing Angle   178°/178°(H/V)

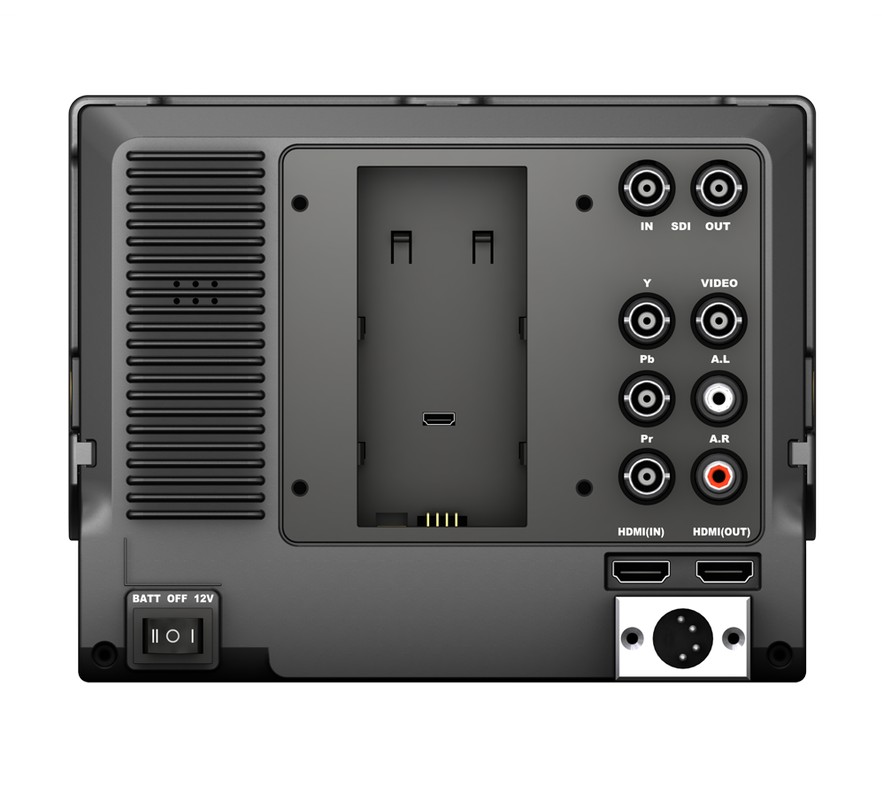

INPUT
   HDMI   1
  YPbPr   3(BNC)
  VIDEO   1
  AUDIO   2(L/R)
OUTPUT
   HDMI   1
AUDIO
   Speaker   1(built-in)
  Ear Phone Slot   1
POWER
   Current   900mA

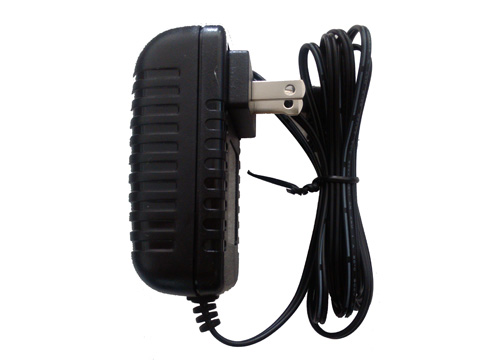

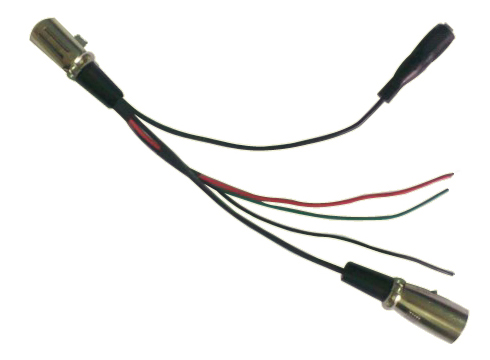

  Input Voltage   DC 7-24V(XLR)

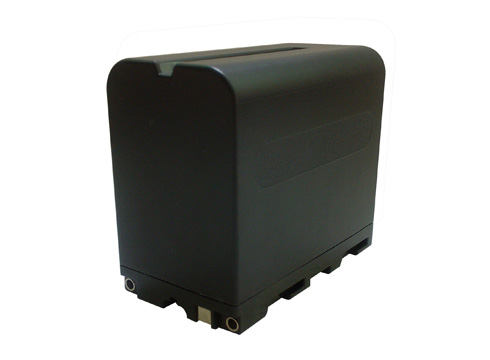

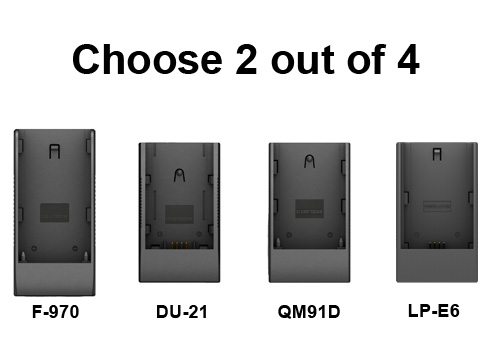

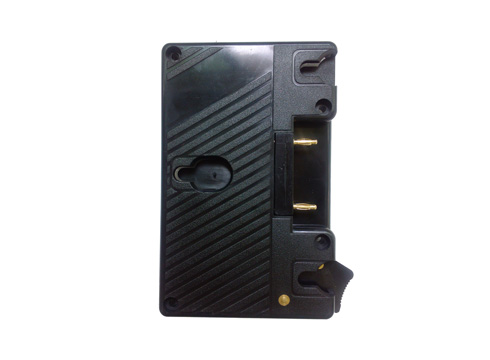

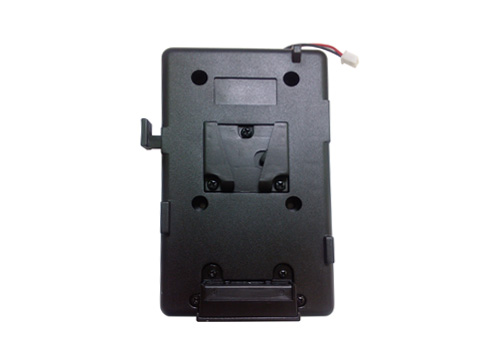

  Battery Plate   V-mount / Anton Bauer mount /
  F970 / QM91D / DU21 / LP-E6
  Power Consumption   ≤11W
ENVIRONMENT
   Operating Temperature   -20℃～60℃
  Storage Temperature   -30℃～70℃
DIMENSION
   Dimension(LWD)   191.5×152×31 / 141mm (with cover)

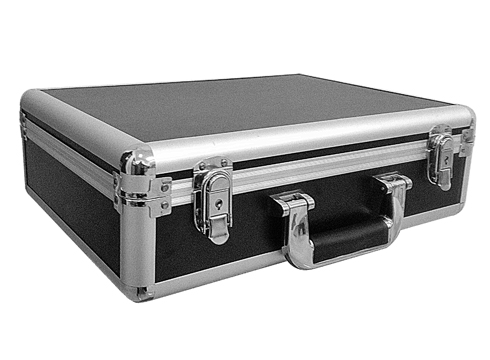

  Weight   760g / 938g (with cover)/ 2160g (with suitcase)
