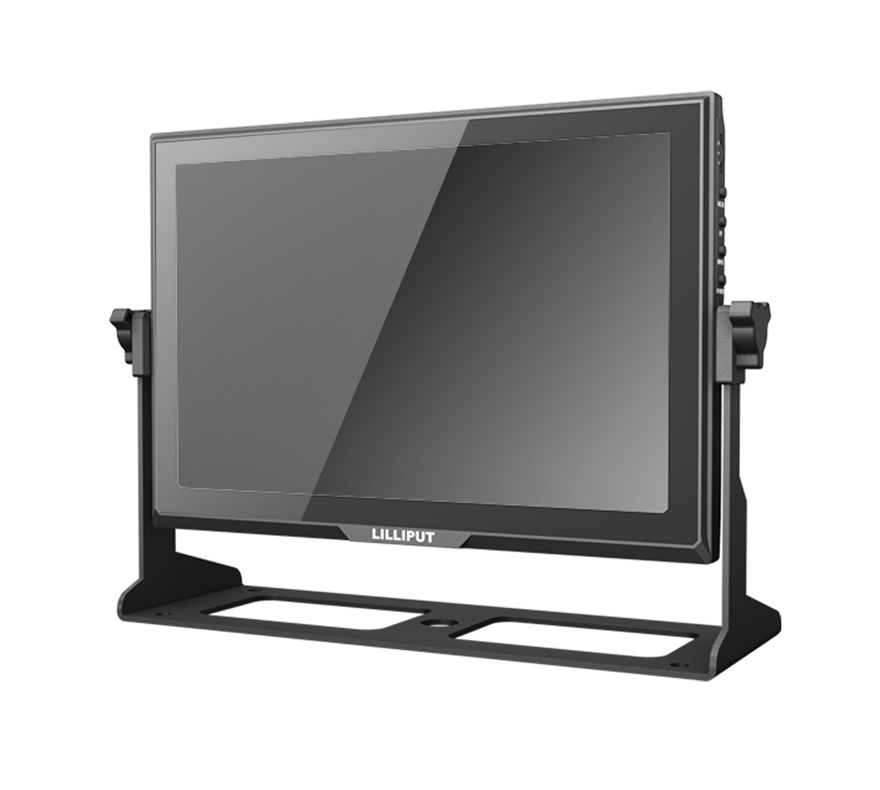

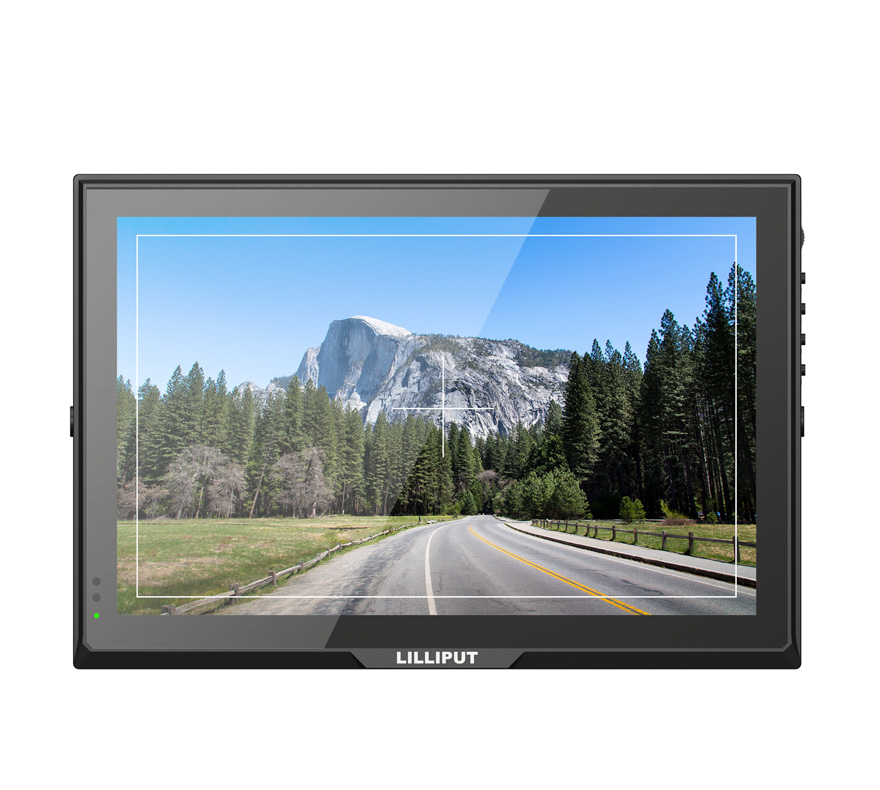

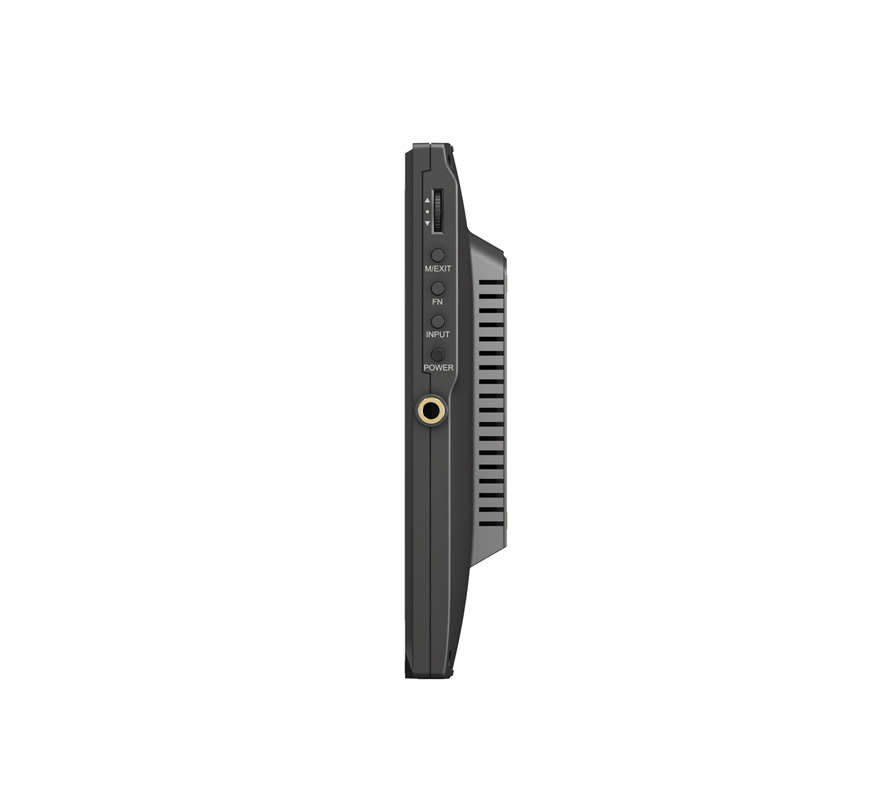

FA1014/S

10.1 inch 3G-SDI Camera Monitor

- High contrast: 800:1,
- High brightness: 350cd/m².
- Lux auto brightness,
- Integrated dustproof front panel,
- I /O control interface,
- 3G-SDI, HDMI, DVI, VGA & AV inputs,

?

Features:

  • High contrast: 800:1,
  • High brightness: 350cd/m².
  • Lux auto brightness,
  • Integrated dustproof front panel,
  • I/O control interface,

Wide Viewing Angles (IPS Panel)

170° horizontal & 170° vertical wide viewing angles, it's available for people viewing from different angles with the same visual effect.

?


Bigger size, larger view.

10.1" IPS display panel with 1280×800 native resolution,?twice viewing area than 7” display.?

?


Lux Auto Brightness (optional)
A light sensor designed to detect ambient lighting conditions adjusts the panel's brightness automatically, which makes viewing more conveniently & saves more power.

?

?

under hard light ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? under weak light

Integrated dustproof front panel

FA1014/S front panel adopts intergrated front panel, which can prevent the screen from mild droplets & dust. It also available for outdoor environment.

?

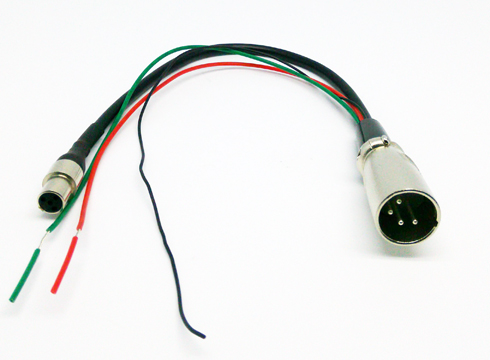

I/O control interface

The interface has functions such as connecting with reverse trigger line in car reversing system, and control computer host to switch on/off, etc. Functions also can be customized to meet different demands.

?

?

? ? ? ? ? ? ? ? ? ? ??car?reversing? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?trigger reversing image

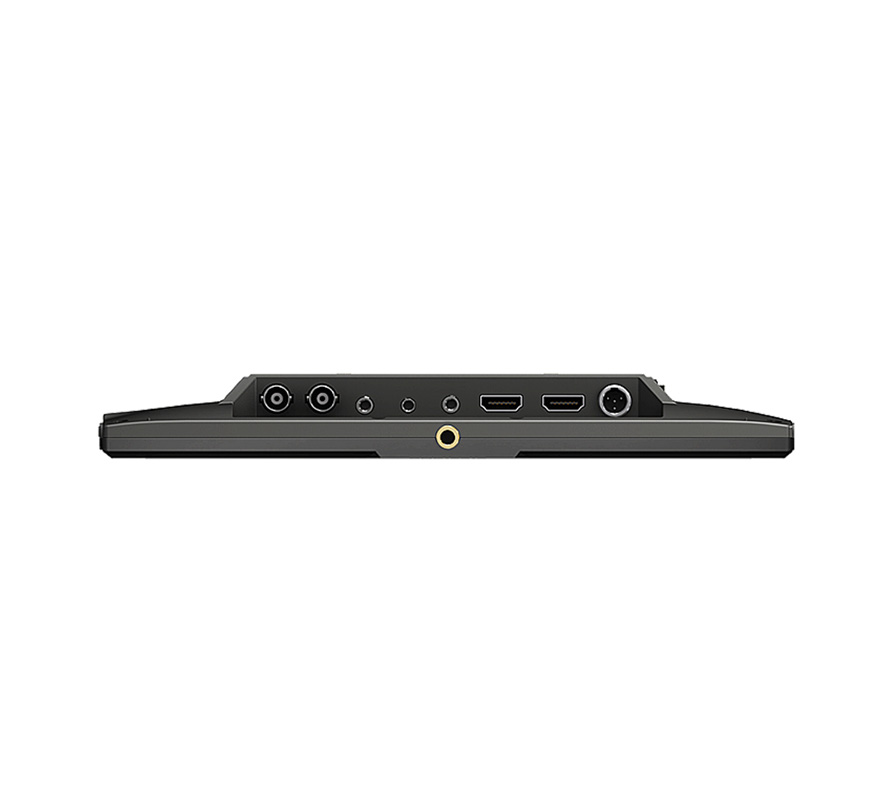

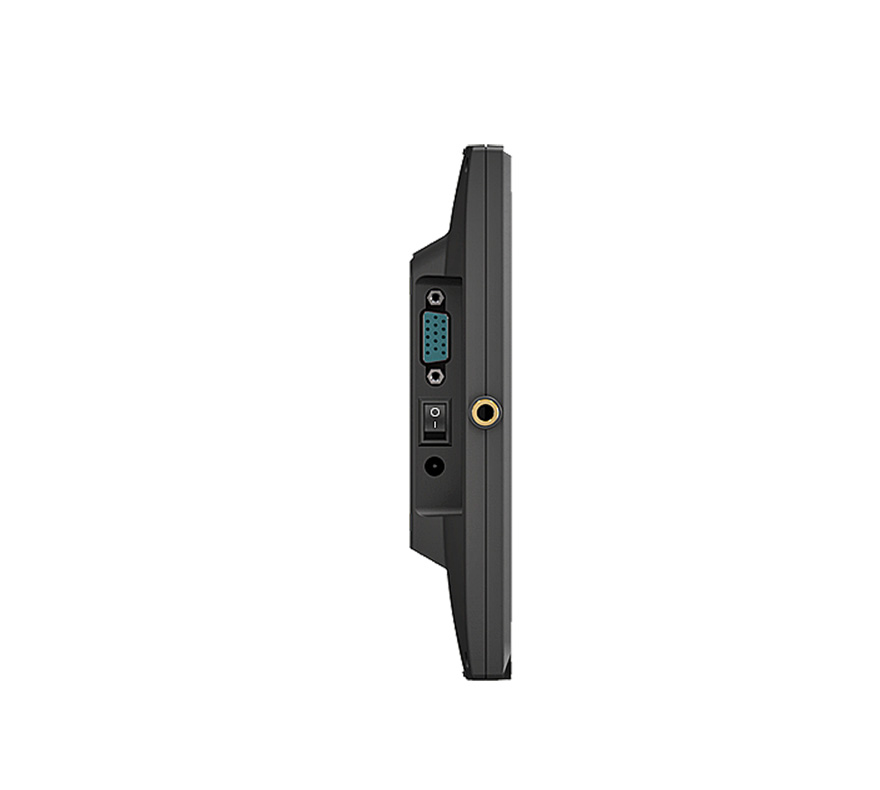

Abundant interfaces: 3G-SDI, HDMI, VGA & AV input

FA1014/S includes 3G-SDI connection to meet a broadcast professional needs. Composite and component through BNC connectors and HDMI inputs covers all the bases for common broadcast applications. It even includes one HDMI output, so no extra expensive HDMI splitters are required.



  Display Screen   10.1" LED IPS
  Resolution   1280 × 800, suport up to 1920 x 1080
  Aspect Ratio   16:9
  Contrast Ratio   800:1
  Brightness   350cd/㎡
  Viewing Angle   170°/170° (H/V)
  Input Signal   3G-SDI, HDMI, VGA, AV & DVI (optional)
  Output Signal   3G-SDI, HDMI
  I/O port   1
  Speaker   1
  Input Voltage   DC 7-24V

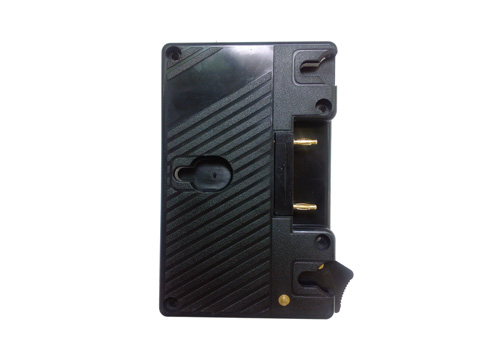

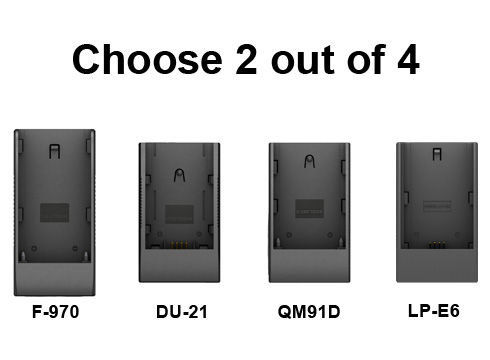

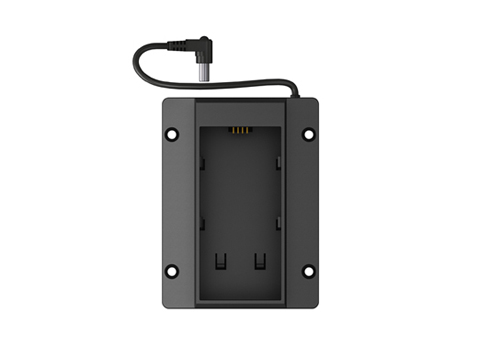

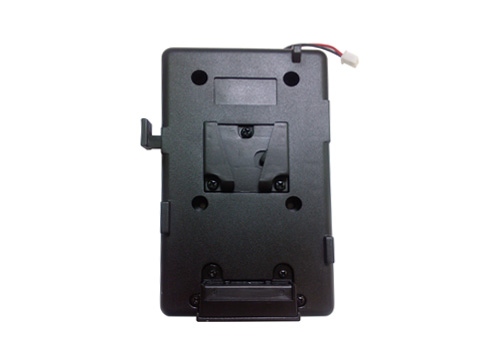

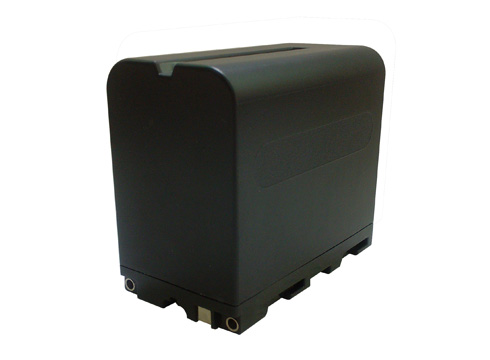

  Battery   External (optional)
  Current   800mA
  Power Consumption   ≤12W
  Audio Output   ≤1W
  Operating Temperature   -0℃~50℃
  Storage Temperature   -20℃~60℃
  Dimension(LWD)   250×170×32.3 mm
  Weight   660g
