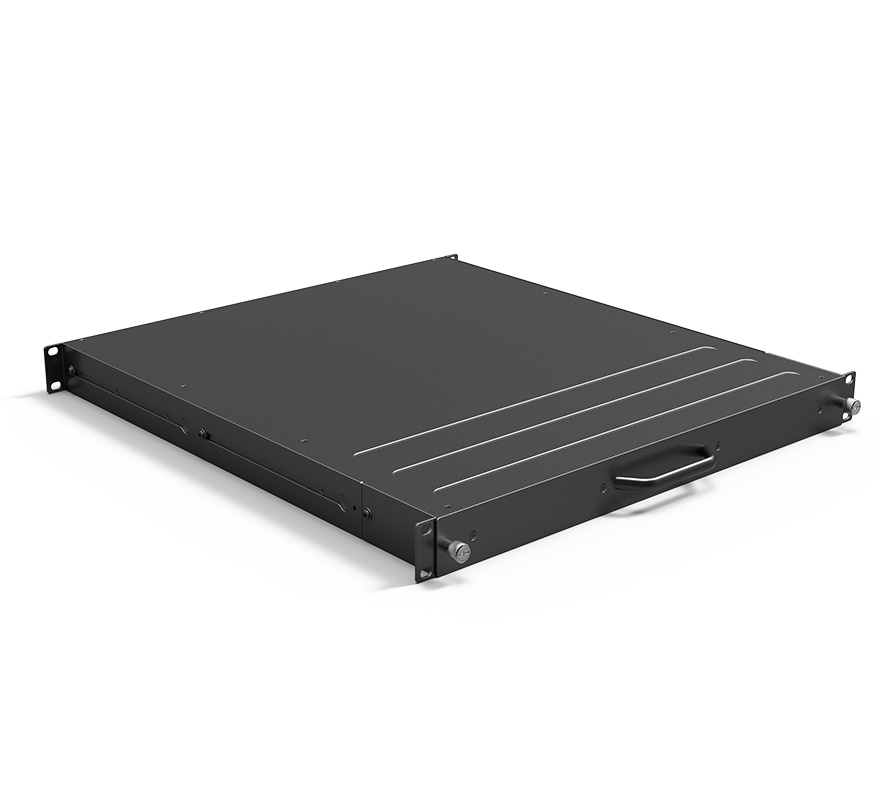

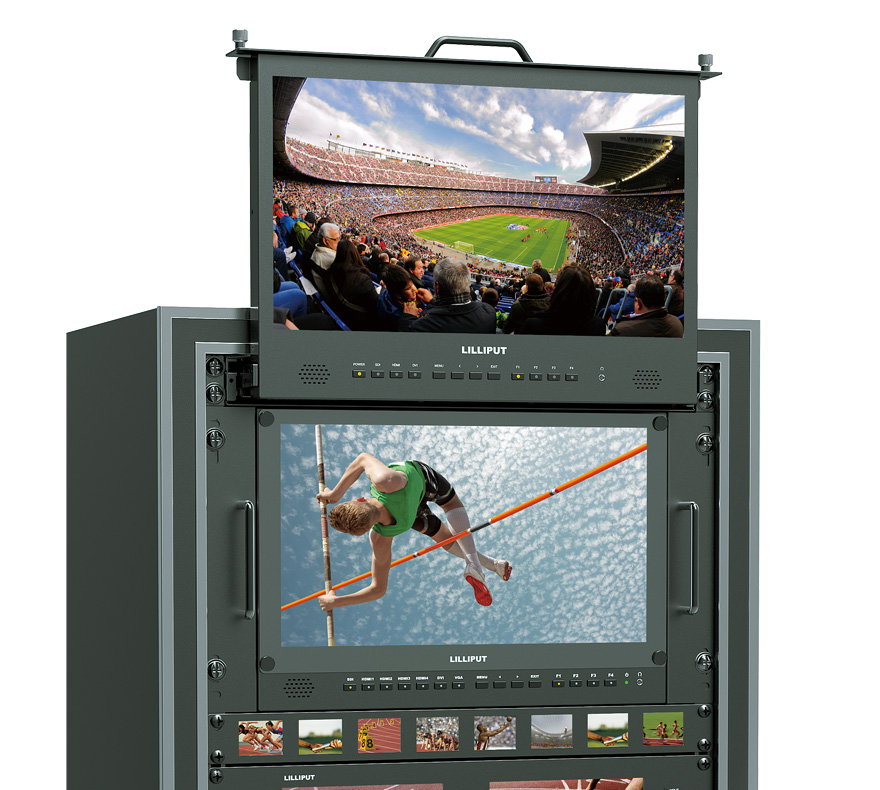

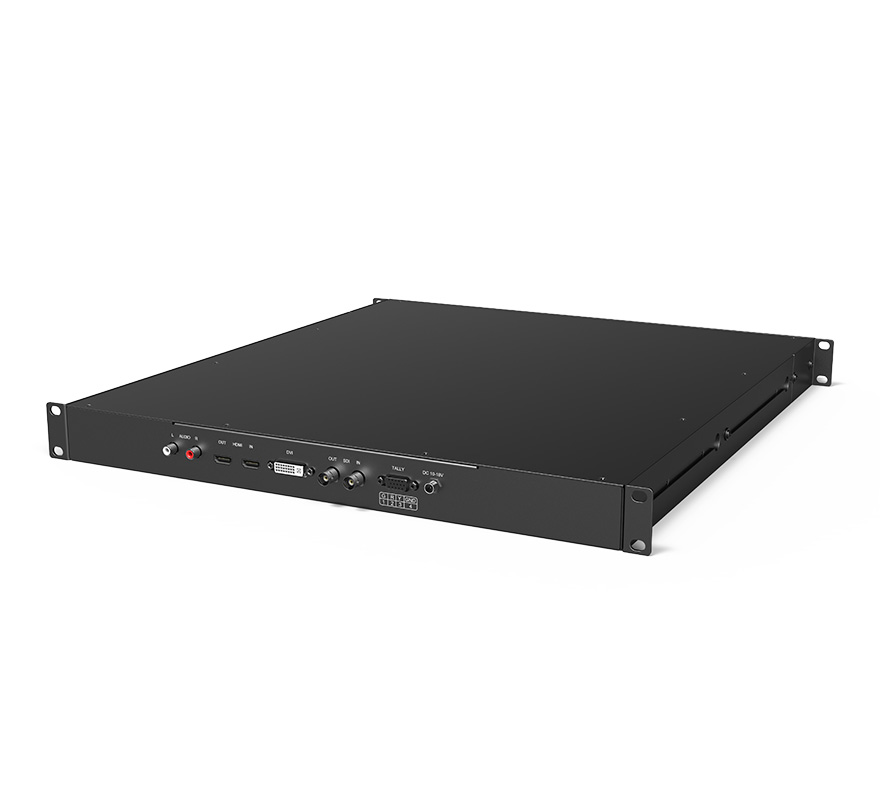

RM-1730S

17.3 inch Pull-out rackmount monitor

- 1920×1080, Full HD resolution,
- 300cd/m² high brightness,
- 700:1 high contrast,
- 1RU pull-out drawer type,
- 3G-SDI, HDMI, DVI, Audio & Tally inputs,
- SDI and HDMI cross conversion,
- Waveform PIP mode, vector,
- Column (YRGB peak), time code.

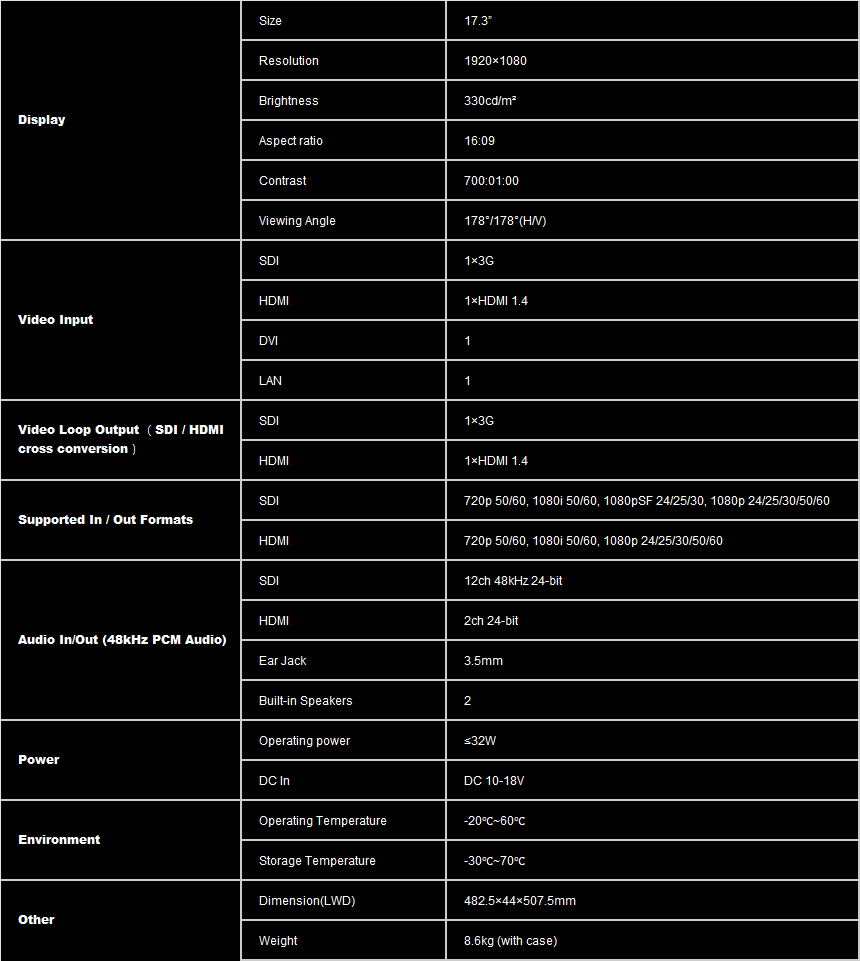

DISPLAY
   Display Screen   17.3" IPS
  Physical Resolution   1920×1080
  Aspect Ratio   16:9
  Brightness   300cd/m2
  Contrast   700:1
  Viewing Angle   178°/178°(H/V)
INPUT
   3G-SDI   1
  HDMI   1
  DVI   1
  AUDIO   2 (L/R)
  TALLY   1
OUTPUT
   3G-SDI   1
  HDMI   1
AUDIO
   Speaker   2
  Ear Phone Slot   1
SDI FORMAT
   SMPTE-125M   480i(59.94)
  1080i(60/59.94/50)
  1080p(30/29.97/25/24/24sF/23.98/23.98sF)
  SMPTE-292M   1080p(30/29.97/25/24/24sF/23.98/23.98sF)
  SMPTE-296M   720p(60/59.94/50/30/29/25/24/23.98)
  SMPTE-372M   720p(60/59.94/50)
  1080i(29.97/25/24/23.98)
  1080p(60/59.94/50/30/29.97/25/24/23.98)
  SMPTE-425M-AB
  -Level A & Level B		   1080p(60/59.94/50)
  1080i(60/59.94/50)
  720p(60/59.94/50/30/29.97/25/24/23.98)
  ITU-R BT.656   576i(50)
HDMI FORMAT
   Full HD ~ HD   1080p, 1080i, 720p, 576p, 576i, 480p, 486i
POWER
   Current   2.8A
  Input Voltage   DC 10-18V
  Power Consumption   ≤32W
ENVIRONMENT
   Operating Temperature   -20℃～60℃
  Storage Temperature   -30℃～70℃
DIMENSION
   Dimension(LWD)   482.5×44×507.5mm
  Weight   8.6Kg
