RM-0208S

8×2 inch 1RU rackmount monitor

- 8×2" 8bit TFT LCD, 640×240 resolution
- SDI equalization and re-clocking
- 300:1 high contrast
- 8×3G-SDI in & 8×3G-SDI loopout
- 32 half-width characters UMD
- Audio level meter & time code
- 1Rack Unit standard
- RS422 for remote control

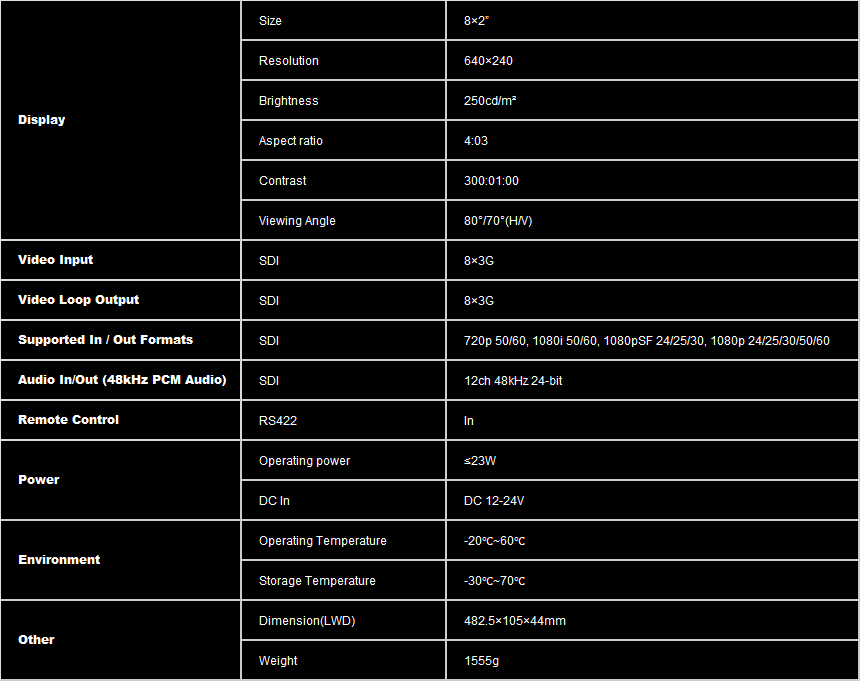

DISPLAY
   Display Screen   8×2" 8bit TFT LCD
  Physical Resolution   640×240,supports up to 1920×1080
  Aspect Ratio   4:3
  Brightness   250cd/m2
  Contrast   300:1
  Viewing Angle   80°/70°(H / V)
INPUT
   3G-SDI   8
  RS422   1
OUTPUT
   3G-SDI   8
SDI FORMAT
   SMPTE-125M   480i(59.94)
  1080i(60/59.94/50)
  1080p(30/29.97/25/24/24sF/23.98/23.98sF)
  SMPTE-292M   1080p(30/29.97/25/24/24sF/23.98/23.98sF)
  SMPTE-296M   720p(60/59.94/50/30/29/25/24/23.98)
  SMPTE-372M   720p(60/59.94/50)
  1080i(29.97/25/24/23.98)
  1080p(60/59.94/50/30/29.97/25/24/23.98)
  -Level A & Level B   720p(60/59.94/50/30/29.97/25/24/23.98)
  ITU-R BT.656   576i(50)
POWER
   Current   1500mA/15V
  Input Voltage   DC 12-24V
  Power Consumption   ≤23W
ENVIRONMENT
   Operating Temperature   -20℃~60℃
  Storage Temperature   -30℃~70℃
DIMENSION

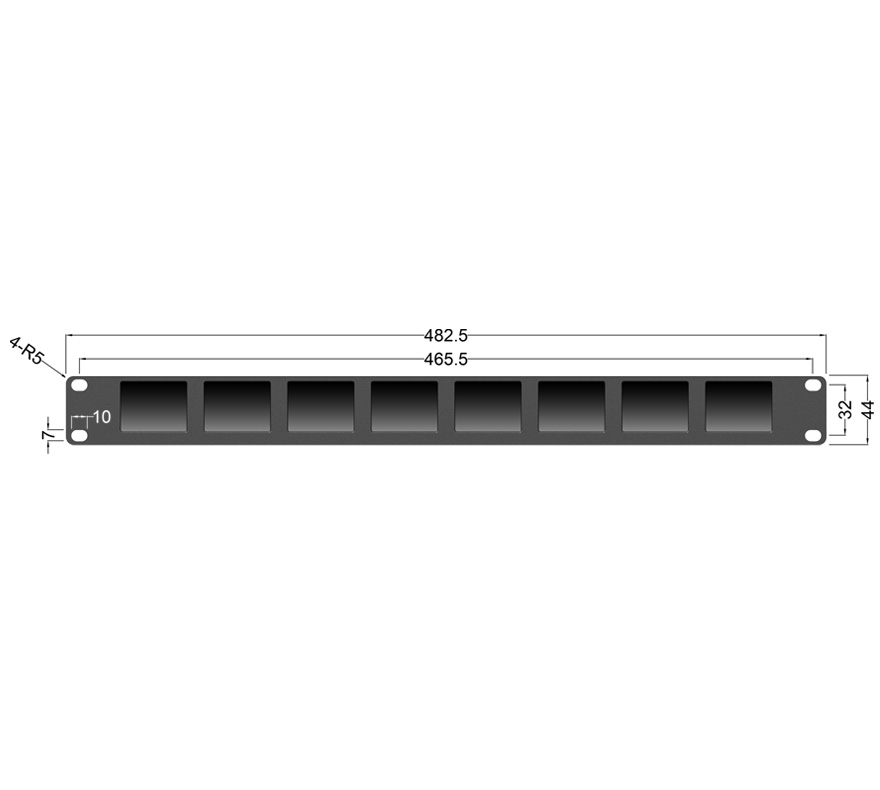

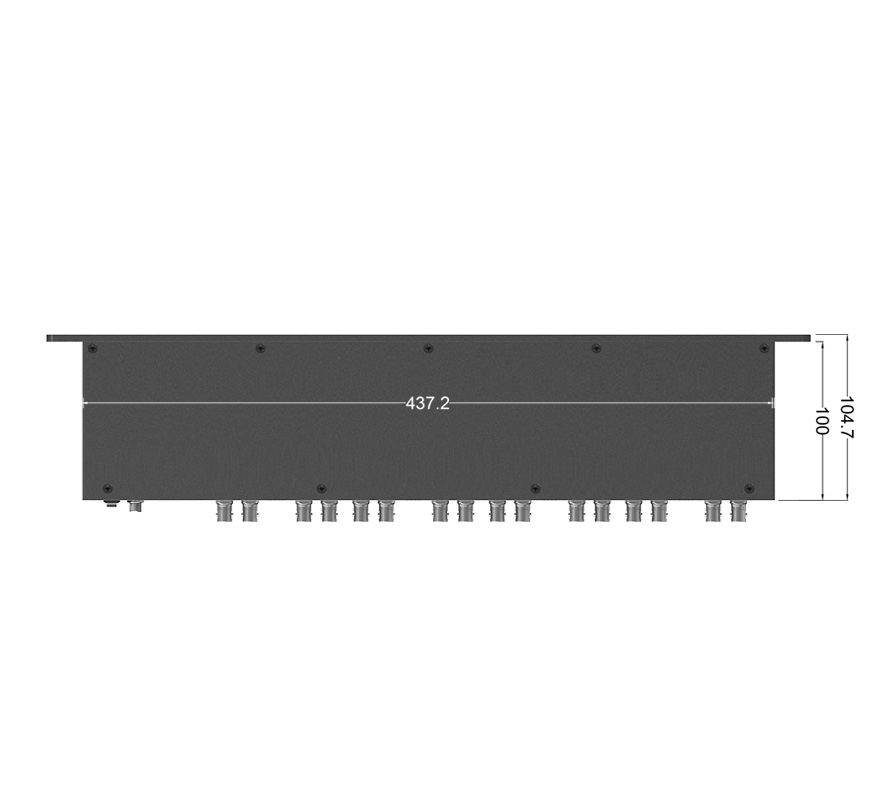

   Dimension(LWD)   482.5×105×44mm
  Weight   1555g
