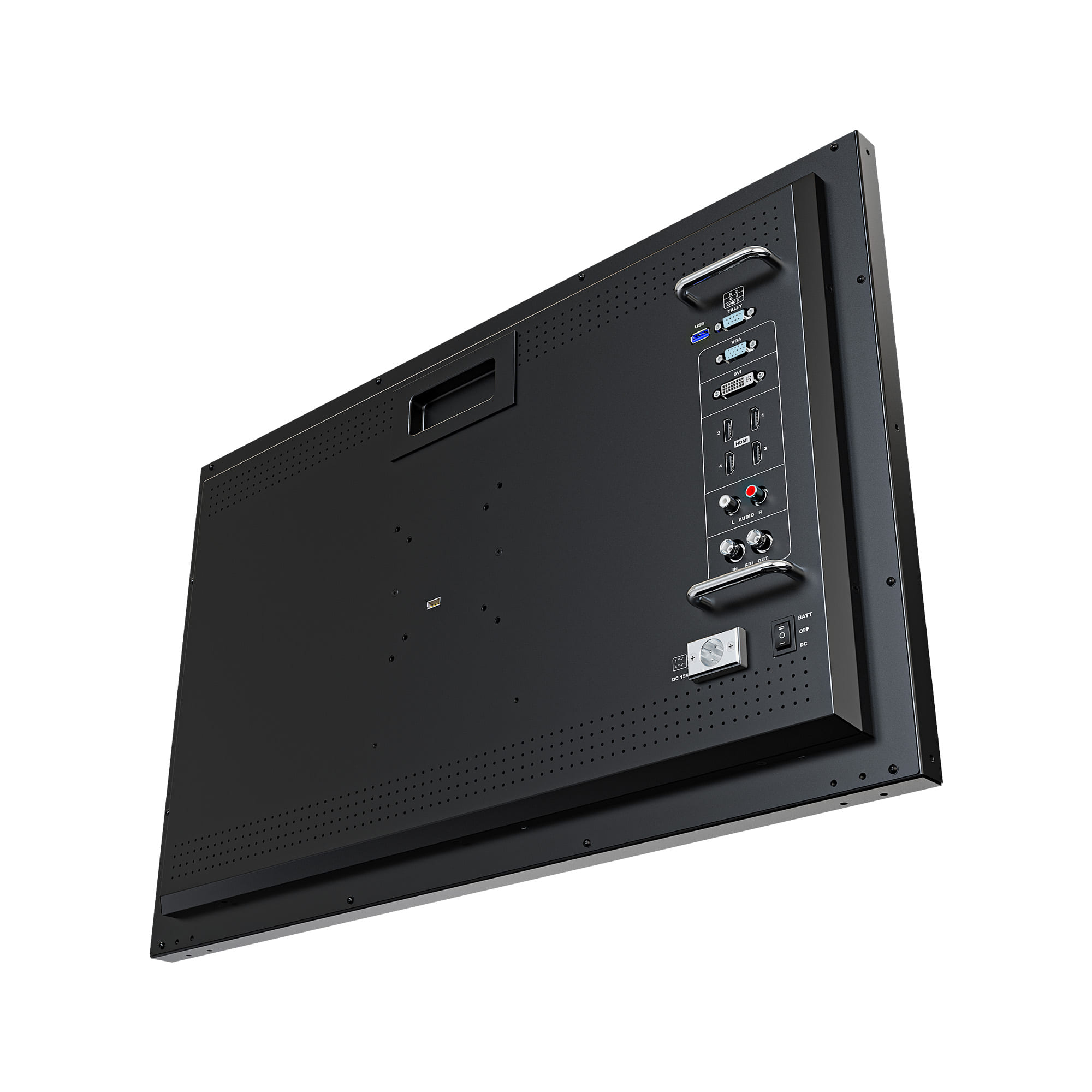

BM281-4KS

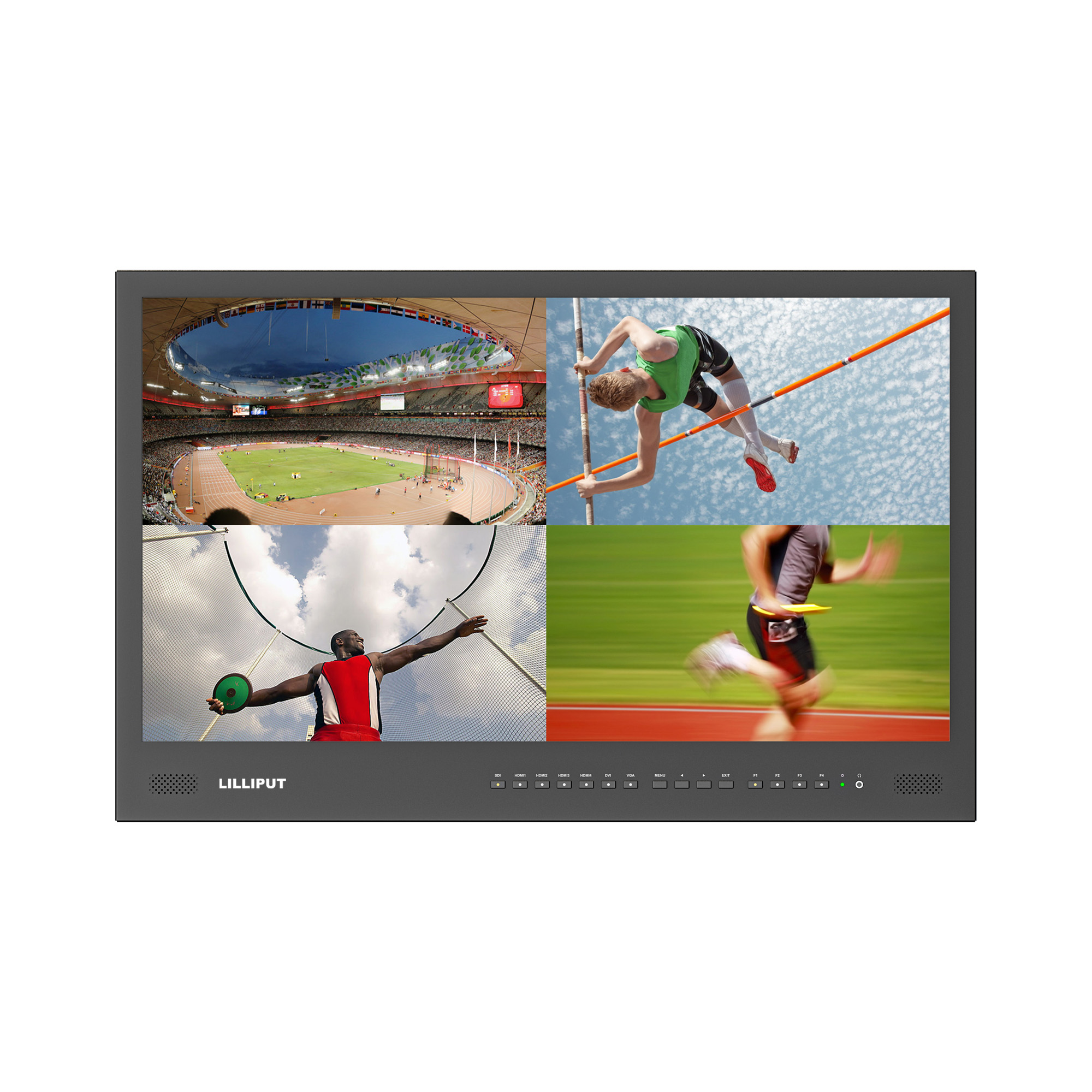

28 inch carry on 4K Broadcast director monitor

Model:BM281-4KS
Physical resolution:3840x2160
SDI interface:Support 3G-SDI input and loop output
HDMI 2.0 interface:Support 4K HDMI signal
Feature:3D-LUT, HDR...

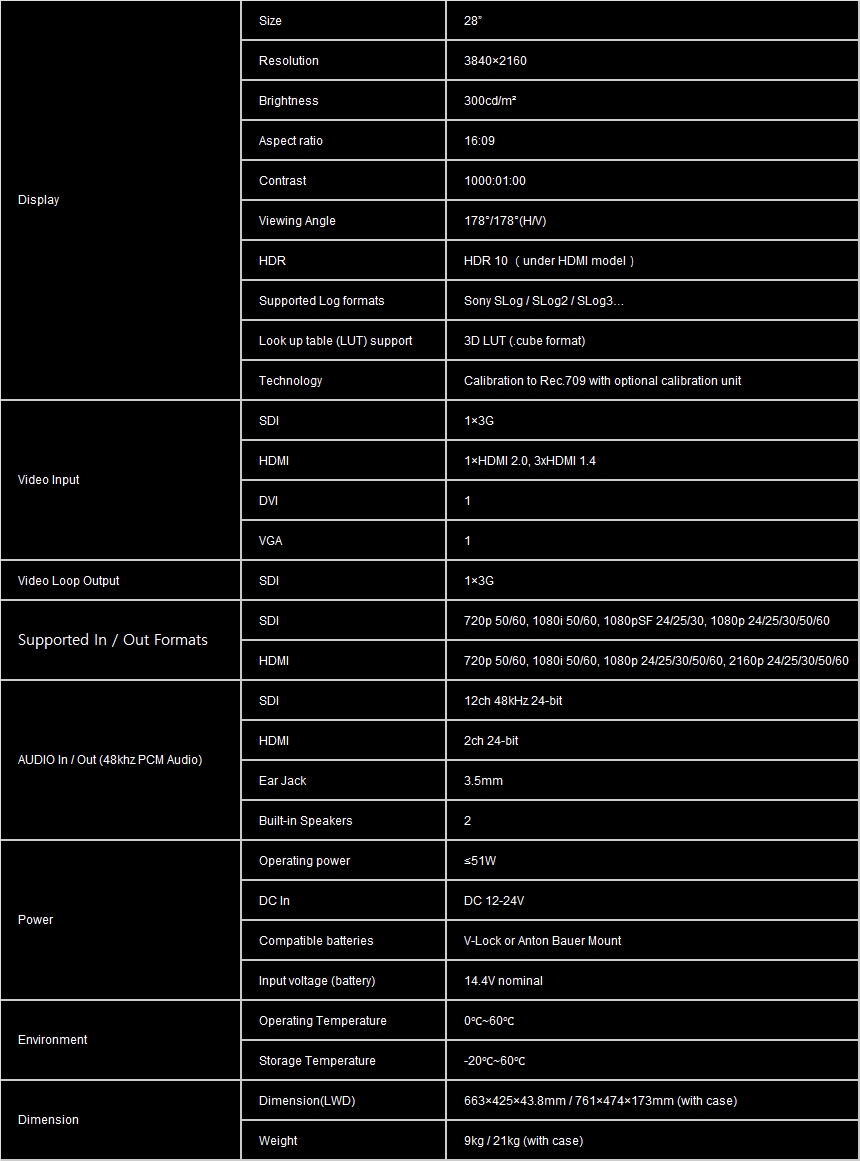

Display
Size28”
Resolution3840×2160
Brightness300cd/m²
Aspect ratio16:9
Contrast1000:1
Viewing Angle178°/178°(H/V)
HDRHDR 10 （under HDMI model）
Supported Log formatsSony SLog / SLog2 / SLog3…
Look up table (LUT) support3D LUT (.cube format)
TechnologyCalibration to Rec.709 with optional calibration unit

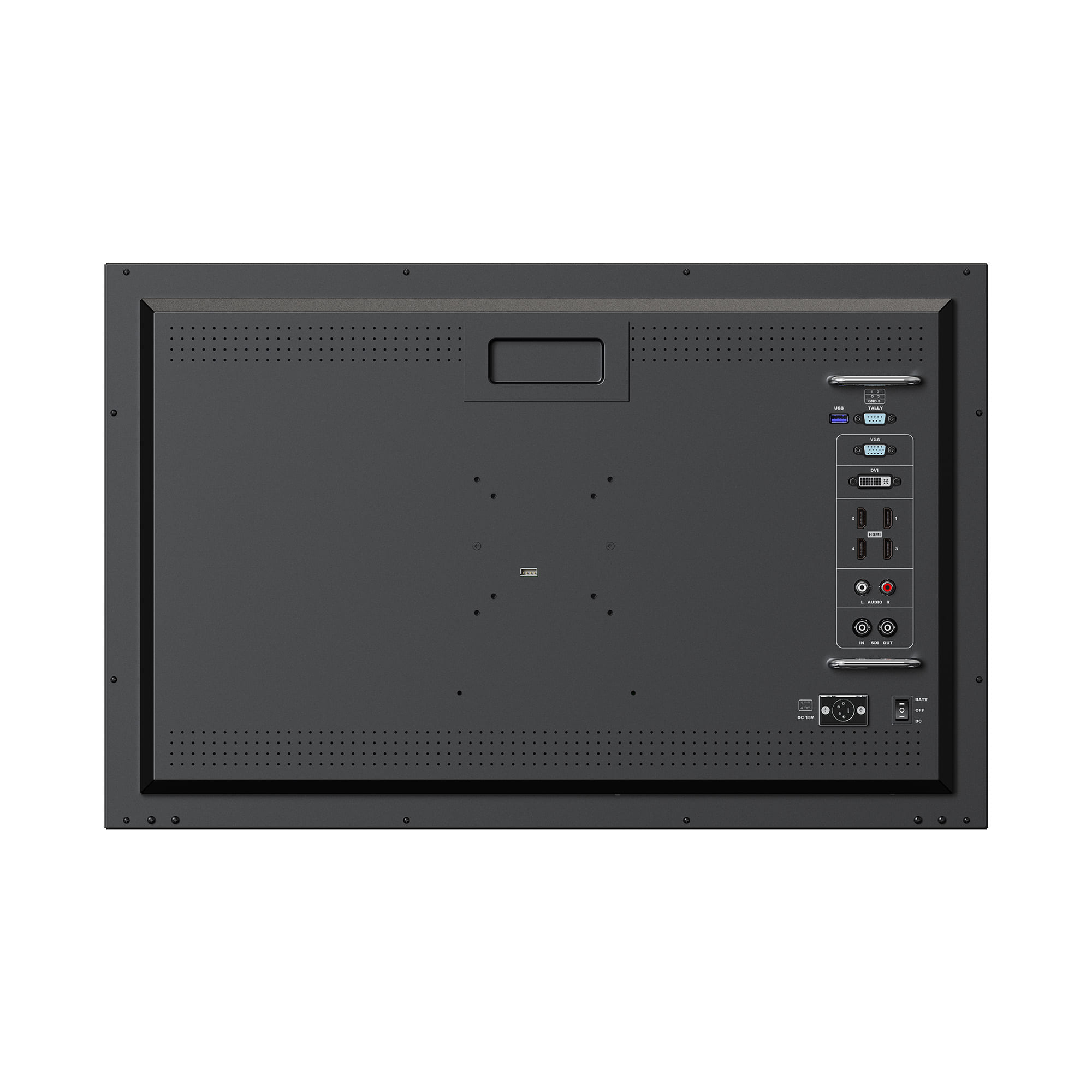

Video Input
SDI1×3G
HDMI1×HDMI 2.0, 3xHDMI 1.4
DVI1

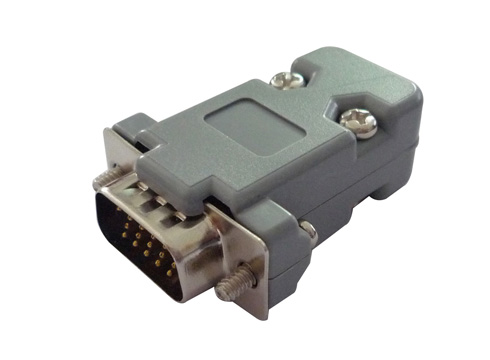

VGA1
Video Loop Output
SDI1×3G
Supported In / Out Formats
SDI720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60
HDMI720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
Audio In/Out (48kHz PCM Audio)
SDI12ch 48kHz 24-bit
HDMI2ch 24-bit
Ear Jack3.5mm
Built-in Speakers2
Power
Operating power≤51W

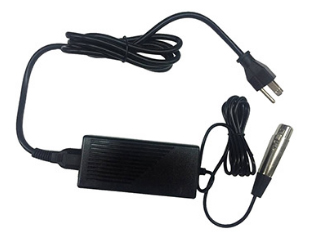

DC InDC 12-24V

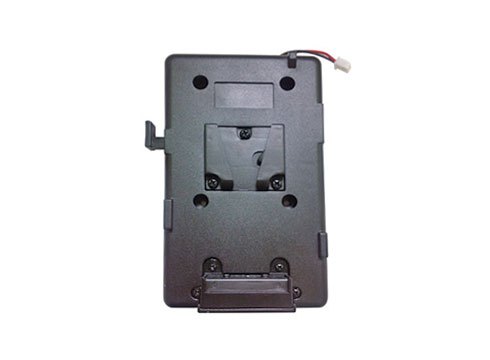

Compatible batteriesV-Lock or Anton Bauer Mount
Input voltage (battery)14.4V nominal
Environment
Operating Temperature0℃~60℃
Storage Temperature-20℃~60℃
Other

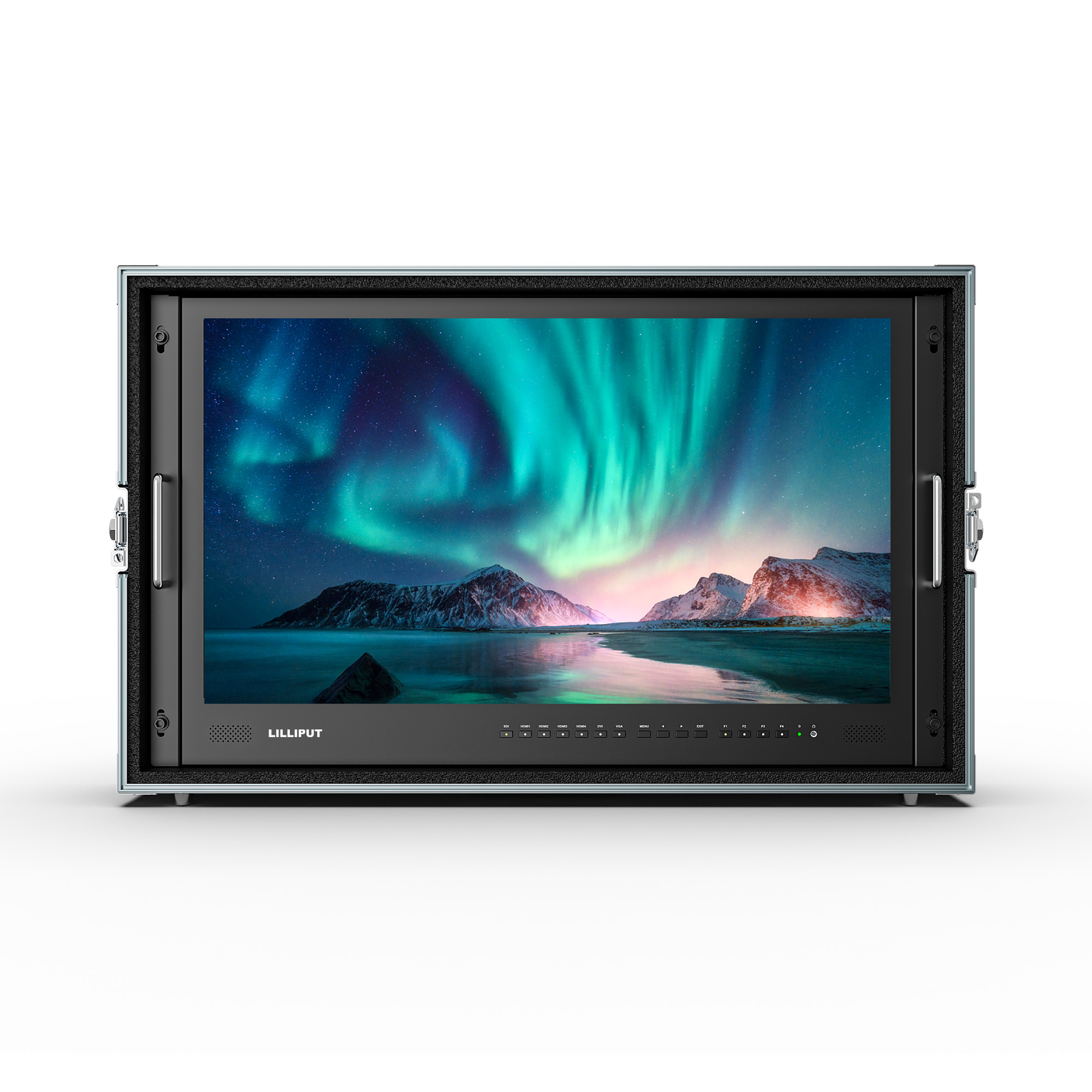

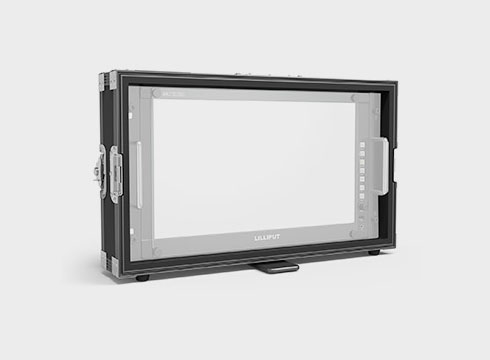

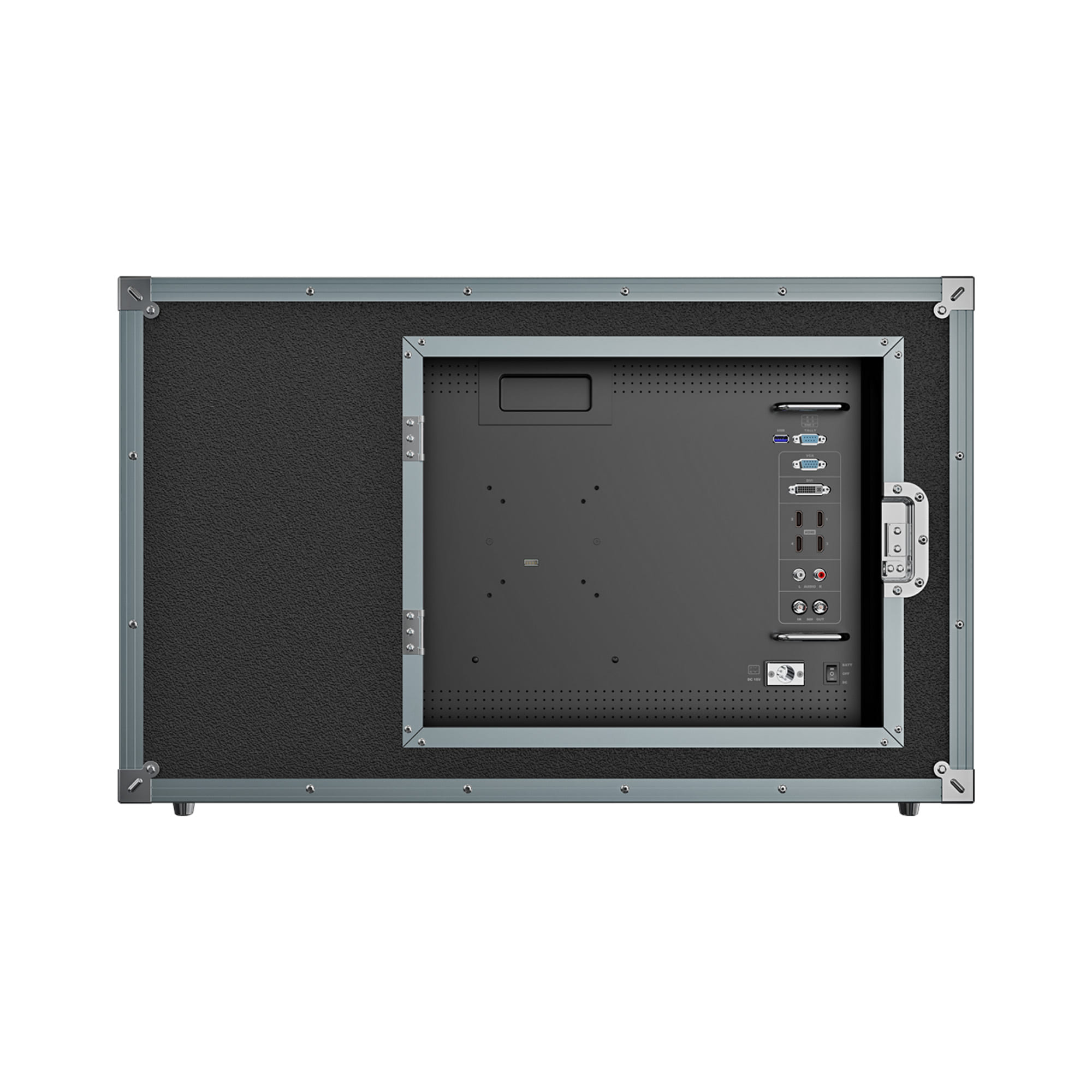

Dimension(LWD)663×425×43.8mm / 761×474×173mm (with case)
Weight9kg / 21kg (with case)
