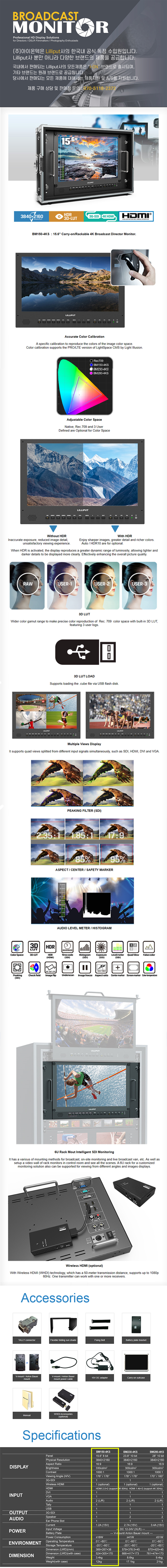

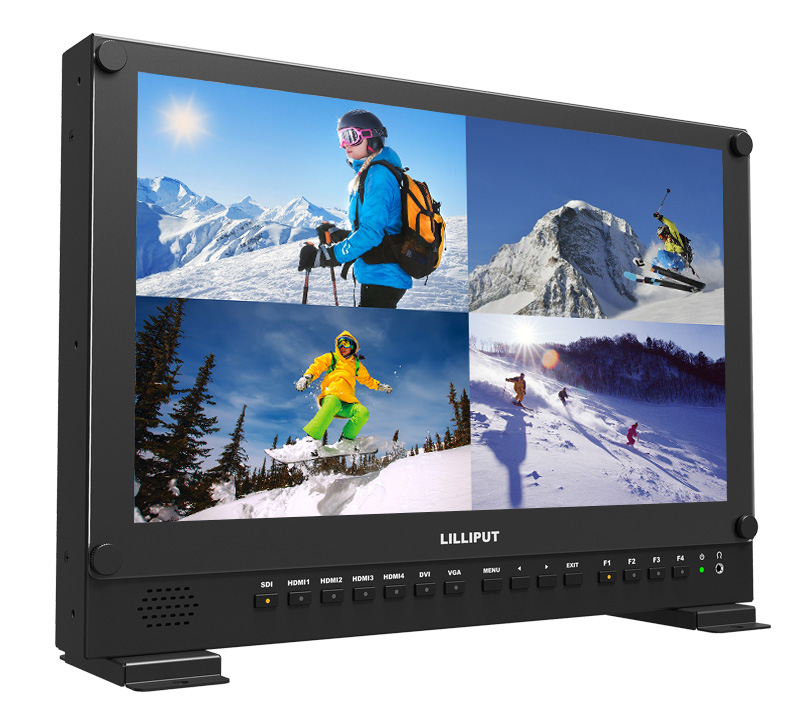

BM150-4KS

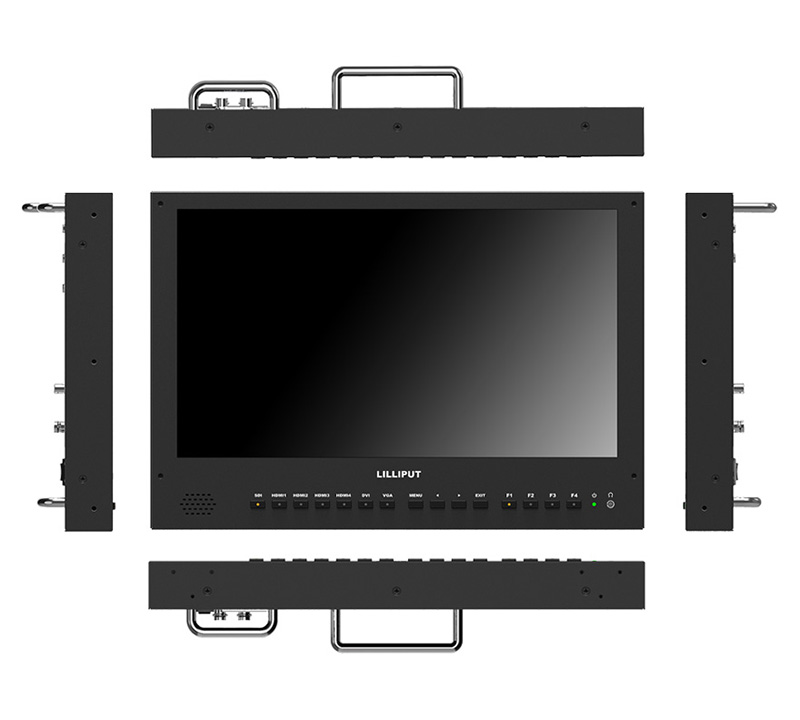

15.6 inch carry on 4K Broadcast director monitor

- 4K (3840*2160) Ultra-HD native resolution ,

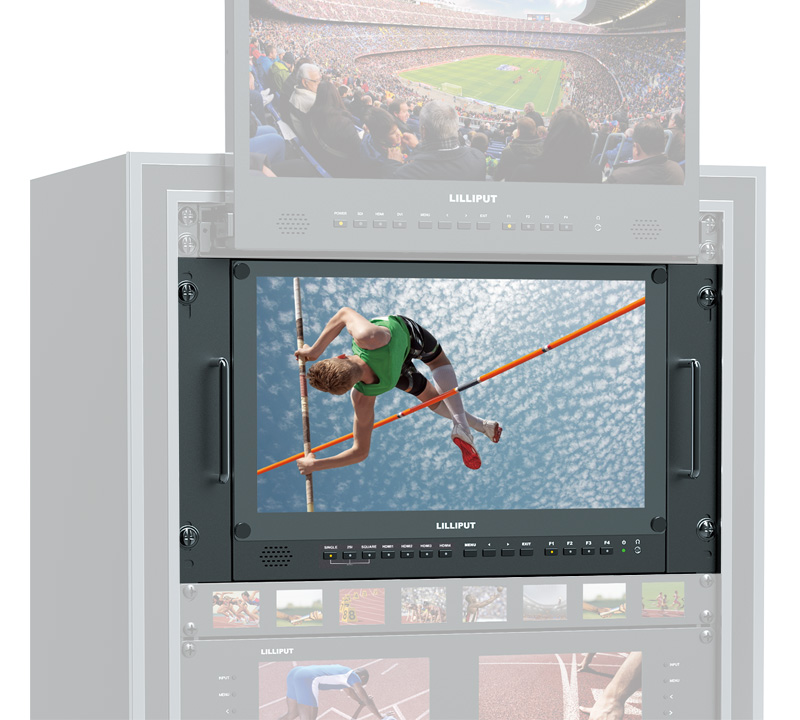

- 15.6" perfect size for both suitcase & rackmount,
- HDR, 3D-LUT & Color space,
- Peaking, False color & Time code,
- High contrast: 1000:1,
- 176° Ultra high viewing angle,

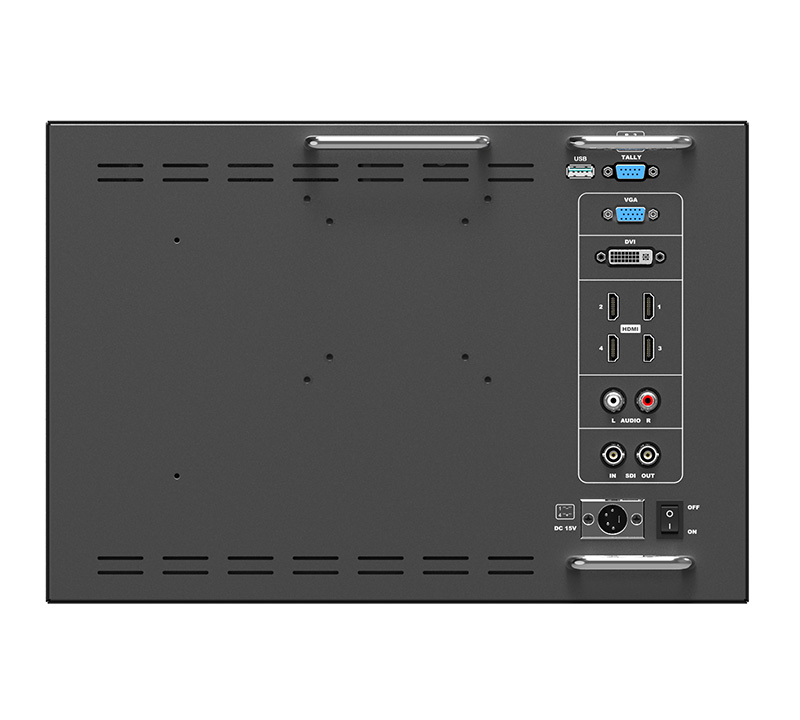

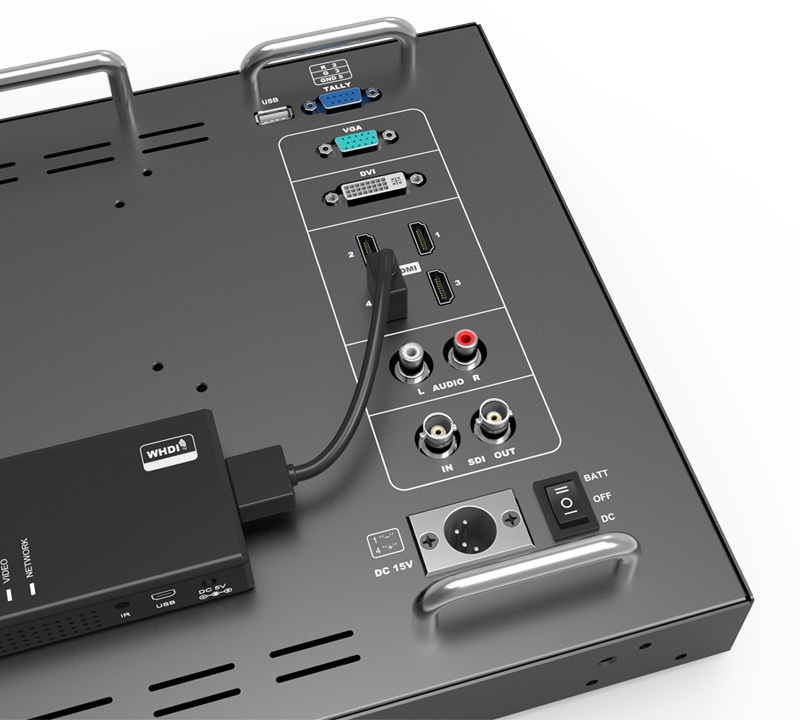

- Rich interfaces: 3G-SDI, HDMI, DVI, VGA, AV input,
- Wide voltage: DC12-24V.

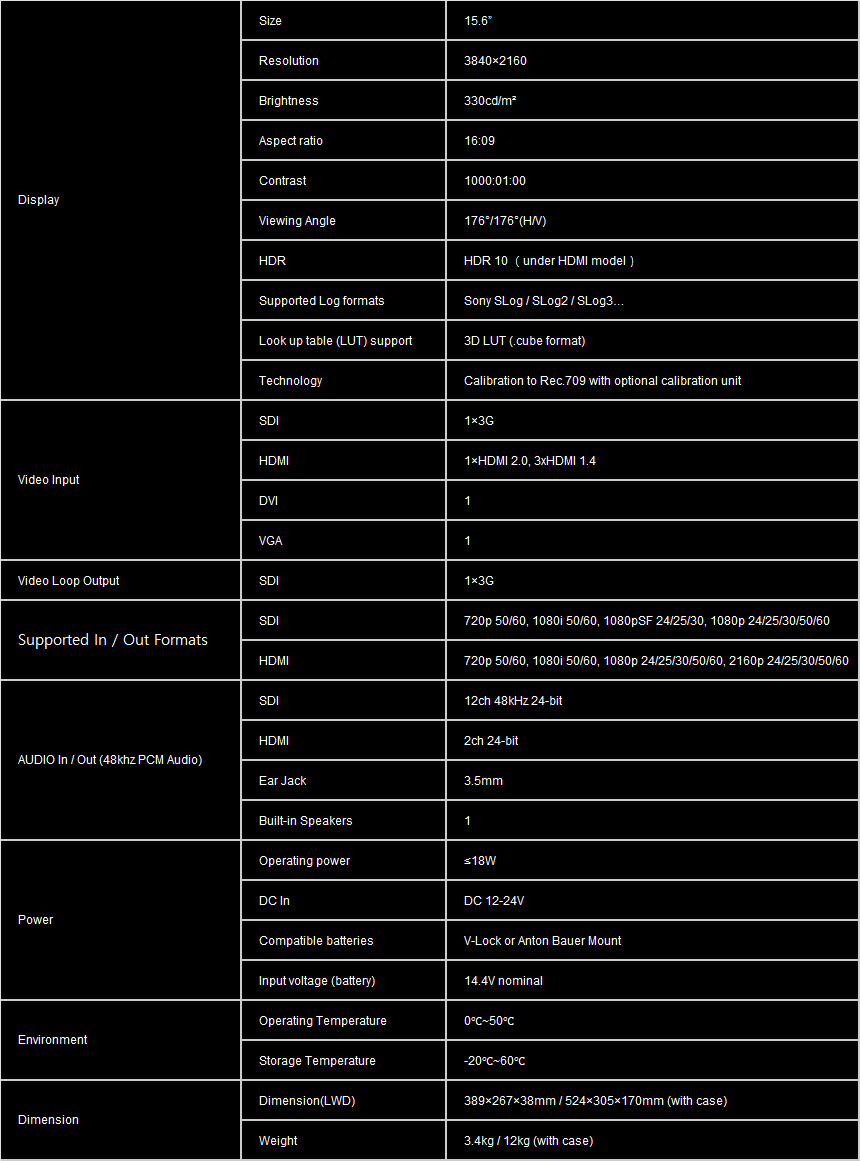

DISPLAY
   Display Screen   15.6”  8bit
  Physical Resolution   3840×2160, 4K
  Aspect Ratio   16:9
  Brightness   330cd/m²
  Contrast   1000:1
  Viewing Angle   176°/176°(H/V)
INPUT
   3G-SDI   1

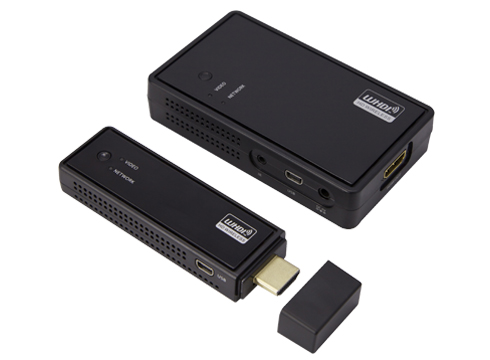

  Wireless HDMI   1 (optional)
  HDMI   HDMI 2.0×1 (4K@60Hz) HDMI 1.4×3 (4K@30Hz)
  DVI   1
  VGA   1
  USB   1 (3D-LUT)
  Audio   2 (L/R)

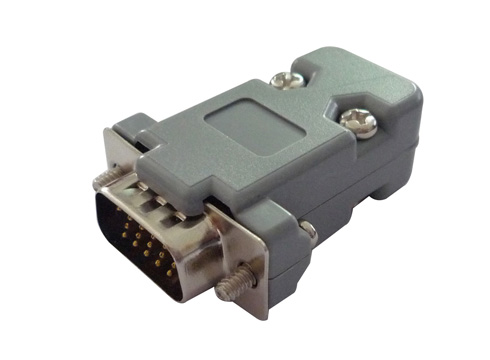

  TALLY   1
OUTPUT
   3G-SDI   1
AUDIO
   Speaker   1
  Ear Phone Slot   1
POWER
   Current   1.2A (15V)

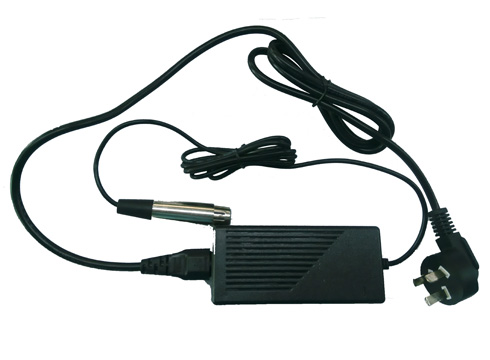

  Input Voltage   DC 12-24V (XLR)

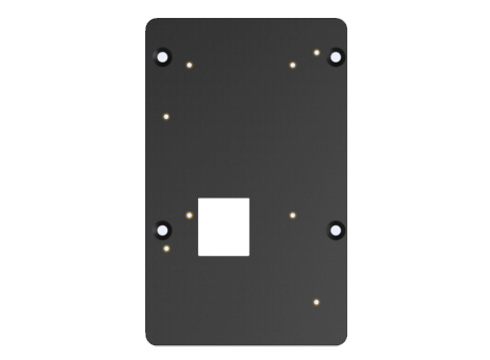

  Battery Plate   V-mount / Anton Bauer mount
  Power Consumption   ≤18W
ENVIRONMENT
   Operating Temperature   0℃～60℃
  Storage Temperature   -20℃～60℃
DIMENSION
   Dimension(LWD)

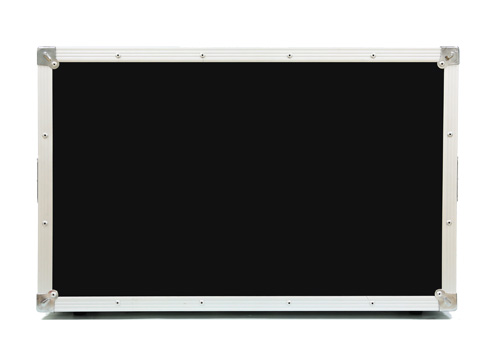

  389×267×38mm / 524×305×170mm (with case)
  Weight   3.4kg / 12kg (with case)
SDI Format

 SMPTE-125M

   480i(59.94)
  SMPTE-274M

  1080i(60/59.94/50)

  1080p(30/29.97/25/24/24sF/23.98/23.98sF)
  SMPTE-292M   1080p(30/29.97/25/24/24sF/23.98/23.98sF)
  SMPTE-296M

  720p(60/59.94/50/30/29/25/24/23.98)

  720p(60/59.94/50)
  SMPTE-372M

  1080i(29.97/25/24/23.98)

  1080p(60/59.94/50/30/29.97/25/24/23.98)
  SMPTE-425M   1080p(60/59.94/50)
  ITU-R BT.656   576i(50)
HDMI Format
   4K   4096×2160  / 3840×2160
  Other   1080p, 1080i, 720p, 720i, 480p ...
