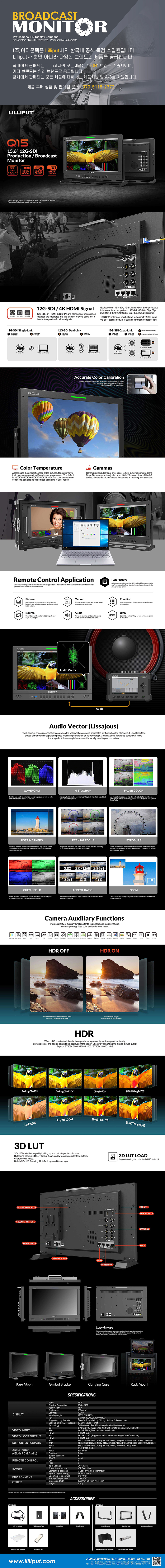

Q15

15.6 inch broadcast production studio monitor

- Display: 15.6 inch, 3840 X 2160, 330nits
- Input: 12G-SDI, 12-SFP,HDMI 2.0
- Output: 12G-SDI,HDMI 2.0
- Remote Control: RS422 ,GPI , LAN
- Feature: 3D-LUT, HDR,Gammas,Remote Control ,Audio vector ,Camera Auxiliary Functions





DISPLAY Panel 15.6″
Physical Resolution 3840*2160
Aspect Ratio 16:09
Brightness 330 cd/m²
Contrast 1000:01:00
Viewing Angle 176°/176°（H/V)
HDR ST2084 300/1000/10000/HLG
Supported Log Formats SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User…
Look up Table(LUT)support 3D LUT (.cube format)
Technology Calibration to Rec.709 with optional calibration unit
VIDEO INPUT SDI 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
SFP 1×12G SFP+(Fiber module for optional)
HDMI 1×HDMI 2.0
VIDEO LOOP OUTPUT SDI 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
HDMI 1×HDMI 2.0
SUPPORTED FORMATS SDI 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
SFP 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
HDMI 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
AUDIO IN/OUT                   (48KHz PCM AUDIO) SDI 16ch 48kHz 24-bit
HDMI 8ch 24-bit
Ear Jack 3.5mm
Built-in Speakers 2
REMOTE CONTROL RS422 In/out
GPI 1
LAN 1
POWER Input Voltage DC 12-24V
Power Consumption ≤32.5W (15V)
Compatible Batteries V-Lock or Anton Bauer Mount
Input Voltage(battery) 14.8V nominal
ENVIRONMENT Operating Temperature 0℃~40℃
Storage Temperature -20℃~60℃
OTHER Dimension(LWD) 393mm × 267mm × 51.4mm
Weight 2.9kg
