Q43-8K

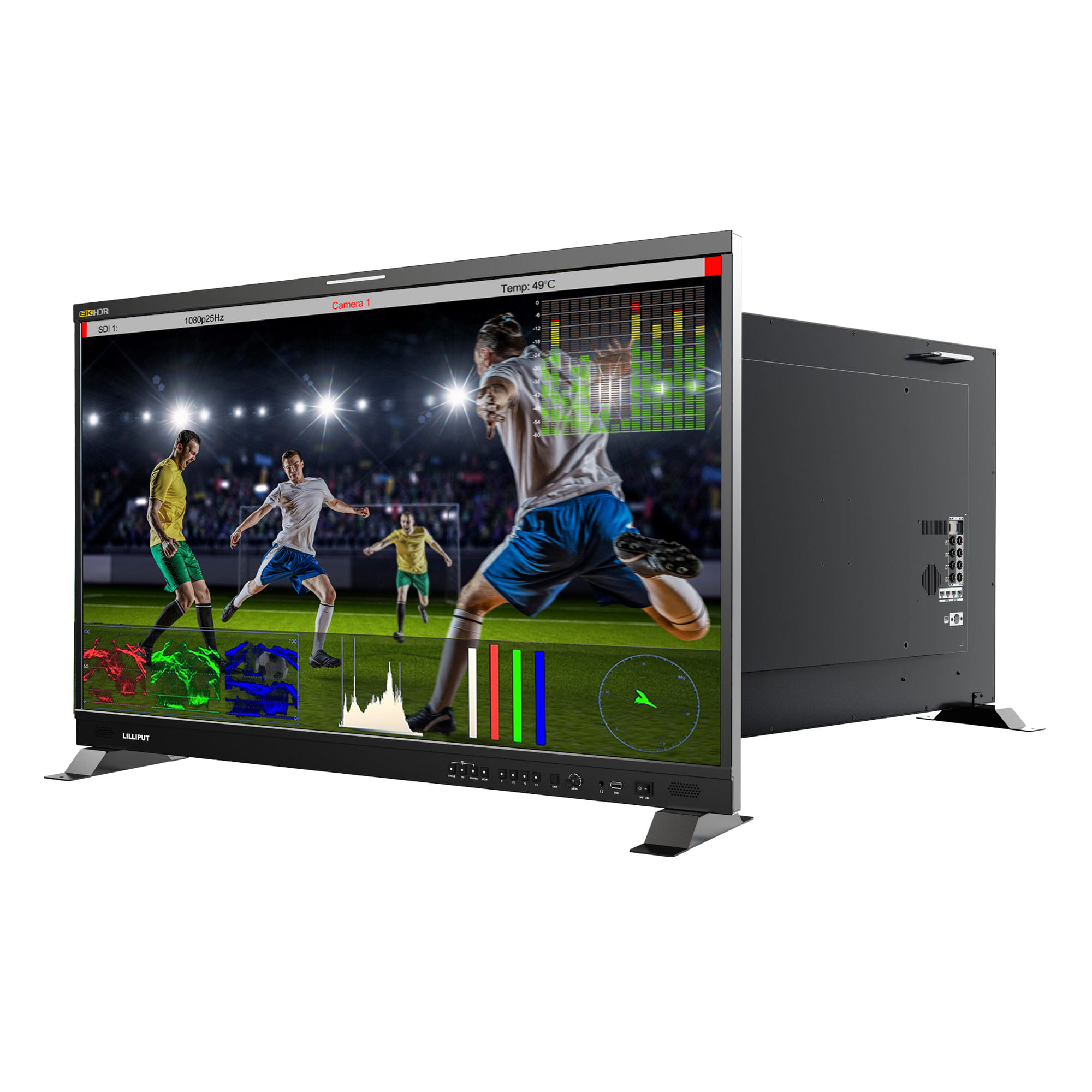

43 inch 8K 12G-SDI 3840×2160 studio production monitor

Model:Q43-8K
Display:43 inch, 3840 X 2160, 400nits

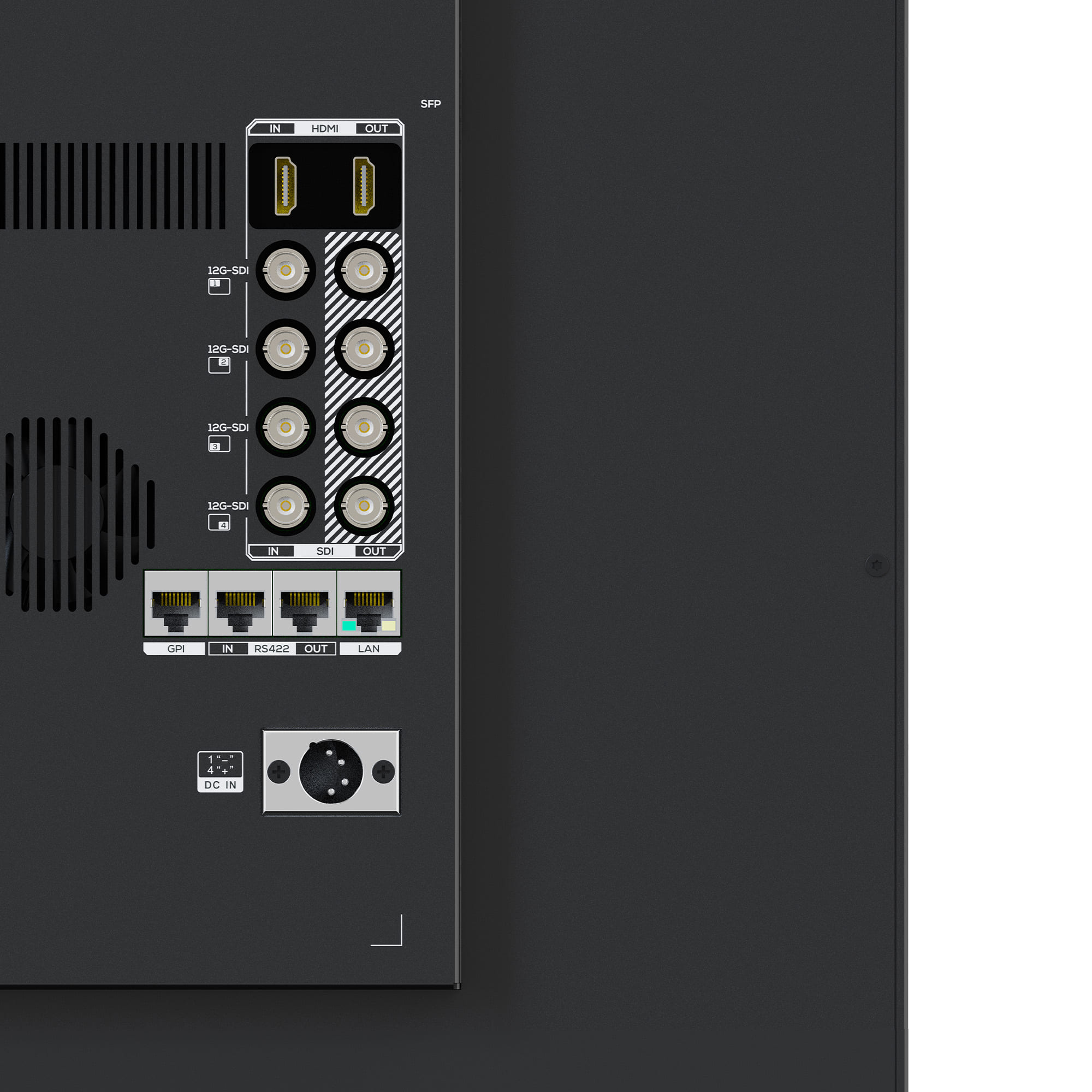

Input:12G-SDI, 12G-SFP, HDMI 2.0
Output:12G-SDI, HDMI 2.0
Remote Control:RS422, GPI , LAN

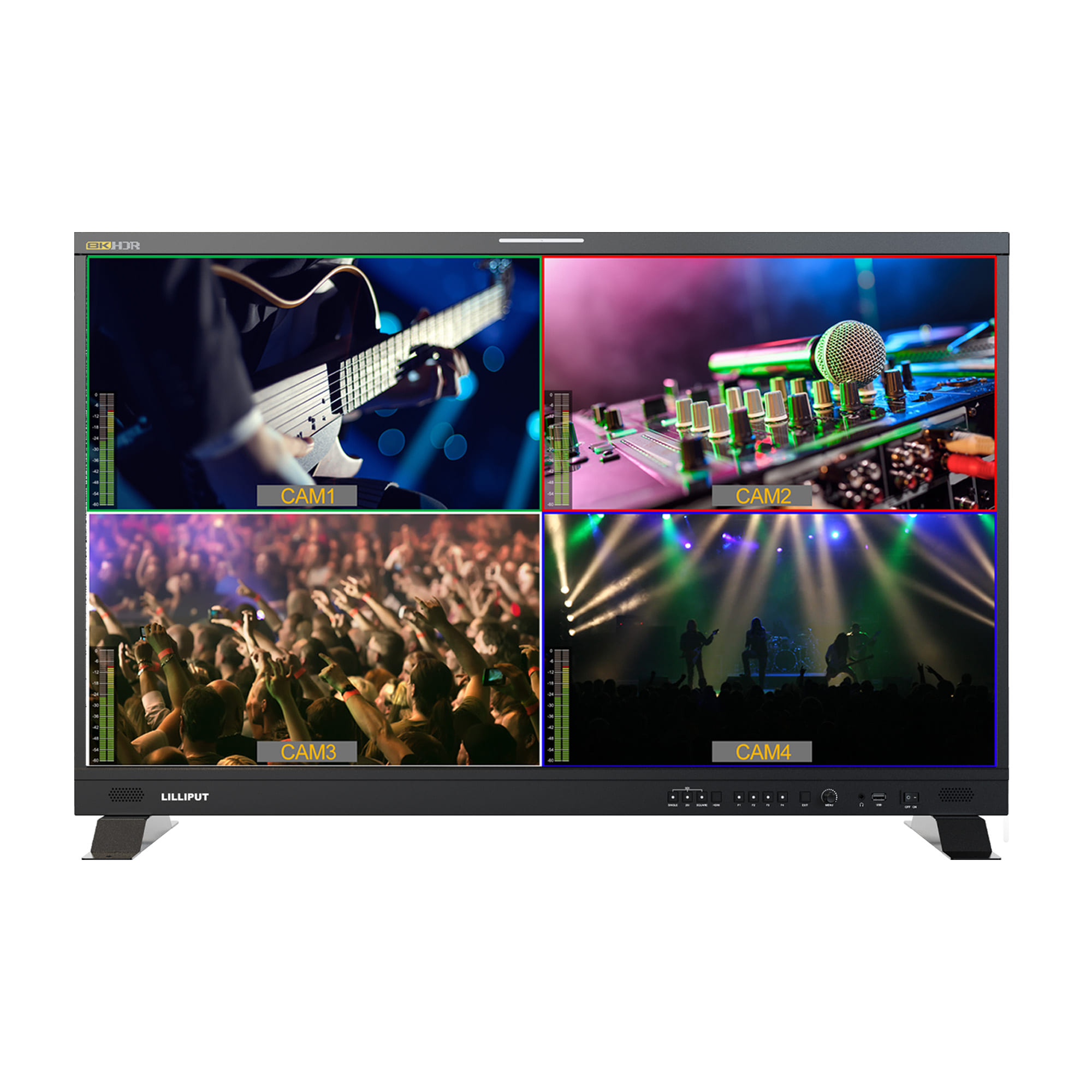

Feature:Quad View, 3D-LUT, HDR, Gammas, Remote Control, Audio vector...





DISPLAYPanel43″
Physical Resolution3840*2160
Aspect Ratio16:9
Brightness400 cd/m²
Contrast1200：1
Viewing Angle178°/178°（H/V)
HDRST2084 300/1000/10000/HLG
Supported Log FormatsSLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User…
Look up Table(LUT)support3D LUT (.cube format)
TechnologyCalibration to Rec.709 with optional calibration unit
VIDEO INPUTSDI4×12G (Supported 8K-SDI Formats Quad Link)

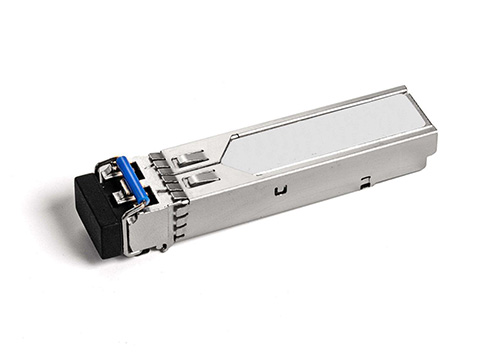

SFP1×12G SFP+(Fiber module for optional)
HDMI1×HDMI 2.0
VIDEO LOOP OUTPUTSDI4×12G (Supported 8K-SDI Formats Quad Link)
HDMI1×HDMI 2.0
SUPPORTED FORMATSSDI4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
SFP2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
HDMI2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
AUDIO IN/OUT (48kHz PCM AUDIO)SDI16ch 48kHz 24-bit
HDMI8ch 24-bit
Ear Jack3.5mm
Built-in Speakers2
REMOTE CONTROLRS422In/out
GPI1
LAN1

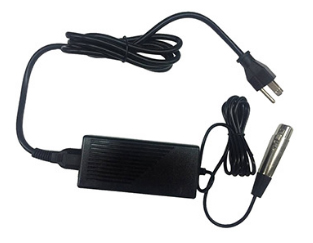

POWERInput VoltageDC 24V
Power Consumption≤77W (24V)
ENVIRONMENTOperating Temperature0℃~50℃
Storage Temperature-20℃~60℃

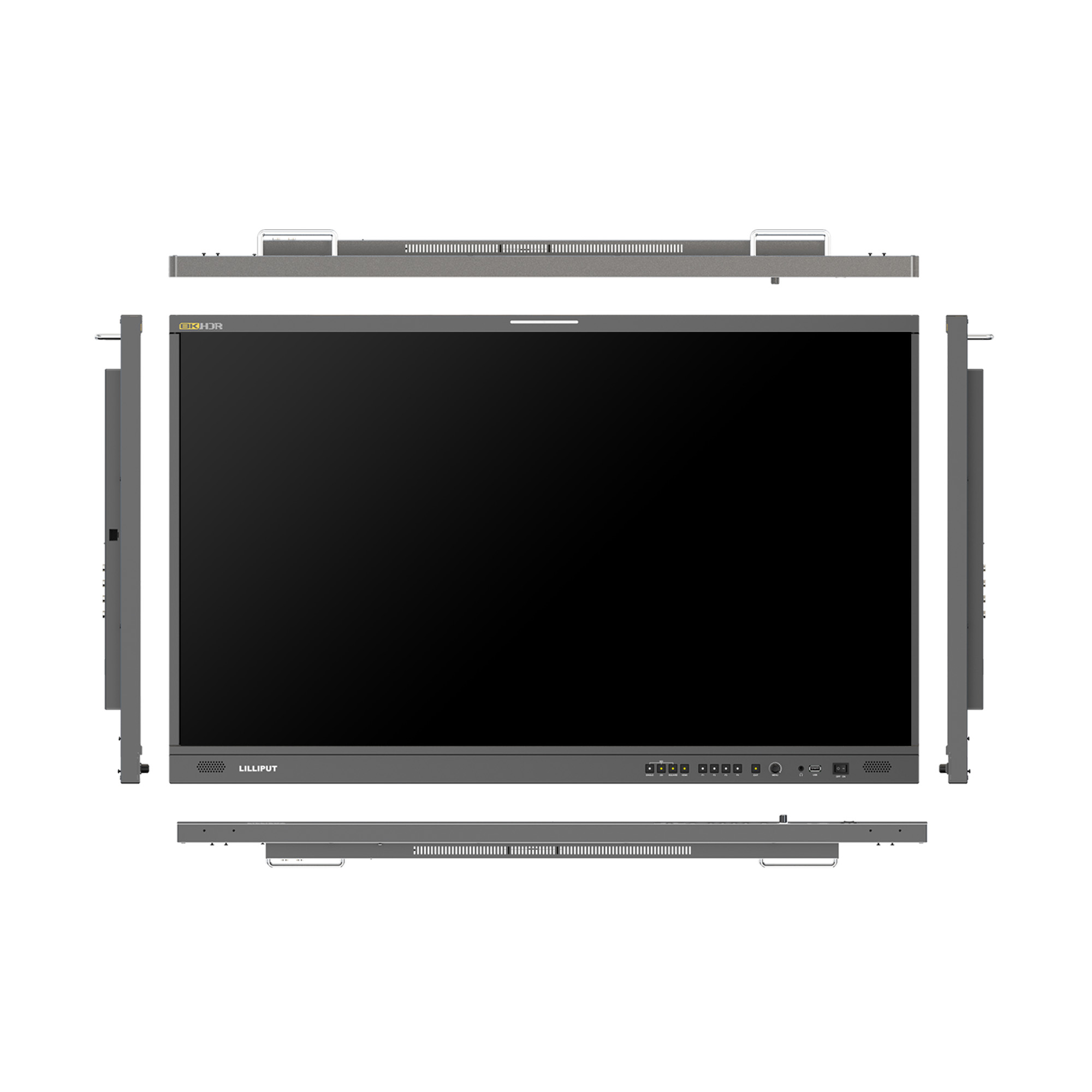

OTHERDimension(LWD)968.5mm × 604.9mm × 48.5mm
Weight14.5kg
