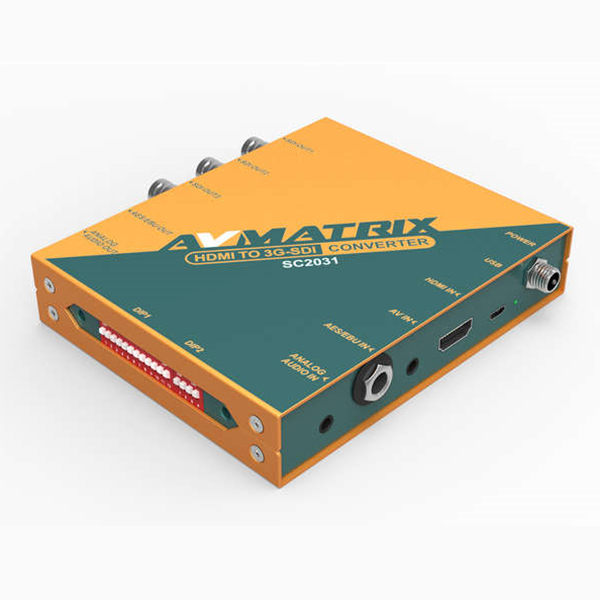

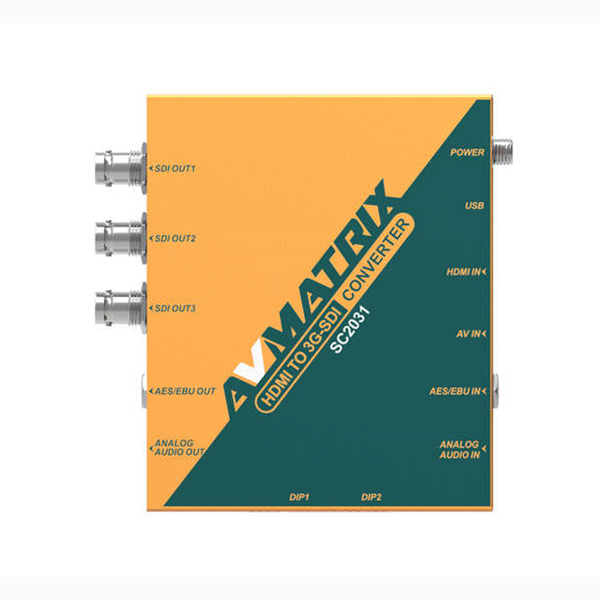

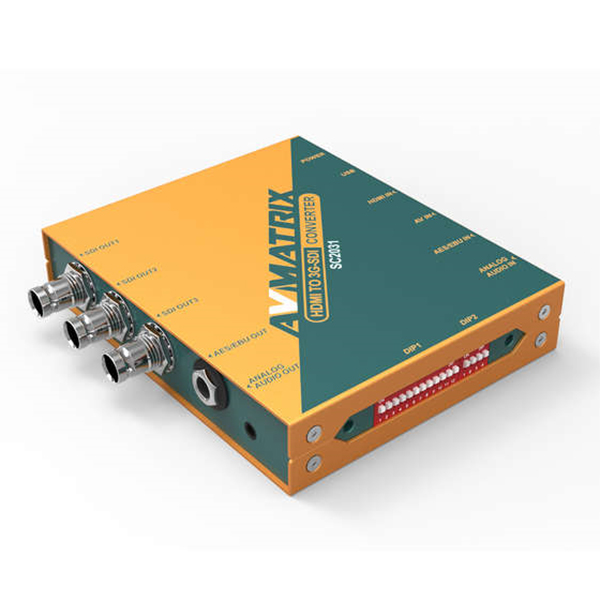

SC2031

HDMI/AV to 3G-SDI Scaling Converter

The Mini SC2031 is a Pocket-size broadcast Converter,
it converts HDMI input signal to dual SDI signal.
it is very convenient for users with the full size SDI and HDMI connectors.
- HDMI/AV to 3G-SDI Scaling Converter
- Size : 125.5 x 104 x 24.5mm

Features



  • Input: HDMI×1, AV×1, AES/EBU×1,analog audio×1
  • Output: 3G-SDI×3, AES/EBU×1, analog audio×1
  • Up/down scaling and frame rate conversion
  • AES/EBU or analog audio Embedding & De-embedding
  • Input signal automatic detection and configuration
  • LED indicators for power and signal lock
  • Control easily via the DIP switches
  • Remote control for PC via USB
  • Threaded locking power connector



Up/down Scaling and Frame Rate Conversion


SC2031 features converting HDMI or AV signals to SDI signal. And the format of output can realize pass through or up/down scaling and frame rate conversion. It can support up to 1080p 60Hz.

Audio Embedding and De-embedding


It features embedding an external AES/EBU or analog audio or HDMI embedded audio to SDI output. Also it can de-embedding audio from SDI input signal to external AES/EBU and analog audio. There is no need for users to purchase custom cables when adopting standard 1/4" (6.3mm) TRS audio jack and 1/8" (3.5mm) audio jack.

Triple SDI Outputs


Transmitting and splitting the input signal to triple SDI outputs for three different connecting devices at the same time.
It supports a long distance and stable transmission without loss of signal quality.

Easy Control over DIP Switches


Adjusting the DIP switches to set the functions by finger, without any tool. It's a smart method to change common settings quickly when outdoor applications. Meanwhile, it also can be remote set by using a software by connecting it with a PC via USB. Besides, the latest software can be upgrades by connecting it with a PC via the USB.
